Specification
Brand : Walfront
BulletPoint : Controller InteliLite NT MRS 16 Aftermarket MRS16 Control Panel Fit For ComAp Gen-set
BulletPoint1 : Support Touch Screen: This 32 bit 3D printing motherboard is supported for TFT 3.5in touch screen(not including). Efficient heat dissipation.
BulletPoint2 : Versatile: You can design your own startup and all the buttons with this 3D printing motherboard kit, and you can customize at least 15 commanding buttons. Supports breakpoint resume, power saving, power failure detection, automatic shutdown and other functions.
BulletPoint3 : Stepper Motor Driver: This 3D printer motherboard kit is with the stepper motor driver which allows no noise, high accuracy chopper algorithm.
BulletPoint4 : 256 Subdivision: The stepper motor driver interpolation unit provides up to 256 subdivisions, enabling sinusoidal control even in systems with limited pulse frequencies.
BulletPoint5 : Storage Card: This 3D printing motherboard kit is available storage card to upgrade and with high speed WiFi module.
ExternallyAssignedProductIdentifier : 7685550443922
IncludedComponents : No
ItemName : 3D Printer Control Board Stepper Motor Driver 32Bit Silent Motherboard Support TFT 3.5in Touch Screen
ItemPackageDimensions_Height : 7 centimeters
ItemPackageDimensions_Length : 22 centimeters
ItemPackageDimensions_Width : 14 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : 3d-printer-controllers
Manufacturer : WALFRONT
ModelName : Gearwellgw6y38fsup
ModelNumber : WALFRONTx8fh94rb67
NumberOfItems : 1
PartNumber : WALFRONTx8fh94rb67
ProductDescription : Specification:

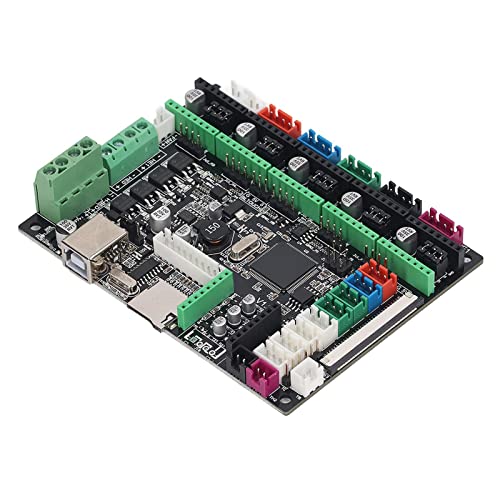

Item Type: 3D Printer Control Motherboard
Opening Size: Approx. 102 x 76mm / 4 x 3in
External Size: Approx. 110 x 84mm / 4.3 x 3.3in
Processor: For STM32
Input Voltage: 12V-24V 5A-15A
Stepper Driver: 4988, 8825, 8729, 2100, 2208.
Temperature Sensor Interface: For NTC100K, 31855
Print File Format: G Coding
Support Machine Building: For XYZ, for Kossel, for Corexy
Recommended Software: For Cura, For Simplify3d, For Pronterface, For Prpetier Host
Firmware Upgrade: Storage Card

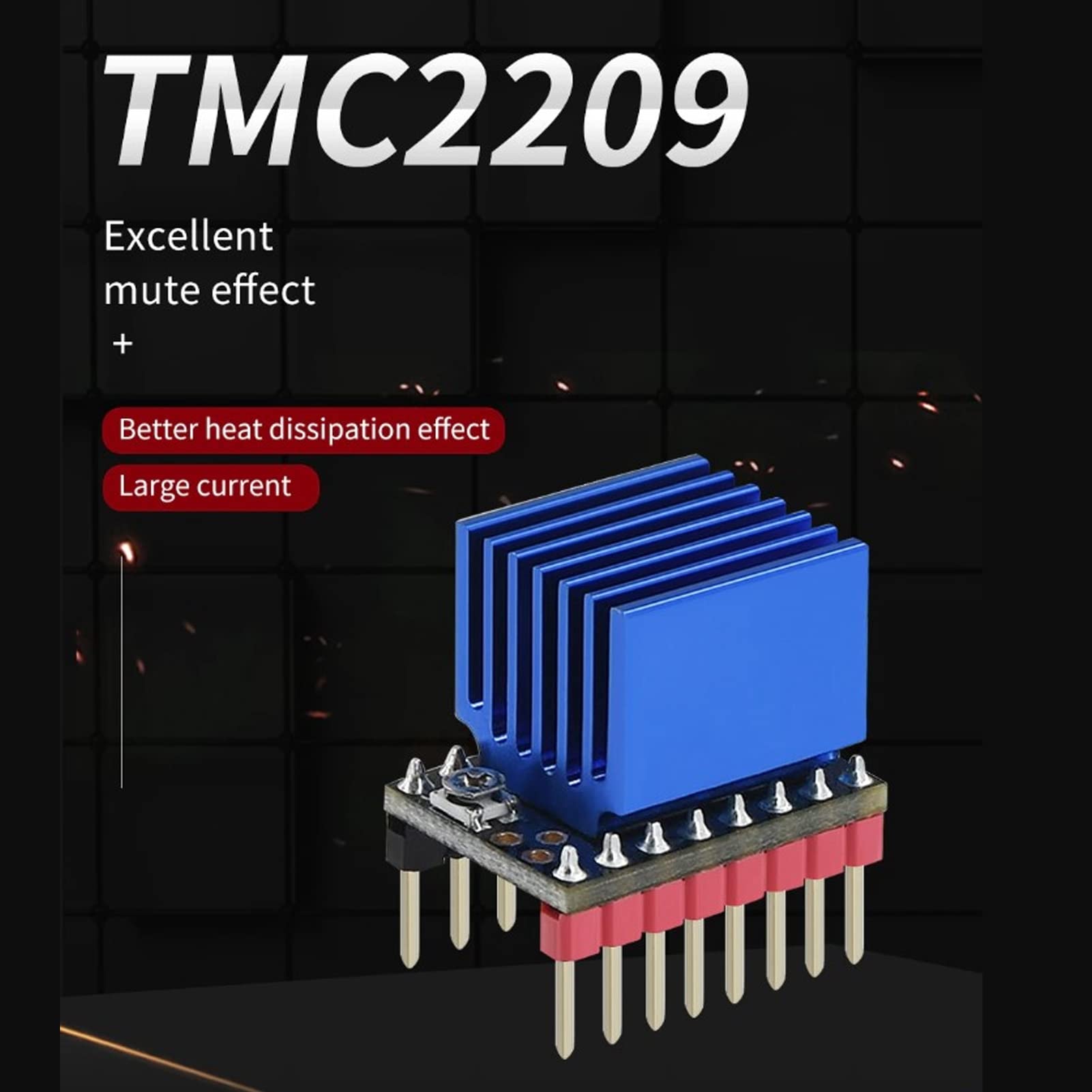

Stepper Motor Driver
Model: TMC2209 V2.0
Material: PCB, Aluminum Alloy
Micro Step: 256 Subdivision
Drive Current: 2.8A
Configuration: STEP Or DIR Or UART
Default Factory Current: 0.85A
Load Drive Motor Voltage: 5.5-28V
IC Logic Working Voltage: 3-5V
Application: All Kinds Of 3D Main Control Board
Recommended Current: No More Than 1.7A

How to Use:
Use according to the diagram.

Package List:
1 x Motherboard
1 x Connecting Cable
5 x Driver
5 x Heat Sink

Notice:
Stepper Motor Driver Notes:
1. For Verf measure the voltage of for Gnd and potentiometer.
2. Please do not connect the motor when measuring the voltage, otherwise it is easy to burn out the driver.
3. Please connect the power supply when measuring the voltage, do not only connect the USB power supply.
4. Please pay attention to the direction, please do not insert by mistake!
ProductSiteLaunchDate : 2025-02-24T17:03:48.789Z
Size : 6.35mm
UnspscCode : 43201513
