Specification
Brand : Fafeicy
BulletPoint1 : [AMPLE STORAGE] - Built-in 8M byte Flash storage chip and 520KBytes of memory for effective in various application scenarios.
BulletPoint2 : [USB FIRMWARE UPDATE] - Easily update firmware through the USB data cable and control the 3D printer via .
BulletPoint3 : [POWERFUL PERFORMANCE] - Powered by the ESP32-DOWD-V3 chip with a 32-bit LX6 microprocessor, supports clock frequency up to 240MHz, and integrated with andmodules.
BulletPoint4 : [MULTIPLE SCREEN SUPPORT] - Compatible with regular LCD2004 and 12864 screens, as well as MKS MINI12864 V3 and MKS TFT serial port screens.
BulletPoint5 : [OPTIMIZED DRIVER AND HEAT SINK] - Equipped with 5pcs TMC2209 stepper motor drivers and heat sinks to improve performance and prevent overheating.
ExternallyAssignedProductIdentifier : 5602528197535
IncludedComponents : No
ItemName : 3D Printer Motherboard, Control Board with TMC5160 TMC2208 TMC2130, TFT28 TFT32 TFT35 12864LCD,, 3D Printer Controllers
ItemPackageDimensions_Height : 7 centimeters
ItemPackageDimensions_Length : 22 centimeters
ItemPackageDimensions_Width : 14 centimeters
ItemTypeKeyword : 3d-printer-controllers
Manufacturer : Fafeicy
ModelNumber : Fafeicymaxktzdh4n
NumberOfItems : 1
PartNumber : Fafeicymaxktzdh4n
ProductDescription : Specification:

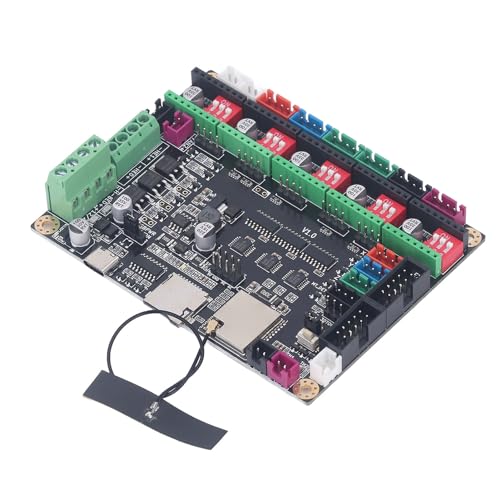

Item Type: 3D Printer Control Board
Material: PCB
Motherboard Model: For MKS TinyBee V1.0
MCU: For ESP32-WROOM-32U
MCU Frequency: 240MHz
Memory: 520K
Input Power Supply: DC12-24V Heater: 2 Heater Ends + 1 Heater Bed
Temperature ADC: 3 NTC100K: TH1, TB, TH2 (requires jumper selection)
Motor Interface: 5 Axes 6 Motor Interface (dual Z axes parallel connection)
Step Drive Mode: STEP DIR Mode
Drive : Support External High Current Drive
Subdivision Settings: Dial Switch

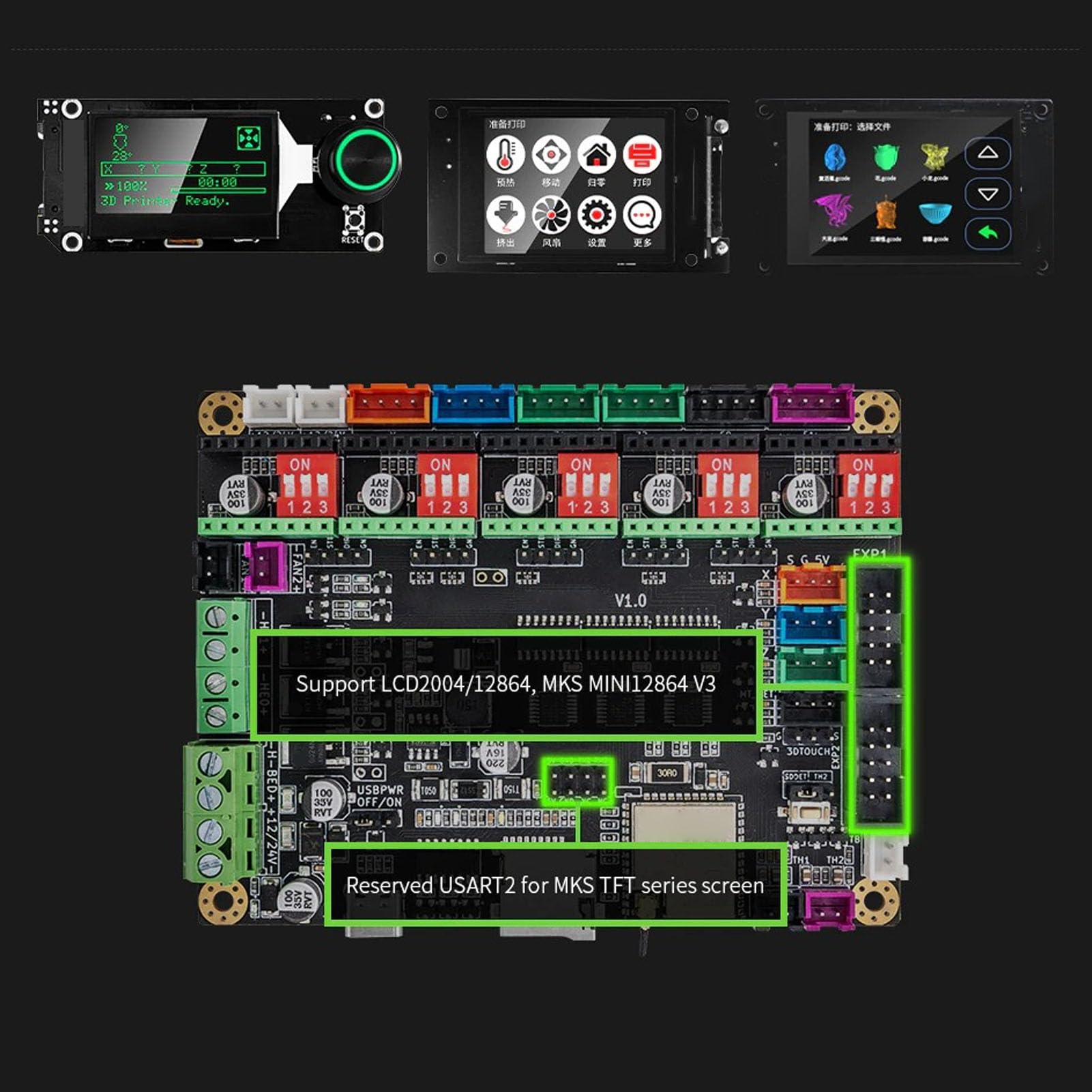

LCD Interface: Supports LCD 2004/12864, MKS MINI12864 V3
Serial Port: MKS TFT series screen reserved USART2
End Stop: X, Y, Z, MT DET
3D Touch Control: Support
Power : Support power reverse and powerprotection
Motor Back Electromotive Force: Can be absorbed by phase sequence to stepper drivers
Firmware: For Marlin2.0.X
Firmware Update Method: USB Drive Upload
Micro Memory Card: Not Included
TMC2209 Driver Parameter:
Maximum Output Current: 2.5A
Default Current: 1.25A
Micro Step: Up to 1/256
Configuration: STEP DIR or UART
Load Driving Voltage Range: 5.5-28V
IC Logic Working Voltage: 3.3V/5V

How to Use:
Use according to the selling point map.

Package List:
1 x Control Board
1 x USB Data Cable
5 x Stepper Motor Driver
5 x Heat Sink
