Specification
Brand : RTELLIGENT
BulletPoint1 : Bipolar Stepper Driver: 24~100V DC or 18~80V AC power supply, 2.4A~7.2A output current peak (8 current modes optional). Support PUL/DIR modes. Support offline. Size: 110*79*35mm
BulletPoint2 : High Precision: This step motor driver integrated with the micro-stepping technology and the auto tuning of power-up parameters.
BulletPoint3 : Advantage: Low noise, low vibration, low heating and high-speed high torque output
BulletPoint4 : This R86MINI stepper motor driver can control almost all of 2 phase nema 34 stepper motors 86mm flange whose current is under 7.2A. Typically used for X-Y-Z tables, 3D printer, laser cutter, engraving machine, etc.
BulletPoint5 : Warranty: Our step driver CNC controller has 12 months warranty. CE, ISO Certificated
Color : Black
ExternallyAssignedProductIdentifier : 7435306010041
ExternallyAssignedProductIdentifier1 : 0791590889228
ExternallyAssignedProductIdentifier2 : 791590889228

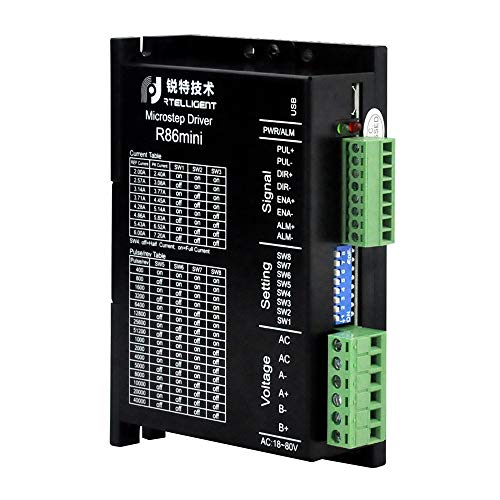

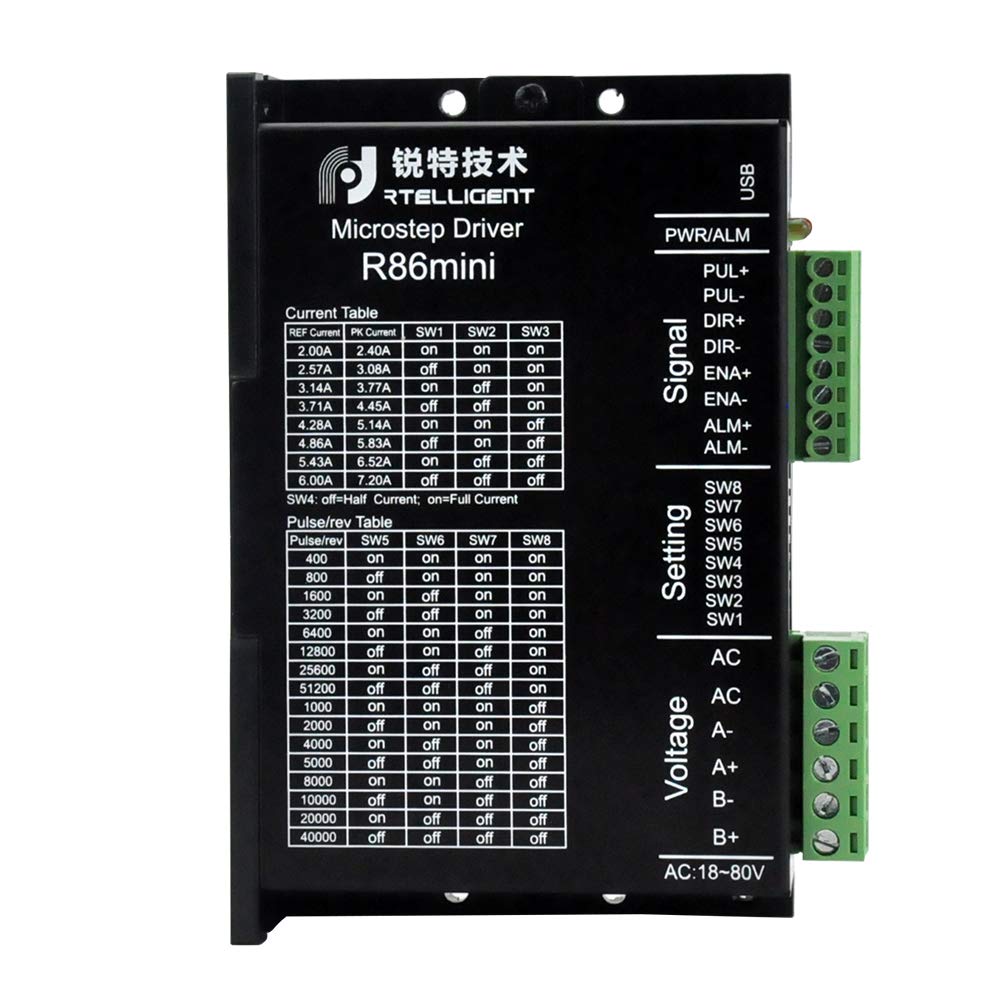

ItemName : RTELLIGENT Stepper Motor Driver CNC Controller 2 Phase 2.4A~7.2A 24-100VDC or 18-80VAC with USB Debugging Port for Nema 34 Motor
ItemPackageDimensions_Height : 9.3 centimeters
ItemPackageDimensions_Length : 20 centimeters
ItemPackageDimensions_Width : 15.5 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : 3d-printer-controllers
Manufacturer : RTELLIGENT
PartNumber : R86MINI
ProductDescription : The Rtelligent R86MINI It integrates intelligent motion controller functions and built-in S-shaped acceleration and deceleration commands. Through the USB port, it is convenient to configure the driver and expand the application of the driver.

Main Features:
▶Communication: USB to COM
▶8 adjustable current of 2.4-7.2A setting via DIP switches
▶16 optional micro-step resolutions of 400-51200 setting via DIP switches
▶PUL+DIR, CW+CCW pulse mode optional
▶With phase loss alarm function and Half-current function
▶Digital IO port: 3 photoelectric isolation digital signal input, high level can directly receive 24V DC level; 1 photoelectric isolated digital signal output, maximum withstand voltage 30V, maximum input or pull-out current 50mA.

Specifications:
▶ Output Current: 2.4-7.2A (Peak)
▶ Working Voltage: 24-100VDC or 18-80VAC
▶ Signal Level: 3.3-24V
▶ Dimension: 110*79*35mm
▶ Weight: 500g

Wide Application:
The stepper driver is widely used in stage lighting control, carving machine, laser photocopying, engraving machine, CNC router machine, medical instrument, 3D printing, smart toys, robotic arms, visual localization, automatic assembly equipment, etc.

Safety Guaranteed:
This stepping driver has automatic semi-current lock, over-voltage, under-voltage,over-current protection, over-heat and error connect protection

Package Contents:
1 x R86MINI Stepper Driver Motor Controller
1 x User Manual
