Specification
Brand : Walfront
BulletPoint1 : For Control Board: Upgrade version with more circuits and function interfaces. Added independent DC5V for Pi and reserved for Robin WIFl interface for for RRF firmware.
BulletPoint2 : 8 Axes Control Board: Supports for Voron, for Marlin2.0.x, and for Klipper hardware, compatible with for Mini12864 LCD screen. Enables U disk printing and DFU mode setting through Booto button.
BulletPoint3 : DIY Support: For Makerbase 8 for Voron large 3D printers with 8 stepper drivers and 9 motor interfaces. Compatible with various motor drivers for flexible DIY upgrades. For motherboards can be used on for Voron 2.4 Ender 3, for Ender 3 V2 and for Ender 3 pro, please update the firmware on for Github first.
BulletPoint4 : Working Parameters: DC12‑24V Input. Integrated SPI communication micro storage card and reserved SPI interface. 2 MP1584EN outputs DC12V (for fan) and DC5V.
BulletPoint5 : For Mini 12864 V3.0 Display: Storage card slot display with RGB backlit. Supports various firmwares and onboard encoder for parameter adjustment and file selection printing.
Color : Black
CompatibleDevices : Printer
GraphicsCardInterface : integrated
IncludedComponents : No
ItemName : Upgrade 8 Axes Control Board for for Mini 12864 V3.0 Display for Robin Nano V2 for Nano V3 for SgenlV1 V2 DC12‑24V
ItemPackageDimensions_Height : 7 centimeters
ItemPackageDimensions_Length : 22 centimeters
ItemPackageDimensions_Width : 14 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : 3d-printer-controllers
Manufacturer : WALFRONT
Material : PCB
MemoryClockSpeed : 240 MHz
ModelName : Ywbl-wht3e2vzrskn
ModelNumber : WALFRONTesa6bdutgc
NumberOfItems : 1
OperatingTemperature : 25 degrees_celsius
PartNumber : WALFRONTesa6bdutgc
ProductDescription : Specification:
Item Type: for Motherboard
Material: PCB
Input Voltage: DC12-24V, Output Voltage: DC12V, DC5V, DC3.3V
3D Touch: Support
Hardware: Support for 2.0.X, for Klipper
MCU: STM32F407VET6, 168MHz, 512KB Flash, 192KB
External Stepper : Yes
MOS Circuit : Resistor and for Schottky Diode
Limit Circuit : Resistor and for Schottky Diode
Temperature Circuit : Resistor and for Schottky Diode
Motor Back EMF: Absorbed by phase sequence resistance
PA13 Pin: Used for MT DET
PC5 Pin: Used for Neo
for E4 EN : Same as E0 EN=PB6
For Robin Interface: Yes
for MAXIMUM31865 Interface: Yes, same as E4 axes
for Raspberry Power: Independent DC5V 3A power supply
Limit Switch Power: Only Z and can choose 5V or VIN, other limit switches are 5V

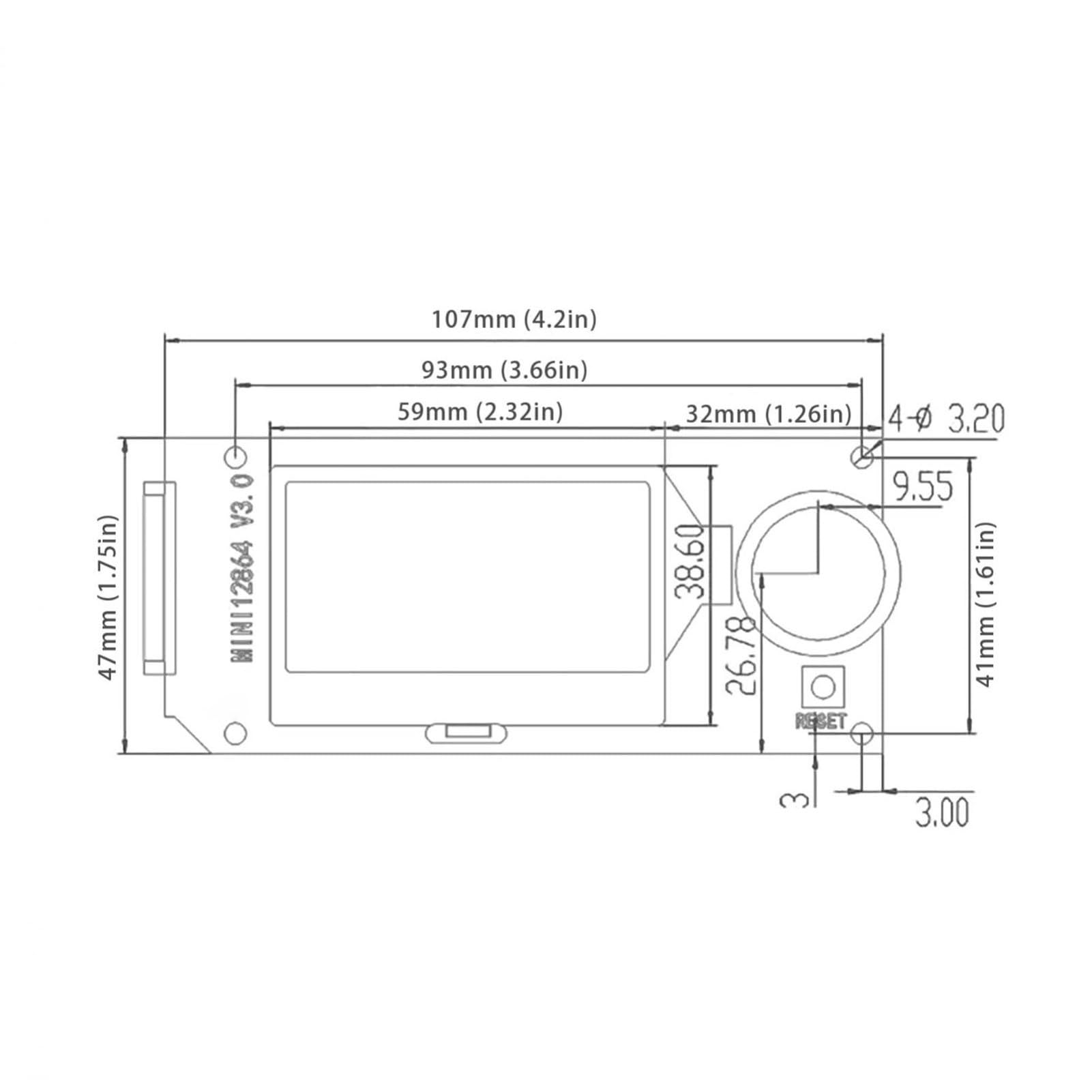

for Mini12864 V3.0 LCD Graphic Smart Display
Mode: for Mini 12864 V3
Material: PCB
Logic Level: Support 3.3V, 5V logic input
Backlit Mode: for Neo RGB adjustable backlit
Backlit Adjustment: Light slightly preset (for )
Firmware: for 2.0, for Klipper
Compatible Mainboards: for Robin Nano V2, for Nano V3, for SgenlV1, V2, for Genl, for Robin E3

How to Use:
Follow the instructions in the selling points image.

Package List:
1 x Control Board
1 x USB Data Cable
38 x Jumper Hat(38 by default, more for )
1 x Display Screen
2 x 10pin Flat Cable Color


ProductSiteLaunchDate : 2024-04-16T17:16:31.693Z
SupplierDeclaredDgHzRegulation : not_applicable
SystemBusStandardSupported : SATA 3
UnspscCode : 43211900
Voltage : 12 volts_of_direct_current
