Specification
Brand : WGFOIP
BulletPoint : Model: Regular
BulletPoint1 : High compatibility ----- Specially designed for CNC 3D printers, this expansion board highly supports GRBL 0.8; rendering it compatible with various 3D printing software.
BulletPoint2 : Sturdy Construction ----- Built with solid components, the CNC shield v3 expansion board ensures optimal performance and durability, providing long-lasting use with your CNC 3D printer.
BulletPoint3 : Complete Control ----- With PWM Spindle and direction pin, you can effortlessly control speed and direction to complete your engraving tasks with absolute precision.
BulletPoint4 : Plug and Play ----- No extraordinary technical expertise required; Simply connect it with your 3D printer, and it's ready to deliver very high precision engraving.
BulletPoint5 : Premium A4988 driver included ----- Comes with an A4988 driver module which is a crucial component for stepping motor driving in your 3D printer.
Color : As Shown
ExternallyAssignedProductIdentifier : 7631570934780
FinishType : Chrome
IncludedComponents : Finishing Tools
ItemDisplayDimensions_Height : 1.14 centimeters
ItemDisplayDimensions_Length : 1.38 centimeters
ItemDisplayDimensions_Width : 1.14 centimeters
ItemForm : Strip
ItemName : CNC Shield Expansion Board, A4988 V3 GRBL 0.8 Engraver Unit. Open Source Firmware Pwm Spindle and Direction Pin for CNC 3D Printer
ItemPackageDimensions_Height : 4 centimeters
ItemPackageDimensions_Length : 10 centimeters
ItemPackageDimensions_Width : 8 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : 3d-printer-interface-and-driver-modules
Manufacturer : WGFOIP
Material : Copper
ModelName : WGFOIP73bsd0xhmp
ModelNumber : WGFOIP73bsd0xhmp
NumberOfItems : 1
PartNumber : WGFOIP73bsd0xhmp
ProductDescription : 1. Use removable A4988 or DRV8825 compatible stepping driver
2. The extension board can be used for engraving machine or 3D printer driver
3. Compatible with GRBL 0.8. Open‑source firmware , converting G code command into stepping signal
4. PWM spindle and direction pin, 4 shaft support (X, Y, Z, A ‑ you can copy X, Y, Z or use pin D12 and D13 customize firmware perform complete shaft 4)
5. Compact design, stepping motor can pin connectors or be soldered

Specification:
Features:
Use removable A4988 or DRV8825 compatible stepping driver.
The extension board can be used for engraving machine or 3D printer driver.
Compatible with GRBL 0.8. Open-source firmware, converting G code command into stepping signal.
PWM spindle and direction pin, 4 shaft support (X, Y, Z, A - you can copy X, Y, Z or use pin D12 and D13 customize firmware perform complete shaft 4).
Compact design, stepping motor can pin connectors or be soldered.
This is a set of disassembled part, and you need basic soldering skills to solder them together.
Specifications:
CNC Expansion Board:
Version: V3.0
Color: Red
Size: 68 x 53 x 18mm / 2.67 x 2.08 x 0.7
Voltage: DC 12V to 36V (only DRV8825 driver can handle up to 36V, so please consider voltage for power supply)

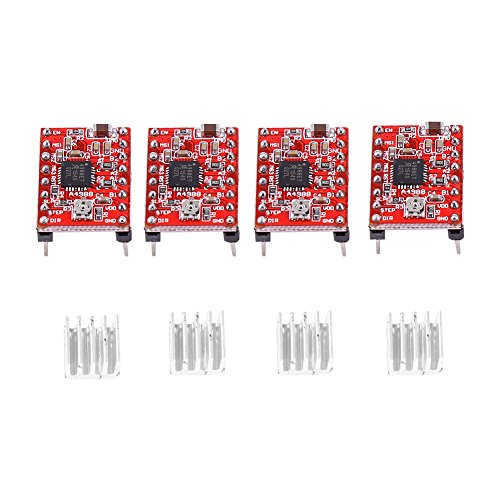

4pcs A4988 Driver:
Color: Red
Size: 20 x 15mm / 0.78 x 0.59
Thermal Shutdown Circuit: Yes
Cross Current Protection: Yes
Ground Fault Protection: Yes
Short Circuit Protection: Yes
Compatible Logic Voltage: 3.3V and 5V
Five Step Modes: Full, 1/2, 1/4, 1/8 and 1/16
Mix with slow current attenuation model.
Internal UVLO and low RDS (on) output.
Automatic current attenuation mode Detection/Select.
Phase-in rectifier, low power consumption.
Warning: Connecting or disconnecting stepping motor while driver is powered on might damage driver.
4pcs Heat Sinks:
Size: 8 x 8mm / 0.31 x 0.31
Color: White
Package Includes:
1 x V3
ProductSiteLaunchDate : 2024-05-15T08:54:00.434Z
Size : 3.5X2.9cm
Style : centimeter
SupplierDeclaredDgHzRegulation : not_applicable
UnitCount : 1
Voltage : 845 volts
WaterResistanceLevel : waterproof
