Specification
Brand : Sonew
BulletPoint1 : The DRV8871 device is a brushed-DC motor driver for printers, appliances, industrial equipment, and other small machines.
BulletPoint2 : Two logic inputs control the H-bridge driver, which consists of four N-channel MOSFETs that can control motors bidirectionally with up to 3.6-A current.
BulletPoint3 : This novel solution uses a standard low-cost, low-power resistor to set the current threshold.
BulletPoint4 : The DRV8871 device has advanced currentregulation circuitry that does not use an analog voltage reference or external sense resistor.
BulletPoint5 : When the fault condition is removed, the device automatically resumes normal .
Capacity : 12 ounces
CareInstructions : Hand Wash Only
Color : White
Horsepower : 0.4 watts
IncludedComponents : No

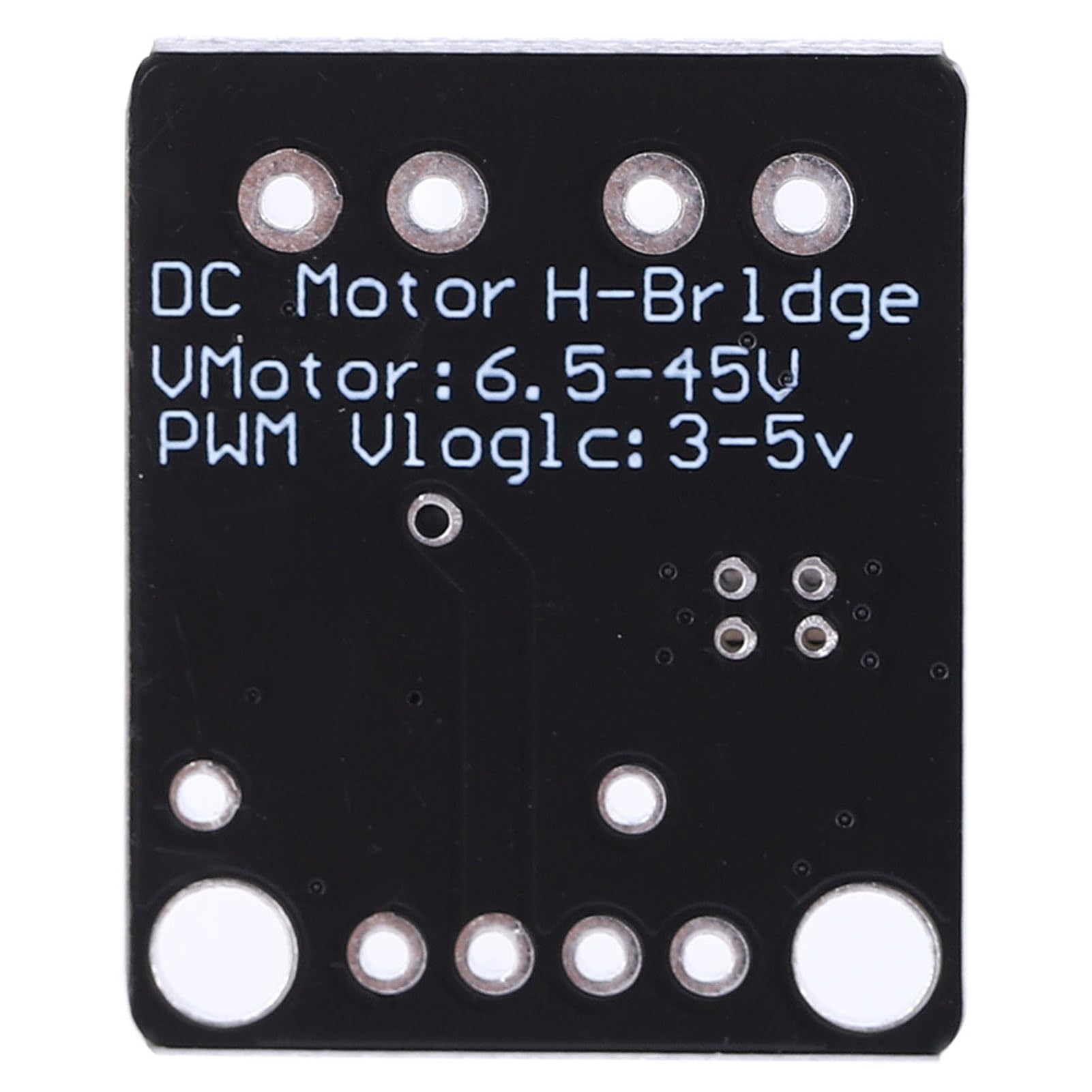

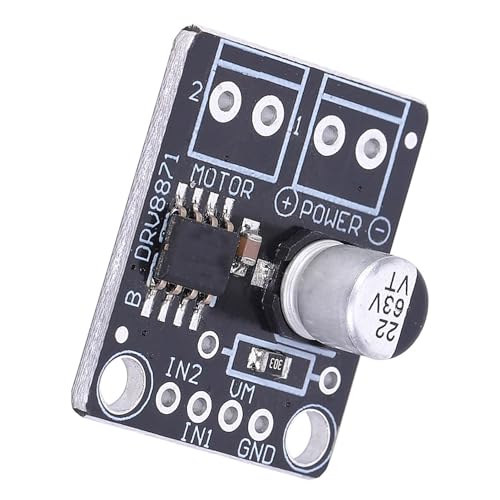

ItemName : DC Motor Driver, PWM Control Module, PWM Interface DRV8871 for Printer Appliances
ItemPackageDimensions_Height : 1 centimeters
ItemPackageDimensions_Length : 8 centimeters
ItemPackageDimensions_Width : 6 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : 3d-printer-interface-and-driver-modules
Manufacturer : Sonew
Material : Stainless Steel
ModelName : NIZUUONEfhq5xnkesa
ModelNumber : Sonew9f8ongu2c5
NumberOfBoxes : 1
NumberOfItems : 1
OccasionType1 : Birthday
OccasionType2 : Christmas
OccasionType3 : New Year
PartNumber : Sonew9f8ongu2c5
ProductDescription : 1. The DRV8871 device is a brushed-DC motor driver for printers, appliances, industrial equipment, and other small machines.
2. Two logic inputs control the H-bridge driver, which consists of four N-channel MOSFETs that can control motors bidirectionally with up to 3.6-A current.
3. The inputs can be pulsewidth modulated (PWM) to control motor speed, using a choice of current-decay modes.
4. The DRV8871 device has advanced currentregulation circuitry that does not use an analog voltage reference or external sense resistor.
5. This novel solution uses a standard low-cost, low-power resistor to set the current threshold.
6. The ability to limit current to a known level can significantly reduce the system power requirements and bulk capacitance needed to maintain stable voltage, especially for motor startup and stall conditions.
7. The device is fully protected from faults and short circuits, including undervoltage (UVLO), overcurrent (OCP), and overtemperature (TSD).
8. When the fault condition is removed, the device automatically resumes normal .

Specification:
Condition: Brand NewItem Type: DC Motor Driver
Material: Metal
Color: BlackH-Bridge Motor Driver
– Drives One DC Motor, One Winding of a Stepper Motor, or Other Loads
Wide 6.5-V to 45-V Operating Voltage
565-mΩ Typical RDS(on) (HS + LS)
3.6-A Current Drive
PWM Control Interface
Current Regulation Without a Sense Resistor
Low-Power Sleep Mode
Small Package and Footprint:
– 8-Pin HSOP With PowerPAD
– 4.9 × 6 mm / 0.19 x 0.24in
Integrated Features:
– VM Undervoltage Lockout (UVLO)
– Overcurrent (OCP)
– Thermal Shutdown (TSD)
– Automatic Fault Recovery
Applications:
Printers
Appliances
Industrial Equipment
Other Mechatronic
ProductSiteLaunchDate : 2024-09-26T13:49:08.965Z
Size : 12oz
Style : Classic
SupplierDeclaredDgHzRegulation : unknown
SupplierDeclaredHasProductIdentifierExemption : 1
UnitCount : 1
UnspscCode : 26111700
Voltage : 24 volts
WarrantyDescription : Manufacturer warranty for 90 day
