Specification
Brand : FLYXF
BulletPoint1 : 8 Transistors output (ULN2803 output), the driving is equal to the supply The driving current of single channel is 200MA, and the driving current of all channels is 800MA.
BulletPoint2 : 8 channels can also be used as PWM output. Among 1-6 channels are Low-Speed PWM channels (output parameters are expressed by Period/Turn-On-Time), Turn-On-Time 0-6553.4 seconds (not greater than Cycle time).7-8 channels are High-Speed PWM channels (output parameters are expressed by Frequency/Duty-Cycle), output Frequency 1-20000Hz.
BulletPoint3 : By modifying the 485 address, up to 247 modules can be cascaded for use (please use R485 for more than 16 modules)
BulletPoint4 : MODBUS RTU Command function code: Write 05/06/15/16, Read 01/03
BulletPoint5 : 8 channels can be used as ordinary switches output, 05/15 function code to write data, or use 06/16 function code to operate the 0X0080 register.
Color : A
ExternallyAssignedProductIdentifier : 7673640197206

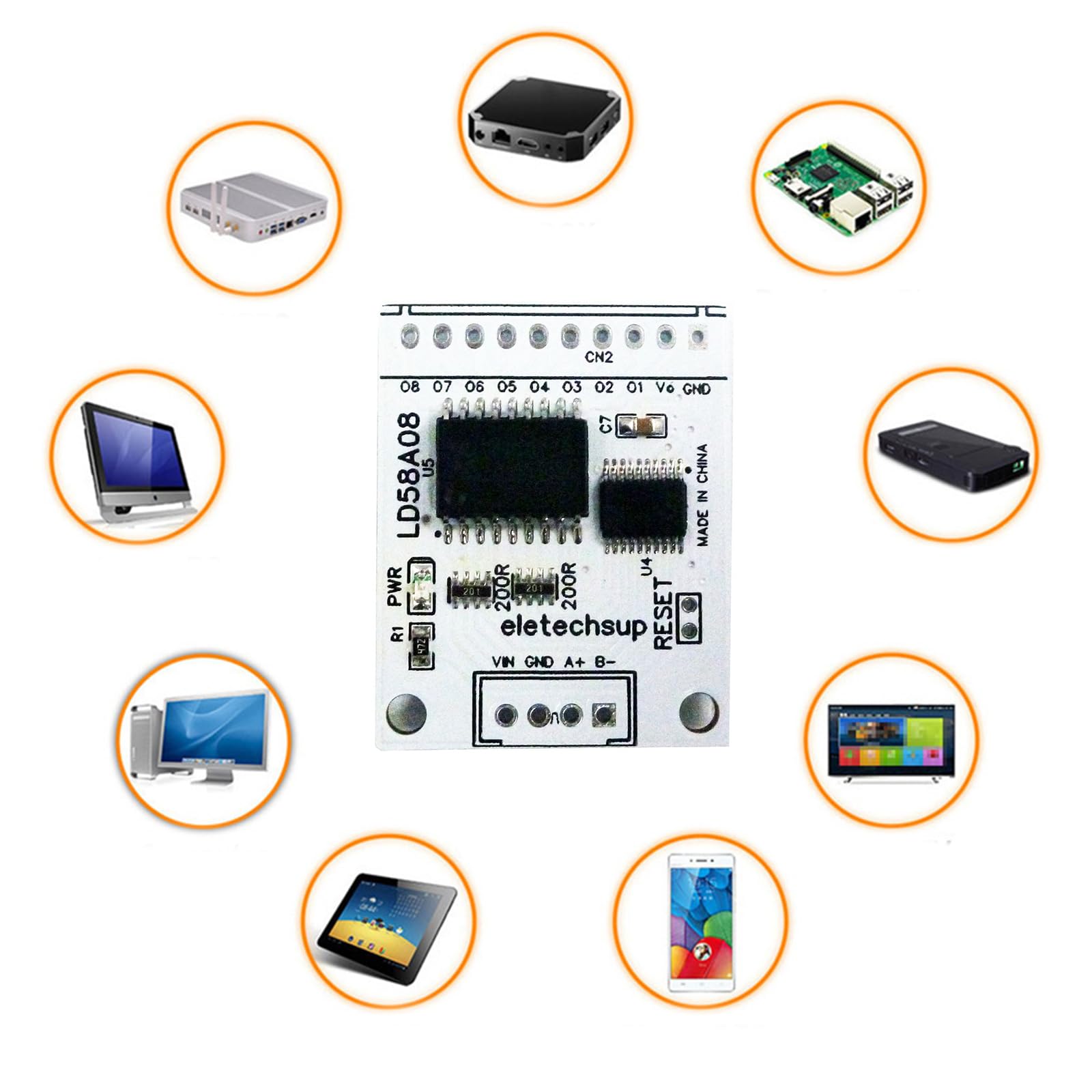

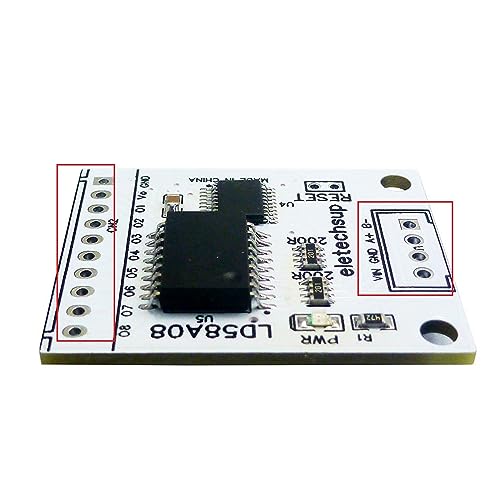

ItemName : FLYXF 8ch RS485 Modbus RTU DO/PWM Output Multifunction MOS Driver for Multilayer Transistors Output Driver Modules
ItemPackageQuantity : 1
ItemTypeKeyword : 3d-printer-interface-and-driver-modules
Manufacturer : FLYXF
Material : PCB
NumberOfItems : 1
PartNumber : FLYXF
ProductDescription : 8ch RS485 Modbus RTU DO/PWM Output Multifunction MOS Driver For Multilayer Transistors Output Driver Modules

Features:
and
MODBUS RTU Command function code: Write 05/06/15/16, Read 01/03
By modifying the 485 address, up to 247 modules can be cascaded for use (please use R485 for more than 16 modules)
8 Transistors output (ULN2803 output), the driving is equal to the supply The driving current of single channel is 200MA, and the driving current of all channels is 800MA.
8 channels can be used as ordinary switches output, 05/15 function code to write data, or use 06/16 function code to operate the 0X0080 register.
8 channels can also be used as PWM output. Among 1-6 channels are Low-Speed PWM channels (output parameters are expressed by Period/Turn-On-Time), Turn-On-Time 0-6553.4 seconds (not greater than Cycle time).7-8 channels are High-Speed PWM channels (output parameters are expressed by Frequency/Duty-Cycle), output Frequency 1-20000Hz.

Specifications:
ABS
Type Without Needle/With Needle
Supply 6.5-25V.
Working current: 10-12MA (without any load)
BaudRate: 1200 2400 4800 9600 (default) 19200 38400
Parity: None, Even Parity, Odd Parity
Length:Approx.35mm/1.38inches

Package Includes:
1x 8ch RS485 Modbus Modules

Note:
1.Please allow 1-2cm errors due to manual measurement, make sure that you do not mind before you order.
2.Due to the difference between different monitors, the picture may not reflect the actual color of the item.
ProductSiteLaunchDate : 2025-02-18T09:37:45.000Z
Size : Dimensions as shown
UnspscCode : 43201400
