Specification
AgeRangeDescription : adult
Brand : ANGGREK
BulletPoint1 : Ultra Quiet: This module allows noiseless, Precision Machined（精密加工） chopping algorithms for silent motor movement and silent standstill, making it super quiet during the printing process.
BulletPoint2 : Exquisite Design: Uart mode is supported by applying jumper caps instead of soldering for MKS gen lV2.0, skr1.3 1.4, for MKS sgen l.
BulletPoint3 : Replacement: This driver has all the features of the TMC2208 and is a complete replacement for the TMC2208.
BulletPoint4 : Outstanding Performance: With an RDSon value of 0.2A, the TMC2209 driver has a lower resistively conducted output driver, providing lower power consumption and higher current.
BulletPoint5 : Powerful: This stepper motor driver module has better heat dissipation, supports higher currents and supports sensorless functions.
Color : One Color
ExternallyAssignedProductIdentifier : 7654148988145
ItemName : Stepper Motor Driver, 5 Sets of Low Power Stepper Motor Drivers, Precision Machined（精密加工）, Ultra Quiet, 5.5-28V for Replacement
ItemPackageDimensions_Height : 3 centimeters
ItemPackageDimensions_Length : 16 centimeters
ItemPackageDimensions_Width : 13 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : 3d-printer-interface-and-driver-modules
Manufacturer : ANGGREK
ModelName : TSIOHKBS
ModelNumber : TSIOHKBS
NumberOfBoxes : 1
NumberOfItems : 1
PartNumber : ANGGREKyhnbfrgvq7
ProductDescription : 1. Ultra Quiet: This module allows noiseless, Precision Machined（精密加工） chopping algorithms for silent motor movement and silent standstill, making it super quiet during the printing process.
2. Powerful: This stepper motor driver module has better heat dissipation, supports higher currents and supports sensorless functions.
3. Replacement: This driver has all the features of the TMC2208 and is a complete replacement for the TMC2208.
4. Outstanding Performance: With an RDSon value of 0.2A, the TMC2209 driver has a lower resistively conducted output driver, providing lower power consumption and higher current.
5. Exquisite Design: Uart mode is supported by applying jumper caps instead of soldering for MKS gen lV2.0, skr1.3 1.4, for MKS sgen l.

Spec:
Item Type: Stepper Motor Driver
Material: PCB, aluminum alloy
Model: TMC2209 V2.0
Microsteps: 256 subdivisions
Drive Current: 2.8A
Configuration: STEP, DIR or UART
Default Factory Current: 0.85A
Load Drive Motor Voltage: 5.5-28V
IC Logic Operating Voltage: 3-5V
Product Application: Various 3D main control boards
Recommended Current: No more than 1.7A

How to Use:
Refer to the instructions for use

Package List:

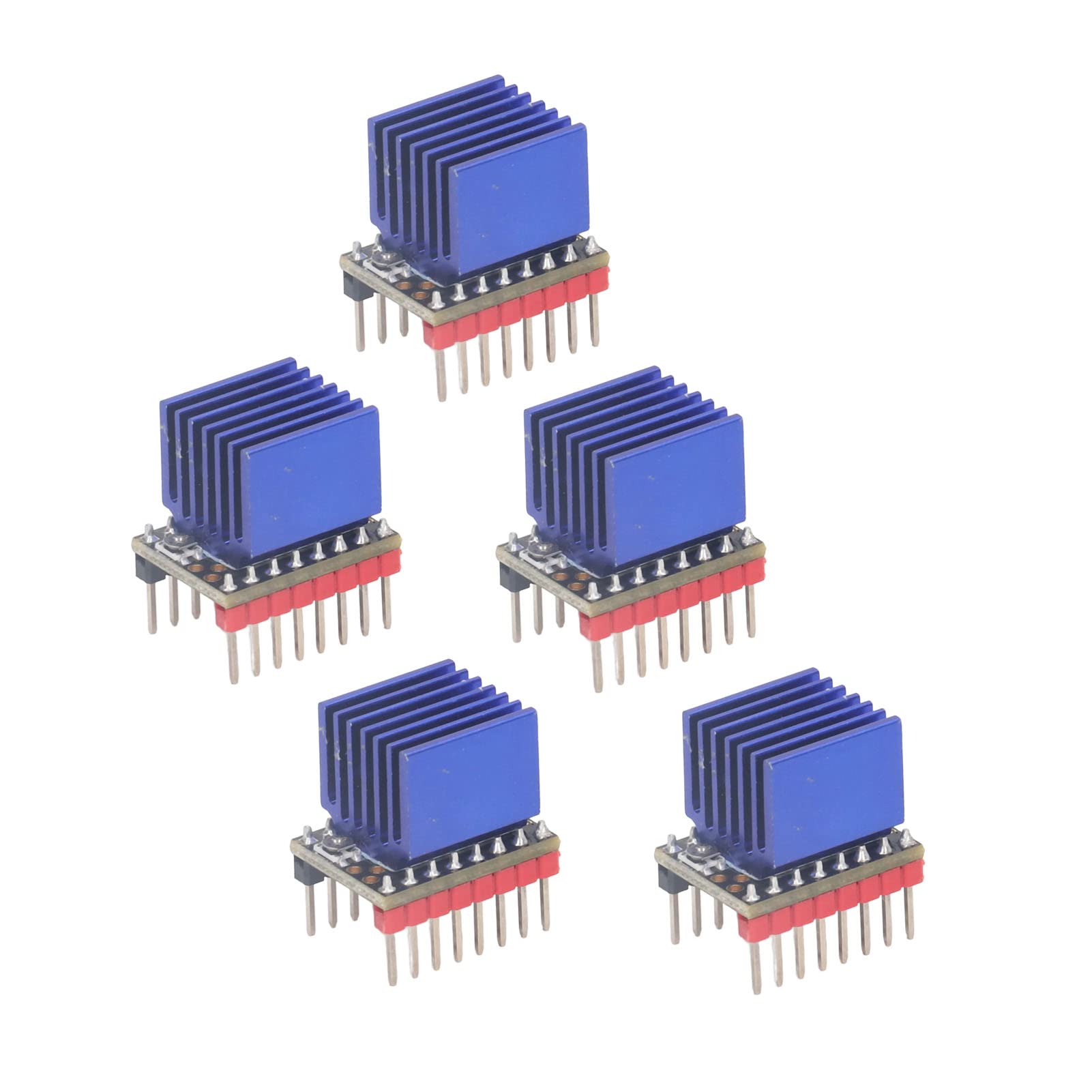

5 x Stepper Motor Driver
5 x Heat Sink

Notice:
1. Verf measures the voltage of Gnd and potentiometer.
2. Please do not connect the motor when measuring the voltage, otherwise the driver will be easily burned out.
3. Please connect the power supply when measuring the voltage, not just the USB power supply.
4. Please pay attention to the direction, please do not insert by mistake!
