Specification
Brand : Longs Motor
BulletPoint1 :

1. Nema 23 Stepper Motor: Nema 23 Stepper Motor Bipolar 112mm Body 12Ncm Torque 4 Lead W 4.2A with 1.8 Step angel for 3D Printer CNC

BulletPoint2 :

2. Stepper Motor Driver: DM542A Stepper Motor Driver 2 Phase 1.0A-4.2A Voltage 18-50VDC

BulletPoint3 :

3. Power Supply: 350W(36VDC/9.7A)

BulletPoint4 :

4. CNC Breakout Board and 1 PC Parallal Cable

BulletPoint5 :

5. Packaging Coming: 4Pcs Nema 23 Stepper Motor with Single Shaft. 4 Pcs Stepper Motor Driver, 2Pcs Power Supply , 1Pcs Breakout Board and Parallel Cable.

ExternallyAssignedProductIdentifier1 : 0711041524768
ExternallyAssignedProductIdentifier2 : 711041524768
Horsepower : 350 watts
ItemName : 4 Axis Nema 23 Stepper Motor + Stepper Motor Diver 4.2A 24-50VDC Peak +350W Power Supply36VDC/9.7A with 1 Breakout Board and Parallel Cable for Professional 3D Printer
ItemTypeKeyword : 3d-printer-motors
Manufacturer : Longs Motor
Material : lead
ModelNumber : 23HS9442 DM542A 350W-36V DB25

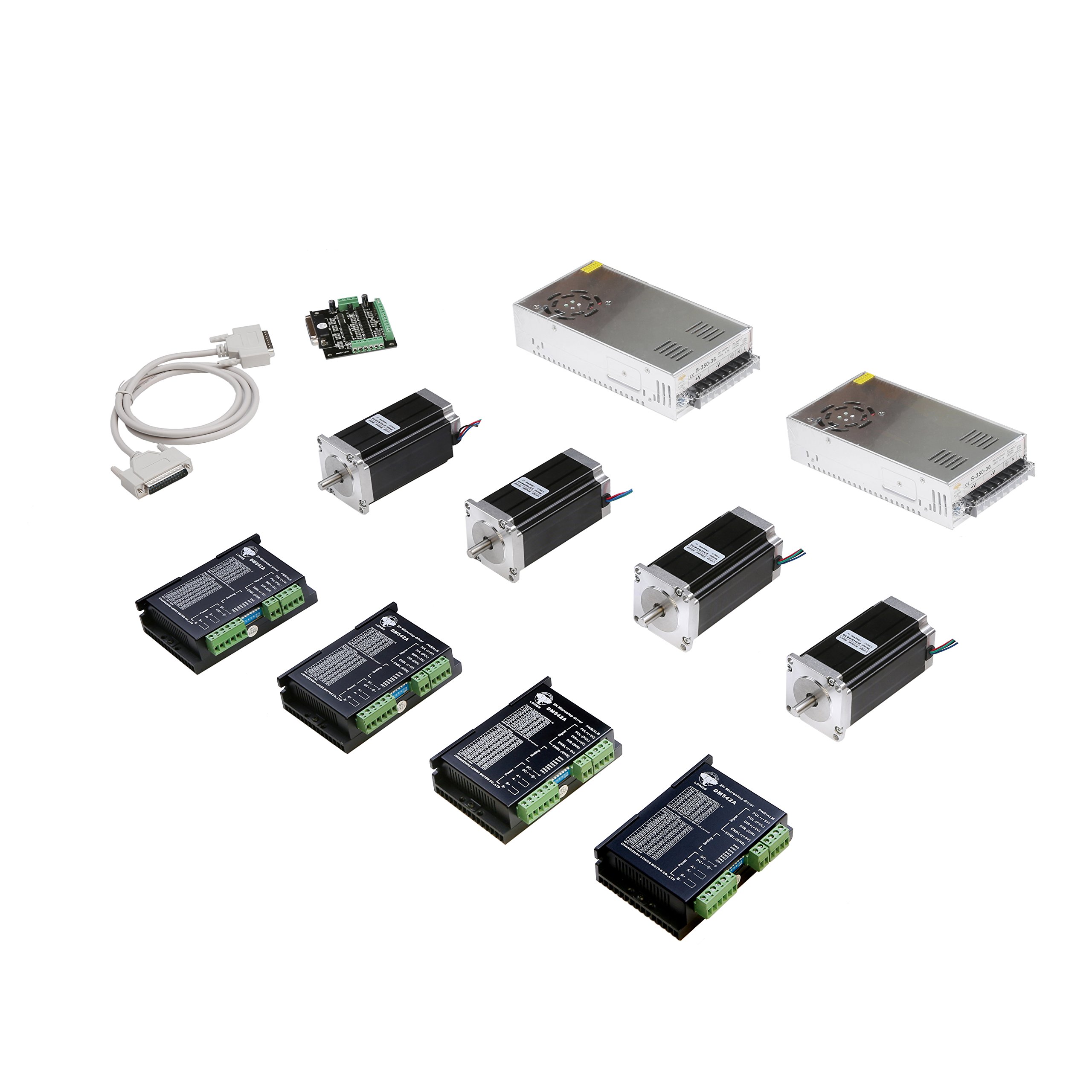

ProductDescription : This item includes:
4 pcs Nema 23 stepper motor with 435 oz.in
4 pcs stepper motor driver DM542A, peak 4.2A, 128 micsteps, replacing M542
2 pc Power supply 350Watts (36VDC/9.7A)
1 pc Breakout board & 1 pc Parallel cable

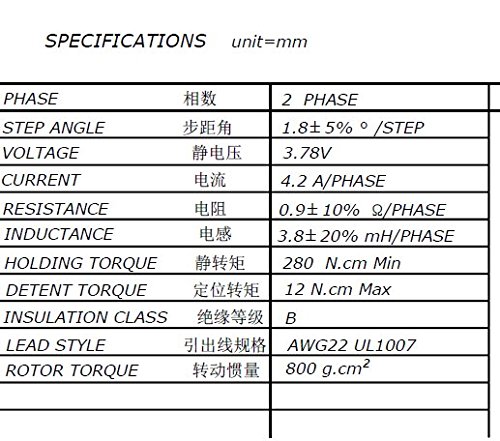

Detailed information
1. Stepper motor Step angle: 1.8 degree
Phase voltage: 4.2A
Phase current:3.0A
phase indutance: 3.8mH
Hording torque :435 oz.in
Motor size: Nema 23 Motor
body length: 113mm
Motor shaft diamention: 8mm
2. Stepper motor driver DM542A DM542A is a type of two-phase hybrid stepping motor driver, The drive voltage of which is from 18VDC to 50VDC.
It is designed for use with 2-phase hybrid stepper motor of all kinds with 42mm to 86mm outside diameter and less than 4.0A phase current.
This circuit that it adopts is smiliar to the circuit of servo control which enables the motor run smoothly almost without noise and vibration.
Hording torque when DM542A run under high speed is also significantly higher than the other two-phase driver, what’s more, the positioning accuracy is also higher.
It is widely used in middle and big size numerical control devices such as curving machine, CNC machine, and computer embroider machine, packing machines and so on.
3. Power Supply--350W-36V
4, Breakout board Description:
Built in DB25 male connector.
DB25 Output Pin:P1,P2,P3,P4,P5,P6,P7,P8,P9,P14,P16,P17.
DB25 Input Pin: P10,P11,P12,P13,P15.
DB25 GND Pin: P18-P25.
Power supply: +5V DC.
Built in C-class Optical-coupler.
High quality with Surface-mount Tech.
DM542A:
Input voltage：18-50VDC
Input current：<4A
Output current：1.0A-4.2A
Consumption：80W； Internal Insurance：6A
Temperature：Working Temperature -10～45℃；
Stocking temperature -40℃～70℃
Humidity：Not condensation, no water droplets
Gas：Prohibition of combustible gases and conductive dust
Weight：200G
