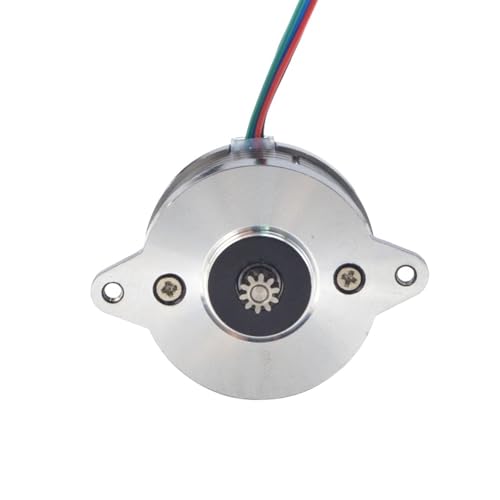

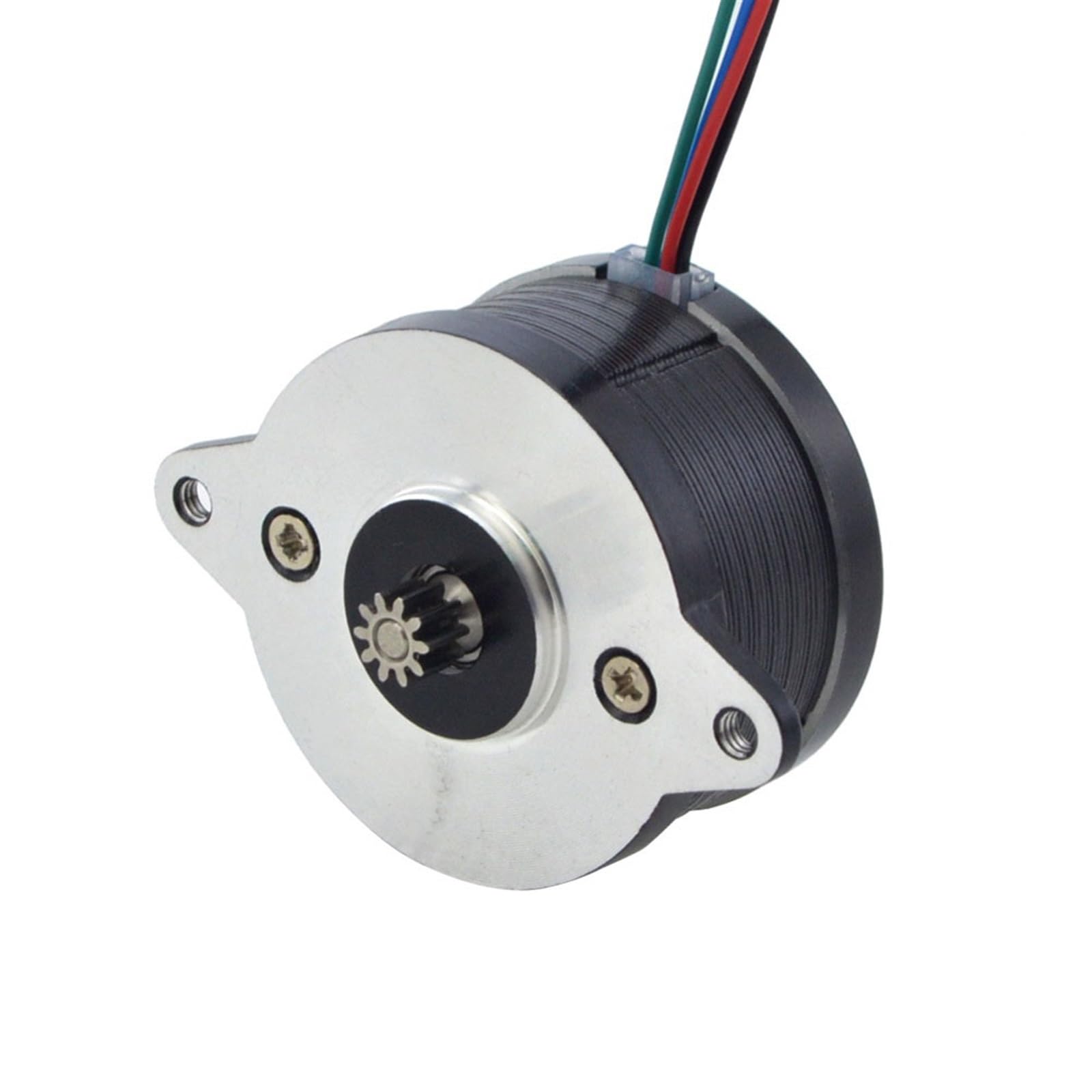

Motion Micro 10 Teeth Nema 14 Bipolar Stepper 4-Wires Stepper Motor 1.8 Degree 10N.cm 4.24oz.in 180? High Temperature Stepper Motor Geared Slide

Customer rating 3.9 stars

Imported from USA | Ships in 10 working days

5% additional discount on UPI | Cash On Delivery available

1

₹11650 -33% ₹7800/-

The price at cart2india.com is inclusive of custom duties, GST, freight forwarding and other charges.

Free Shipping across India. Powered by BlueDart.
EMI and GST Invoice available.

Product Information


Specification
AgeRangeDescription : adult
Brand : GTPBAO
BulletPoint1 : Step Angle: 1.8 degrees, Holding Torque: 10N.cm (14.24oz. in), Rated Current/phase: 1.0A
BulletPoint2 : Frame Size: 36mm, Body Length: 21mm, Shaft Diameter: 2.5mm, Shaft Length: 6mm
BulletPoint3 : Number of Teeth: 10, Pitch Diameter: 5mm
BulletPoint4 : Stable and reliable performance, high efficiency, long service life
BulletPoint5 : Widely used on fans, warm air blowers, electric heaters, burn ovens, stage lighting equipment, microwave ovens, lighting, and other electrical appliances.
Color : One Color
ItemName : Motion Micro 10 Teeth Nema 14 Bipolar Stepper 4-Wires Stepper Motor 1.8 Degree 10N.cm 4.24oz.in 180℃ High Temperature Stepper Motor Geared Slide
ItemPackageDimensions_Height : 1 centimeters
ItemPackageDimensions_Length : 1 centimeters
ItemPackageDimensions_Width : 1 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : 3d-printer-motors
Manufacturer : GTPBAO
ModelName : LRYYFECEB
ModelNumber : LRYYFECEB
NumberOfBoxes : 1
NumberOfItems : 1
PartNumber : LRYYFECEB
ProductDescription : Generally speaking, high-temperature resistant motors are defined by their insulation class. The field of stepper motors usually involves six insulation classes. This motor is class H. This motor is designed for high-temperature applications. We have customed the motor's winding, bearing, magnetic steel, and plastic skeleton to achieve an insulation class of H, with a temperature that reaches up to 180 degrees Celsius. This motor is widely used in 3D Printers.

Motor Type: Bipolar Stepper
Step Angle: 1.8 degree
Holding Torque: 10N.cm (14.24oz. in)
Rated Current/phase: 1.0A
Phase Resistance: 2.1ohms
Inductance: 1.1mH ± 20%(1KHz)
Insulation Class: H 180C(356F)
Frame Size: 36mm
Body Length: 21mm
Shaft Diameter: 2.5mm
Shaft Length: 6mm
Number of Teeth: 10
Pitch Diameter: 5mm
Addendum Circle Diameter: 6mm
Pressure Angle: 20°
Pully Material: SUS304
Number of wires: 4 with connector PH-4
wire Length: 1000mm
ProductSiteLaunchDate : 2025-05-21T02:10:09.061Z
Size : One Size
UnitCount : 1
