Specification
Brand : STEPPERONLINE
BulletPoint1 : New E series Stepper Motor, Very High Torque
BulletPoint2 : 60Ncm holding torque
BulletPoint3 : NEMA 17 bipolar 1.65"x1.65"x2.36" 4-wire
BulletPoint4 : 1.8 deg. step angle(200 steps/rev)
BulletPoint5 : Rated current 2.1A & resistance 1.7ohms
GpsrSafetyAttestation : 1
Horsepower : 1.5 watts
ItemName : STEPPERONLINE E Series Nema 17 Stepper Motor Bipolar Stepper Motor 60Ncm 2.1A Extruder Motor
ItemPackageDimensions_Height : 14.7 centimeters
ItemPackageDimensions_Length : 7.8 centimeters
ItemPackageDimensions_Width : 8.7 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : 3d-printer-motors
Manufacturer : STEPPERONLINE
Material : Steel
ModelName : gear
ModelNumber : 17HE24-2104S
NumberOfItems : 1
PartNumber : 17HE24-2104S

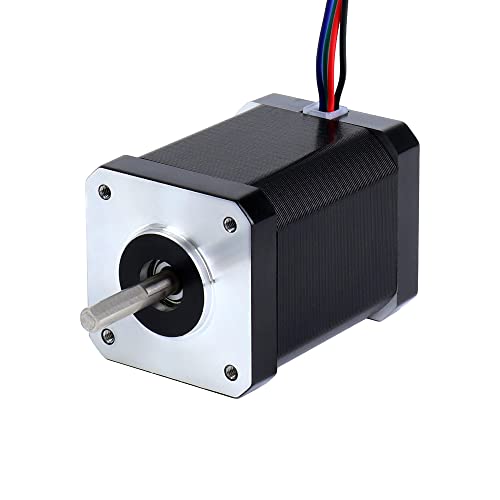

ProductDescription : This is one of strongest bipolar Nema 17 stepper motor with 1.8 deg. step angle (200 steps/revolution).
Each phase draws 2.1A, allowing for a holding torque up to 60Ncm

Electrical Specification:

* Manufacturer Part Number: 17HE24-2104S
* Motor Type: Bipolar Stepper
* Step Angle: 1.8 deg.
* Holding Torque: 60Ncm
* Rated Current/phase: 2.1A
* Phase Resistance: 1.7ohms
* Inductance: 3.1mH+/-20%(1KHz)

Physical Specification:

* Frame Size: 42 x 42mm
* Body Length: 60mm
* Shaft Diameter: 5mm
* Shaft Length: 24mm
* D-cut Length: 15mm
* Number of Leads: 4
* Lead Length: 500mm
* Weight: 500g

Connection:

Black(A+), Green(A-), Red(B+), Blue(B-)

Warning:

Make sure the motor connect to a constant current or chopper drive controller before you test motor.
Connecting the motor directly to a power supply will destroy the motor.
ProductSiteLaunchDate : 2014-11-15T08:00:00.000Z
Speed : 3000 rpm
Style : 3:1
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredHasProductIdentifierExemption : 1
UnspscCode : 26111500
Voltage : 12 volts
