Specification
Brand : UIROBOT

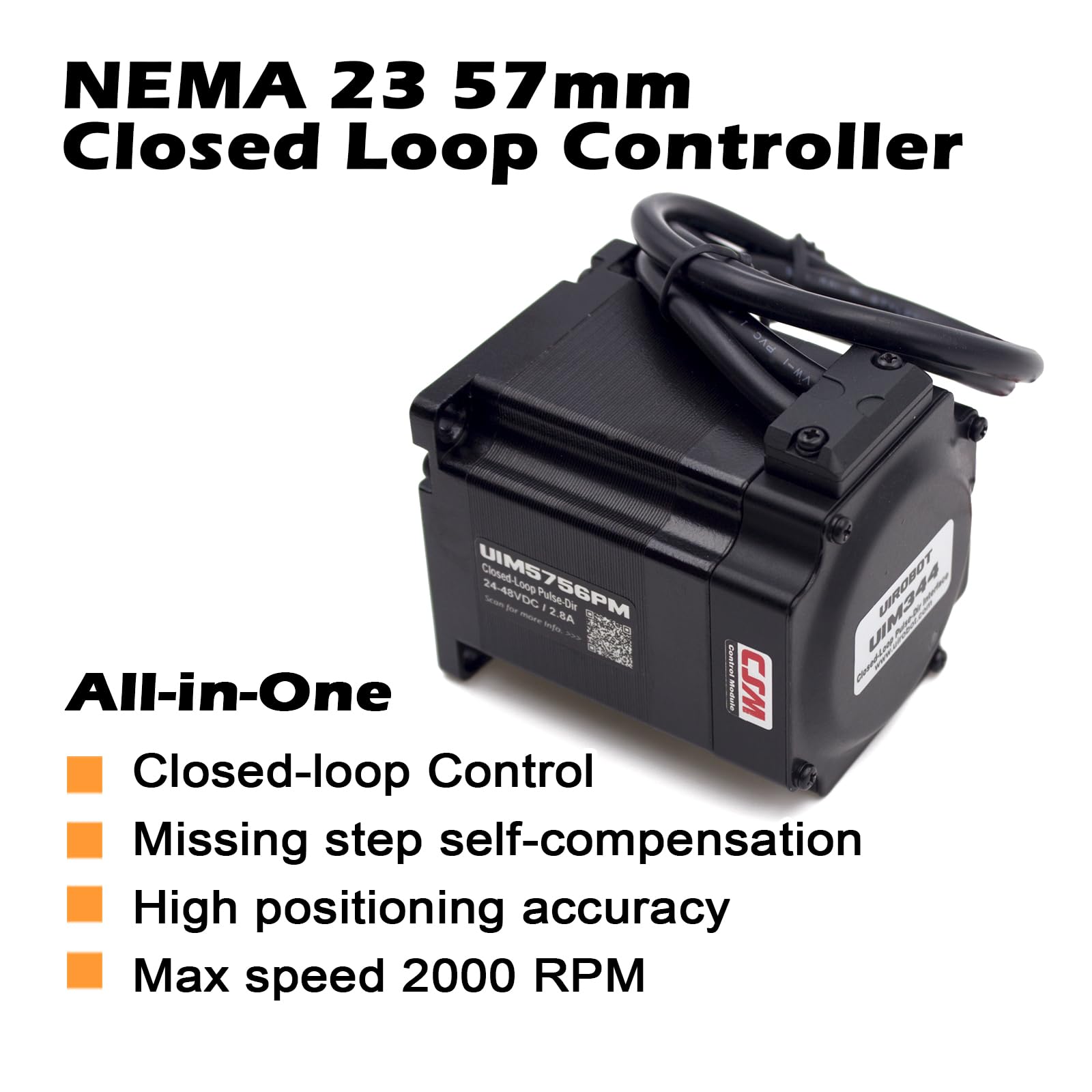

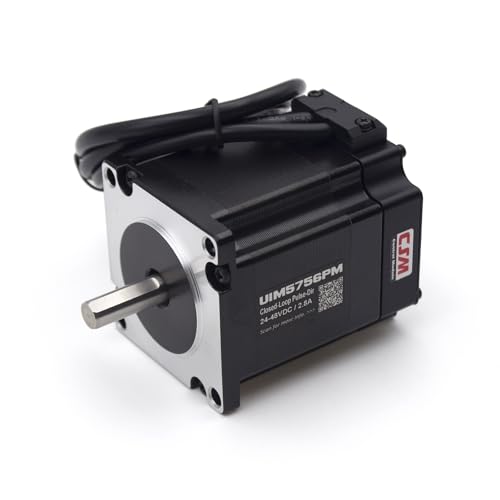

BulletPoint1 : 【HIGHLY INTEGRATION】Our motor is features a nema23 (57x57mm) closed-loop integrated smart stepper motor. It includes pulse-direction control interface and comprises a stepper motor, encoder, driver and closed-loop controller.
BulletPoint2 : 【EXCELLENT DESIGN】 UIROBOT motor boasts a closed-loop design for high positioning accuracy, rapid response, and speeds of up to 2000 RPM. It delivers a torque of 1.26 N·m and supports a wide voltage input range of 24-48 VDC, with an adjustable phase current of up to 2.8 Amp, PWM constant current. Additionally, it features micro-stepping capabilities with resolutions from 1 to 1/128.
BulletPoint3 : 【SELF-COMPENSATION】 These high-precision motors have a high response, and their closed-loop controller can achieve accurate positioning even in stalling situations. The motors can perform step compensation on their own.
BulletPoint4 : 【EASY TO OPERATE】 This stepper motor features simple wiring and is easy to install and use. It is suitable for a wide range of applications, including electric CNC router machines, 3D printer kit, engraving kits, PLC training kits, dispensers, automation applications, stripping machines, marking machines, cutting machines, graph plotters, and more. Please refer to the official latest updates for the product user manual, wiring diagram, and compatible software.
BulletPoint5 : 【SAFE AND STABLE】 This CNC machine motor features a fully enclosed die-cast aluminum alloy frame, and the logic inputs of the UIM344 controller are all optically isolated. This design provides rugged, durable protection and improves heat dissipation. It operates with minimal vibration and noise at low speeds.
Color : 1 PACK
GpsrSafetyAttestation : 1
IncludedComponents : nema 23 stepper motor
ItemName : UIROBOT Closed Loop Stepper Motor with Pulse-Direction, Nema 23 Closed-Loop with Encoder, Driver and Controller for CNC Router, 3D Printer, Engraving Machine. 1-2.8A, 24-48VDC, 1.26N.m (UIM5756PM)
ItemPackageDimensions_Height : 95 millimeters
ItemPackageDimensions_Length : 180 millimeters
ItemPackageDimensions_Width : 95 millimeters
ItemTypeKeyword : 3d-printer-motors
Manufacturer : UIROBOT
Material1 : Aluminum
Material2 : Metal
ModelNumber : UIM344-NEMA23
NumberOfItems : 1
PackageLevel : unit
PartNumber : UIM344-NEMA23
ProductDescription : UIM344 / UIM344S / UIM344XS 1 Axis Closed-Loop Integrated Smart Stepper Motor

The UIM344 series Integrated Stepper Motors consist of a stepper motor, encoder, driver, and closed-loop controller. These motors interface with user controllers, PLCs, or computers through three wired signals: pulse, direction, and enable. Motor frame sizes offered are NEMA 8, NEMA 11, NEMA 17, NEMA 23, NEMA 34, and NEMA 42. Depending on the motor size, the rated current ranges from 0.25A to 6A, and the supply voltage is between 16V to 48V.
With the embedded encoder and closed-loop controller, these motors can achieve accurate positioning even in stalling situations. Missing step compensation is performed by the motor itself. The fully enclosed die-cast aluminum body provides rugged, durable protection and improves heat dissipation.

ProductSiteLaunchDate : 2024-08-09T05:15:47.601Z
Size : NEMA 23
Speed : 2000 rpm
Style : Pulse-Direction Close-Loop
SupplierDeclaredDgHzRegulation : not_applicable
UnspscCode : 23260000
Voltage : 48 volts_of_direct_current
