Specification
Amperage : 2 amps
Brand : BeElion
BulletPoint1 : Package Content: 1x 4-ch video balun,1x Product Manual; Size: 11.2 x 5.2 x 2.5cm ;Weight: 180g;Anti-interference: 60db;
BulletPoint2 : BNC Male Impedance: 75ohms,UTP Cable Impedance:100ohms;Resolution: 720P/1080P; No power required, Built-in transient suppression protection;
BulletPoint3 : Working temperature:-10°C~55°C;Storage temperature: -20°C - 70°C;Humidity: 0~95%(non-condensing);
BulletPoint4 : Shell Material:Metal shell with pure copper BNC connectors,Product Name: 4CH Passive HD Transceiver;
BulletPoint5 : HD-CVI / TVI / AHD/ CVBS Passive Video & Audio Connector & Power Balun. Easy installation, using the standard UTP cable system and low voltage power supply;the longest run color was about 1000 feet HD transmitter.
Color : Silver
CompatibleDevices : Camera
CompatibleDevices1 : Television
CompatibleDevices2 : Monitor
CompatiblePhoneModels : CCTV CANERA
ConnectorGender : Male-to-Male
ConnectorType : Bnc to Rj45
ConnectorType1 : Coaxial
ConnectorType2 : RCA
CustomerPackageType : Individual
DataTransferRate : 50 adult_us
EthernetCableCategory : cat_5e
ExternallyAssignedProductIdentifier1 : 792966972377
ExternallyAssignedProductIdentifier2 : 0792966972377
FinishType : Hdmi
IncludedComponents : Charging cable
IndoorOutdoorUsage1 : outdoor
IndoorOutdoorUsage2 : indoor

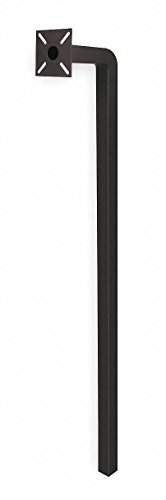

ItemName : 60" Steel Pedestal; For Use With Access Reader, Intercom, Keypad, Control, Enclosure
ItemPackageDimensions_Height : 60 inches
ItemPackageDimensions_Length : 5 inches
ItemPackageDimensions_Width : 5 inches
ItemPackageQuantity : 1
ItemShape : Round
ItemTypeKeyword : access-control-keypads
Manufacturer : BYL BeElion
Material : Copper
MaximumCurrent : 2 amps
MaximumVoltage : 38 volts
ModelName : UTP 4 Channel 720P 1080P CVI/TVI/AHD Passive HD Transceiver
ModelNumber : BE369088ELECTRONICS
NumberOfItems : 1
NumberOfPins : 1
PartNumber : BE369088ELECTRONICS
ProductDescription : Description:

With working with passive transceiver and active transmitters allow signals transmission up to 200m and 400m respectively.
The unparalleled interference rejection and low emissions of the UTP allow video signals to co-exist in the same wire bundle as telephone, datacom, or low-voltage power circuits.
Video Balun Transceiver can simplify the wiring project and save wire use quantity.
Save project wire expenses. Each a pair of twisted pair wire transmits one channel of video signal and one common Cat-5 unshielded twisted pair wire can simultaneously transmit four channels of video signal.
Transmission Signal: 4 Channel
Transmission Distance: HDCVI 720P:400m/ HDCVI 1080P:250m;HDTVI 720P/1080P:200m; AHD 720P:250m/AHD 1080P:200m
Category Type: UTP CAT5/5E/6
Compatible Format: BNC-M
Twisted-pair Video Connector:Push-terminal
Video Transmission Compatible Format: HDCVI/HDTVI/AHD ;Anti-interference: 60db
ESD: 1A Contact Discharge Electricity Level 3
Coaxial Cable Connector: 2KV(common-code).Per:IEC1000-4-5
UTP Cable Connector: 2KV(different-code),4KV(common-code).Per:IEC1000-4-5
BNC Male Impedance: 75ohms ; UTP Cable Impedance:100ohms
Dimension(L*W*H): 112mm*52mm*25mm
Shell Material: ABS & Metal ; Color: Silver ; N.W.: 180g
MTBF: >10000H
Operating Temperature: -10°C~55°C; Storage Temperature: -20°C~70°C ; Humidity: 0~95%(non-condensing)

Note:
The transceiver is not waterproof set,so keeping transceiver away wet environment will be prefer.

Cable Recommendation:

Link cable is recommended to use high quality UTP cable.
Poor quality cable or network connection or improper construction will cause unstable connection,video or sound disruptions,picture noise appears.

Package Included :
1x 4 Channel Passive HD Transceiver
1x Manual
ProductSiteLaunchDate : 2021-06-30T08:48:36.942Z
RecommendedUsesForProduct : INDOOR OUTDOOR
Size : 70 cm
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredHasProductIdentifierExemption : 1
UnitCount : 1
UnspscCode : 46150000
Voltage : 24 volts
Wattage : 60 watts
