Specification
Brand : Midzoo

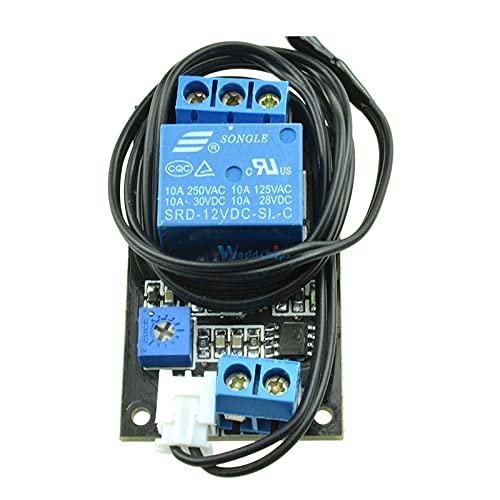

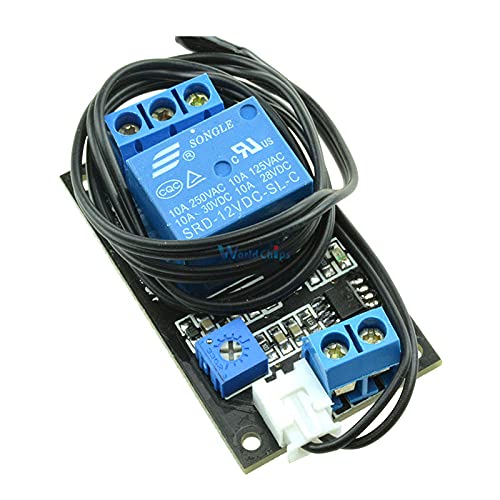

BulletPoint : 1 Channel 12V Thermistor Humidity Relay Humidity and Temperature Control Switch Relay Module
ExternallyAssignedProductIdentifier : 4862440116842
ItemName : 1 Channel 12V Thermistor Humidity Relay Humidity and Temperature Control Switch Relay Module
ItemTypeKeyword : humidifier-accessories
Manufacturer : Midzoo
Material : Copper
PartNumber : MiMODULE-12342
ProductDescription :
Product
Descriptions:
comes with genuine quality relay can directly control AC or DC loads, Normally open interface maximum load capacity: AC 0V--250V/10A DC 0V--30V/10A;
2. Temperature can be adjusted by potentiometer threshold,
when the ambient temperature is above this threshold, relay,
when the temperature falls below this threshold, the relay releases;
3. Design, smart regulation, when after the relay will automatically fine tune threshold,
solves the problem of critical values over;
4. Module has a counter function, reverse polarity will not damage the power supply module;
5. Equipped with power indicator light (red), the relay status led (blue);
6. Operating voltage 12V;
7. With 4 fixing bolt holes for easy installation;
8. Module dimensions: 5.0CM*3.0CM*1.8cm;
9. Modules free with the 50cm fuse thermal sensor;
Instructions:
1.Module ambient temperature-sensitive thermistor, typically used to detect changes in ambient temperature;
2.Module when the ambient temperature is higher than the set threshold,
relay to pull-in, beginning public side and often connected (disconnected from the normally closed-end),
when the outside temperature drops below a set threshold,
the relay disconnect, and common Terminal disconnected from the beginning
(with normally closed-end connected);
3.The common Terminal, normally open, normally closed three ports is equivalent to a double control switch,
relay coil current, common Terminal and start turn-on, no power,
common Terminal and the normally closed-end of conduction;
Electrical parameters: Working voltage: DC 12V Operating current: relay after pull-in: 12V module is less than 50mA Before the relay actuation: less than 5mA Load capacity: AC 0V--250V/10A, DC 0V--30V/10A; temperature range - 20° to 100°
Package included:
1PCS x 1 Channel DC 12V Thermistor Relay Sensor Temperature De
