Specification
Brand : YiYun
BulletPoint : MFG Part Number: YK33F
BulletPoint1 : Advanced Charging Technology Our electric scooter charger offers fast, efficient charging with two voltage options (42V 2A & 54.6V 2A). The charger’s smart display provides real-time updates on voltage, remaining charging time, and battery percentage, giving you full control over your scooter’s charging process.
BulletPoint2 : Stylish & Durable Design This charger is built with a unique, sleek matte electroplated finish, making it not only visually appealing but also highly durable. The aluminum alloy casing combined with a high-speed, silent fan ensures superior heat dissipation, keeping the charger quiet and cool during use.
BulletPoint3 : Multi-Protection Features Your safety is our priority. This charger comes with a double protection system: automatic shutdown when fully charged and a built-in temperature sensor to prevent overheating. Additionally, the charger’s advanced software controls voltage detection, preventing any risk of current backflow.

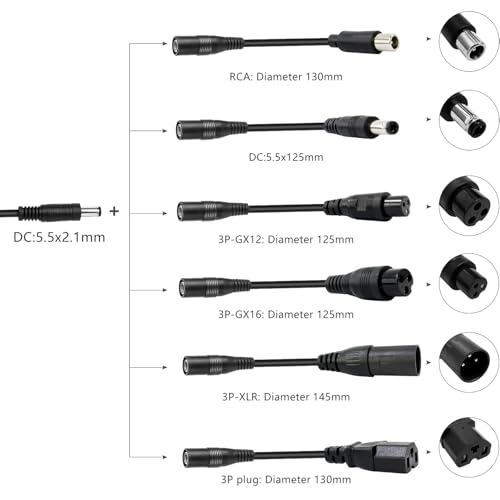

BulletPoint4 : Versatile Compatibility This charger comes equipped with 6 different charging adapters, allowing compatibility with a wide range of electric scooters and bikes. Whether you have a scooter or e-bike with 42V or 54.6V battery systems, this charger is a perfect fit, offering hassle-free charging for multiple vehicle models.
BulletPoint5 : Robust & Waterproof The charger is built to withstand impacts and is highly resistant to water, thanks to the injection molding process used in its construction. Whether you’re using it in the garage or outdoors, you can trust that it will endure rough conditions.
BulletPoint6 : Efficient and User-Friendly Enjoy a smooth and user-friendly charging experience. The charger’s display will cycle through battery percentage, voltage, and time remaining every 5 seconds, ensuring you can always track your scooter’s charge level. It also automatically powers off once the battery is fully charged.
Color : Black
CompatibleWithVehicleType : Scooter
CurrentRating : 2 amps
Department : unisex-adult
ExternallyAssignedProductIdentifier1 : 0704335371131
ExternallyAssignedProductIdentifier2 : 704335371131
FitType : Vehicle Specific Fit
GpsrSafetyAttestation : 1
ImportDesignation : Imported
IncludedComponents : 1*Scooter Seat 1*English Installation Diagram 1*Screwdriver
InputVoltage : 110 volts
ItemDisplayDimensions_Depth : 25.6 inches
ItemDisplayDimensions_Diameter : 6.3 inches
ItemDisplayDimensions_Height : 25.6 inches
ItemDisplayDimensions_Length : 9.84 inches
ItemDisplayDimensions_Width : 6 inches
ItemName : 1000 Watt - 48V Brushed Motor Controller (YK33F)
ItemPackageDimensions_Height : 20.701 centimeters
ItemPackageDimensions_Length : 5.4102 centimeters
ItemPackageDimensions_Width : 11.9888 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : sports-scooter-accessories
Manufacturer : YiYUN
Material : Aluminum Alloy, Iron, PU, Sponge
ModelName : Adjustable Shock Absorption Seat
ModelNumber : Electric Scooter Seat
NumberOfBoxes : 1
NumberOfItems : 1
OutputVoltage : 54.6 volts
PartNumber : YK33F
Pattern : Solid
ProductDescription :

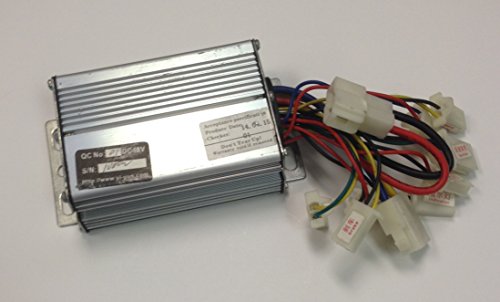

1000 Watt - 48V Controller.  These controllers we had made specificly for Wild.  We use them in our variable speed kits for the Razor Scooters. This controller is for brushed (Also known as "PM" or "Magnet" motors).  This controller is offten referred to as a YK33F - very similar to a LB37.

Great controller, durable and long lasting.  For the price you can't go wrong.



Wiring the controller

   Thick Red/Black:  Batt (Red+, Black-)

   Thick Blue/Yellow:  Motor



   Thin Yellow/Black: Brake Switch (When closed throttle is disabled)

   Thin Yellow/Black: Brake Switch (When closed throttle is disabled)

   Thin Green/Black/Red (Derailleur): Throttle (Red: +5v, Black: Ground, Green: Signal)

   Thin Black/Red (Charging Port): Charging Port

   Thin Black/Red (Indicator): Power light (Provides full pack voltage when power/key is on, used to run an indicator light)

   Thin Black/Red (Brake Light): Brake Light

   Thin Blue/Red (Power Locks): Key or power switch (When closed power is on)

   Thin Green/Yellow (Sport): Unused

ProductSiteLaunchDate : 2015-06-07T07:34:24.878Z
Size : Small
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredHasProductIdentifierExemption : 1
UnspscCode : 26111500
Voltage : 48 volts
WarrantyDescription : 12 month
