Specification
Brand : Artmavin
BulletPoint : Tilton 74-1000RK 1IN REPAIR KIT
BulletPoint1 : Seal Size: Bore (I.D.) 4.5" x rod (O.D) 1.75"
BulletPoint2 : Premium Material : Made of quality Rubber and Plastic for long service life
BulletPoint3 : Usage: This Cylinder Rebuild Seal Kit provides an easy and effective way to rebuild the cylinder on the log splitter, preventing oil leaks and other cylinder damage to extend the life of your log splitter cylinder
BulletPoint4 : Please Note: Please check that the inside diameter（I.D.） and outside diameter(O.D.) are the same size as your hydraulic cylinder before purchase. Please learn more details from the pictures to confirm if this is the product you need
BulletPoint5 : Package Content: Cylinder rebuild seal kit as pictured. We are committed to providing satisfactory service to all our customers. Kindly do not hesitate to contact us back in the future if you feel that you need further assistance
ExternallyAssignedProductIdentifier1 : 191215138401
ExternallyAssignedProductIdentifier2 : 0191215138401
FitType : Vehicle Specific

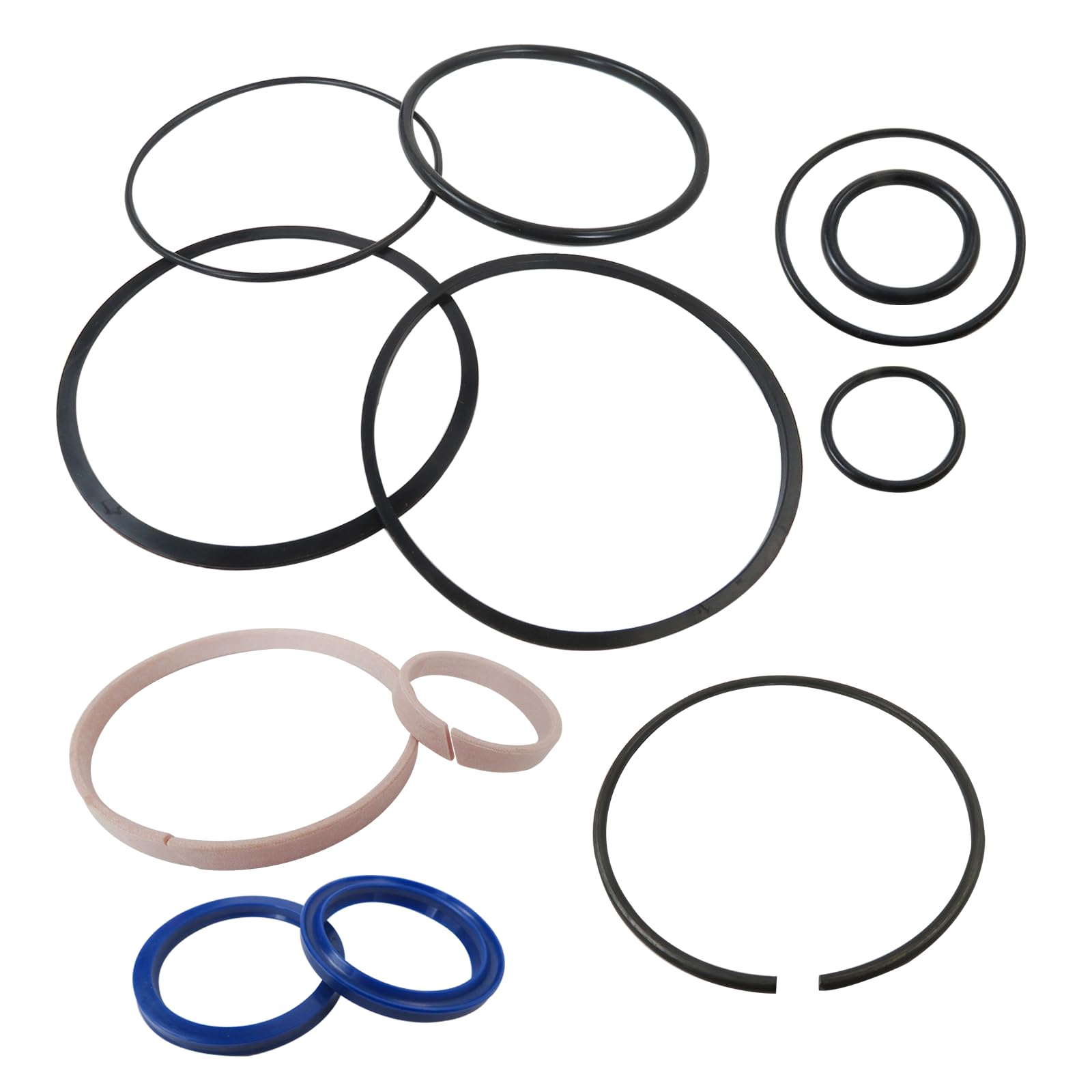

ItemName : Artmavin Hydraulic Log Splitter Cylinder Rebuild Seal Kit for 4.5" Bore x 1.75" Rod Cylinder Accessories
ItemPackageDimensions_Height : 5.94 inches
ItemPackageDimensions_Length : 26.18 inches
ItemPackageDimensions_Width : 15.51 inches
ItemPackageQuantity : 1
ItemTypeKeyword : hydraulic-cylinder-accessories
Manufacturer : Artmavin
ModelNumber : 74-1000RK
NumberOfItems : 1
PartNumber : Cylinder rebuild seal kit
ProductDescription : >- Type: Cylinder rebuild seal kit

Seal Size: 4.0"Bore x 1.75"
Premium Material : Made of quality Rubber and Plastic for long service life.

To know whether it fits your cylinder, one good way is to disassemble and measure your cylinder to compare with each item specification.
Double check each seal groove is good for our part sitting in.
1. Cylinder tube Bore (I.D.) 4.0" x rod (O.D) 1.75". Please note some cylinder rod head OD size is not rod size.
2. Wear rings. Piston wear ring : 101.6 mm ( OD 4") x 95.25mm (ID 3.75") x 9.53mm (0.375" wide), Nylon Rod wear ring : 44.5mm (ID 1.752") x 50.8mm (OD 2 inch ) x 9.53mm (0.375" wide), Nylon
3. Piston seals 1 square ring and 1 O-ring. Piston Square ring: D101.6 mm x91.6mm x 3.28mm; O-ring (installed under the square ring): 91.0 mm x 2.65 mm . CPU + NBR
4. Rod O-ring (item 13): 44.5mm x 54mm x 5mm, CPU. There is O-ring inside.
5. Rod dust ring (Item 12): 44.5mm x 54mm 5.5mm /7.3mm, TPU

Below is 4.0"Bore x 1.75" rod cylinder Specification that factory made by this seal kit: Retracted (center to center between rod mountain hole and clevis hole: 32.4 inch Extended (center to center same as above): 56.4 inch
Stroke: 24±0.05 inch
Dimension from center of clevis hole to back face of cylinder: 2.95 inch Dimension from center of rod end hole to front face of rod: 1.06 inch Dimension from center of rod end hole to front face of cylinder: 1.18 inch Ports: 1/2" NPT Dimension from port to port: 25.4 inch
Rod: 1.75" rod
Rod end mountain hole: 0.55 inch
Clevis Mountain hole: 1.16 inch
Dimension between mountain clevis to clevis: 0.87 inch
Thickness of each mountain clevis: 0.375 inch
Length of each mounting clevis: 4.125 inch
