Specification
BatteriesRequired : 1
BrakeStyle : Rear Braking
Brand : ChongXiao
BulletPoint1 : Voltage: 36v-84v universal, after connecting the learning line, identify the voltage according to the battery condition.
BulletPoint2 : Power: 1000W-2000w all can work
BulletPoint3 : Current Limit: Rated current 40A, maximum output 50A.
BulletPoint4 : Condition: Since the process is die-casting and injection molding, the product itself will have small flaws, but product function can work well.
BulletPoint5 : Universal Fit For Urban Riders: Adjustable silicone-grip straps work with Xiaomi, Segway, TurboAnt scooters and most folding e-bikes. Anti-sway design maintains stability even at 25mph+.
BulletPoint6 : EXAMPLES OF COMPATIBLE MODELS: V7, SP08, T5, SP03, SP06, SPT7, SP02, Q1, H5, K078, UP6-1, ES09, Y01, V1, V1 SPRO, V1 MAX, V1 PRO, UP8, DY8501, A1, W4, S1-J03, JS01, M365, i8, i9, S2, S2X - The models listed above are common examples for reference and do not represent a complete list of compatible or incompatible scooters.
BulletPoint7 : NOT COMPATIBLE WITH THE FOLLOWING MODELS: G2 Max, F2, F2 Pro, ES1L, E2P2, E2 Pro, RZ800, C2, C8, E8, C9, C10, E10, ZT3 Pro, MAX G3, F3, 100P, IX7 Pro, G4, JS03, F25, F40, S2R, GT3, E22, ES16 - The models listed above are common examples for reference and do not represent a complete list of compatible or incompatible scooters.
Capacity : 2 liters
Color : gold
CompatibleWithVehicleType1 : Bicycle
CompatibleWithVehicleType2 : Scooter
CompatibleWithVehicleType3 : MTB
Department : unisex-adult
GpsrSafetyAttestation : 1
HandlebarType : Fixed
ImportDesignation : Imported
IncludedComponents : controller
IncludedComponents1 : Base
IncludedComponents2 : Seat Cushion
IncludedComponents3 : Support Bottom Tube
IncludedComponents4 : Telescopic Tube
IncludedComponents5 : Hexagon Socket Screwdriver

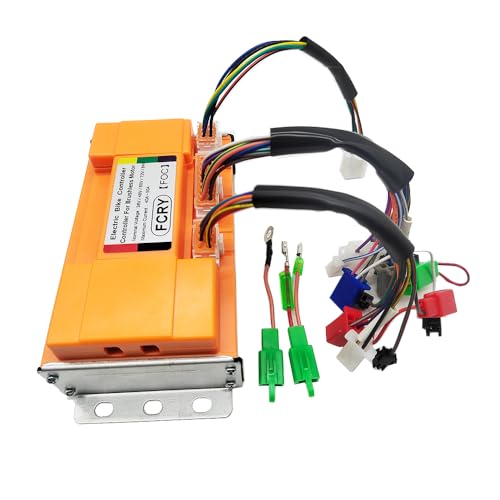

ItemName : ChongXiao Intelligent Brushless Sine Controller 36V 48V 60V 72V 84V 2000W Maximum Current 50A Aluminium Alloy E-Bike Brushless Motor Controller for Electric Bicycle Scooter
ItemPackageDimensions_Height : 23.0124 centimeters
ItemPackageDimensions_Length : 6.1976 centimeters
ItemPackageDimensions_Width : 10.3886 centimeters
ItemTypeKeyword : sports-scooter-accessories
Manufacturer : ChongXiao
Material : Aluminum
Material1 : Leather
Material2 : Aluminum
ModelName : Sine Controller 36V 48V 60V 72V 84V 2000W
ModelNumber : CB2025002
MountingType1 : Handlebar Mount
MountingType2 : Rack Mount
NumberOfCompartments : 2
PartNumber : CB2025002
PocketDescription : Flap Pocket
ProductDescription : Note:The instruction manual attached to the product is a series of universal manuals for the product.
The images shown in the manual may differ from those of this product, but most of the functions of the product are the same,
with some differences in certain functions. There may be some discrepancies between the image taken and the actual situation.
Please refer to the received product for accuracy.

and the position of the power and phase lines of this controller is somewhat different from traditional controller designs,
as it does not have external wires and instead has hidden interfaces.
Their wiring position requires opening the back cover for wiring, and then covering it up.
This design is to avoid being exposed to rain and causing short circuits, making it a safer upgraded interface.
Please be know it before purchasing. thank you.

Material: aluminum alloy and plastic
Voltage: 36v-84v universal
Power: 1000W-2000w all can work
Current Limit: Rated current 40A, maximum output 50A.
Condition: Since the process is die-casting and injection molding, the product itself will have small flaws,
please don't mind.


1.hall（5 wires）
2.three -speed gear
3.reverse gear（only 1 wire,this is signal wire，If you have 2 wires,
the other one can be connected to the common negative wire）
4.Phase Meter
5.throttle
6.Multi data instrument cable
7.Intelligent recognition（also call self-learning line）
8.speed cruise wires
9.high-level brake
10.Hall Meter
11.electric door lock 12.Job three-speed gear（if throttle 3 speed plug only have 2 wires,can connect it,if not have，not need connection）
13.Differential motor dedicated(2 wires,if want use square wave function,let they connect together，controller will change to square wave controller)
14.low-level brake
15.anti-theft alarm power
16.anti-theft alarm signal

How to connect controller？

1.connect the motor phase line(color to color connection）
2. connect the hall line,color to color connection.(if motor without hall line, don't need connect，but motor will have noise)
3. connect the battery line(+:battery+ , -:battery-)
4.off power,let two intelligent recognition lines connect together,open power,then the wheel will forward or reverse.
(1.if wheel forward ,Separate the intelligent recognition line.
2.if wheel reverse, Separate the intelligent recognition line. Let intelligent recognition line connect together again,if wheel forward ,Separate the intelligent recognition line.)
This step needs to be effective within 2 minutes after the power is turned on. If the timeout occurs, please turn off the power and then turn it back on before proceeding with these steps.

5. connect the controller throttle to throttle and need color to color connect,
connect controller electric door lock to throttle electric door lock
（if throttle not have electric door lock,let controller electric door lock short）
NOTE:when use throttle control speed,two intelligent recognition line must separate.

6.other functions can be connected as needed.

ProductSiteLaunchDate : 2023-06-12T02:22:53.510Z
ShellType : Hard
Size : middle
StrapType : Stretchable
Style : 2l Us
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredHasProductIdentifierExemption : 1
SuspensionType : Rigid
UnspscCode : 26111500
WarrantyDescription : No
WarrantyType : Lifetime Limited
