Specification
Brand : FLIPSKY
BulletPoint1 : 75200 pro v2.0 is an ESC controller, which can be used for electric skateboards/scooters/electric bicycles/robots/DIY off-road vehicles/combat off-road vehicles, etc.
BulletPoint10 : You can refer to the video. If you still don’t understand, you can contact us to send relevant videos.
BulletPoint2 : The ESC is the Benjamin ESC series. Please use the VESC TOOL tool to adjust the parameters before use. The factory version firmware is 6.02. If you need other versions, please go to the VESC tool software (Firmware) and select the corresponding version. The version cannot be used incorrectly. Different firmwares may cause differences in parameters; otherwise, it may easily cause damage to the ESC parameters.
BulletPoint3 : PLS note:Except for Apple computers, other computer firmware can be downloaded from our official website. Apple computers can only be purchased on Apple.Please strictly refer to the instructions and wiring diagram to ensure the safe use of the product.
BulletPoint4 : When you just connect the controller, pay attention. If the versions are inconsistent, the page will pop up. If they are inconsistent, you need to change them to be consistent before adjusting the parameters.
BulletPoint5 : Voltage range: 14-84V (safe within 4-20S). Do not exceed the voltage range, which may cause the ESC to burn out.

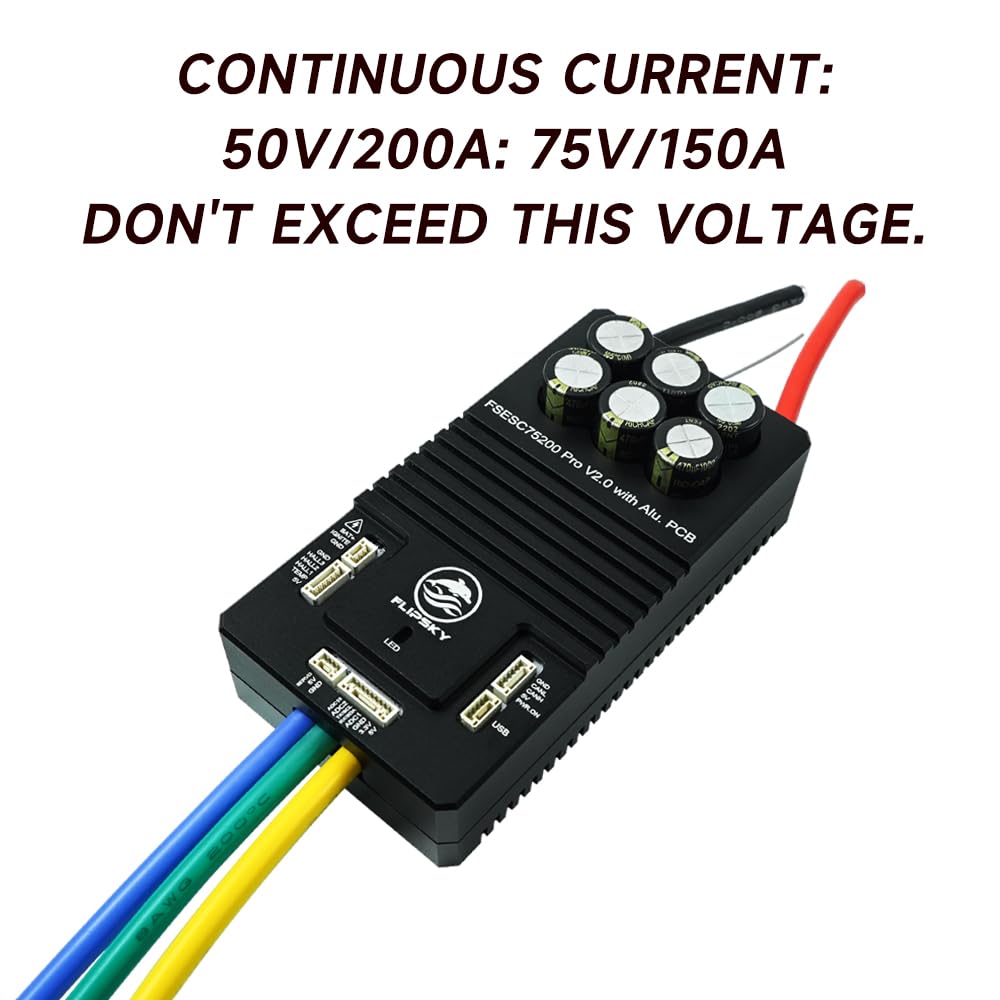

BulletPoint6 : Continuous current: 50V/200A; 75V/150A (the duration depends on the external heat dissipation); the current at the motor and bus battery end cannot exceed 200A.
BulletPoint7 : BEC: 5V@1A, 5V output current, the receiver cannot exceed 1A.Instant current: 400A (just a moment),With relative filtering.
BulletPoint8 : Please connect according to the wiring diagram, and pay special attention to 3.3V and 5V. Do not short-circuit. Note: When using any throttle handle, under ADC control, make sure that the positive pole of the power supply is connected to 3.3V, not 5V.
BulletPoint9 : Warm reminder: The ESC seat is easy to fall off, please do not be too violent when using it.The battery and motor ports must be welded firmly
Color : Black
Department : unisex-adult
ExternallyAssignedProductIdentifier : 8409589320929
ExternallyAssignedProductIdentifier1 : 764544974066
ExternallyAssignedProductIdentifier2 : 0764544974066
ImportDesignation : Imported
IncludedComponents1 : 75200 Pro V2.0 With Aluminum PCB
IncludedComponents2 : With key switch
IncludedComponents3 : Installation Accessories
ItemDisplayDimensions_Depth : 6.7 inches
ItemDisplayDimensions_Height : 8 inches
ItemDisplayDimensions_Width : 9.85 inches

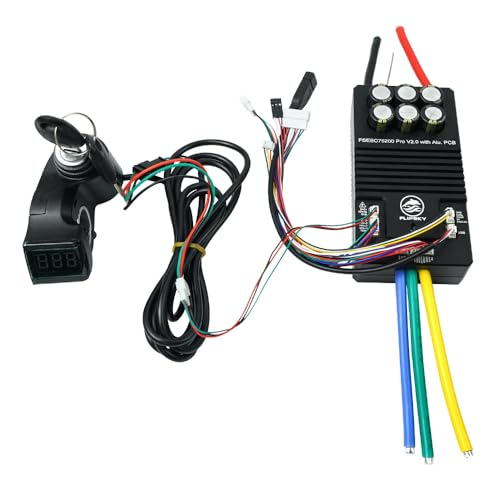

ItemName : FLIPSKY 75200 Pro V2.0 84V 200A with Aluminum PCB with Key Switch Based on VESC for Electric Skateboard/Scooter/Ebike Speed Controller
ItemPackageDimensions_Height : 19.1008 centimeters
ItemPackageDimensions_Length : 10.2108 centimeters
ItemPackageDimensions_Width : 17.399 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : sports-scooter-accessories
LoadCapacity : 5E+1 pounds
Manufacturer : Flipsky
Material : Aluminum
ModelName : 75200 Pro V2.0 With Aluminum PCB with key switch 200A 84V
ModelNumber : 75200 pro v2.0 with key switch
NumberOfBoxes : 1
NumberOfItems : 1
PartNumber : SSXOQX
ProductDescription :

1. Our product is an ESC controller, which can be used for electric skateboards/scooters/electric bicycles/robots/DIY off-road vehicles/combat off-road vehicles, etc.

2. The ESC is the Benjamin ESC series. Please use the VESC TOOL tool to adjust the parameters before use. The factory version firmware is 6.02. If you need other versions, please go to the VESC tool software (Firmware) and select the corresponding version. The version cannot be used incorrectly. Different firmwares may cause differences in parameters; otherwise, it may easily cause damage to the ESC parameters. Except for Apple computers, other computer firmware can be downloaded from our official website. Apple computers can only be purchased on Apple.

3. When you just connect the controller, pay attention. If the versions are inconsistent, the page will pop up. If they are inconsistent, you need to change them to be consistent before adjusting the parameters.

4. Voltage range: 14-84V (safe within 4-20S). Do not exceed the voltage range, which may cause the ESC to burn out.

5. Continuous current: 50V/200A; 75V/150A (the duration depends on the external heat dissipation); the current at the motor and bus battery end cannot exceed 200A;

6. Instant current: 400A (just a moment, such a high current cannot be sustained)

7. BEC: 5V@1A, 5V output current, the receiver cannot exceed 1A

8. With relative filtering

9. The product only carries a switch, without spark protection function. If you need spark protection, you need to purchase a spark protection switch separately

10. Warm reminder: The ESC seat is easy to fall off, please do not be too violent when using it

11. Please connect according to the wiring diagram, and pay special attention to 3.3V and 5V. Do not short-circuit. Note: When using any throttle handle, under ADC control, make sure that the positive pole of the power supply is connected to 3.3V, not 5V.

12. The battery and motor ports must be welded firmly

13. Please strictly refer to the instructions and wiring diagram to ensure the safe use of the product. You can refer to the video. If you still don’t understand, you can contact us to send relevant videos.

14. Support single serial port use, Bluetooth module (no external Bluetooth module is required)

15. The ESC is a DIY customized product. If you need to return or exchange, please ensure the original state of the product (no welding, no tearing of heat shrink film), which will not affect the secondary sale, and you can return or exchange it; if it has been welded, powered on, and the heat shrink film has been torn off, etc.; it cannot be returned, please be aware!

16. Double heat dissipation metal aluminum shell plus aluminum substrate double heat dissipation effect, the aluminum substrate effectively handles heat diffusion in the circuit, the metal aluminum shell enhances heat dissipation, and at the same time protects the ESC and extends the service life.

ProductSiteLaunchDate : 2024-09-06T02:27:04.258Z
Size : 130x68x41mm
SupplierDeclaredDgHzRegulation : unknown
UnspscCode : 49120000
WarrantyDescription : 2m
