Specification
Brand : WYDDDARY
BulletPoint1 : Industrial Performance: This 110V adsorption dryer provides industrial performance with 2.5 m³/min treated air volume and -20°C to -40°C dew point temperature. Features 88lbs adsorbent weight and adjustable 300S switching cycle. Ideal for wide applications in electronics, food processing, and medical industries. etc
BulletPoint2 : Smart PLC Control System: The air drying process is automatically controlled by the YX intelligent controller using advanced microcomputer technology to improve the air purification efficiency and reduce the power loss
BulletPoint3 : Heavy-Duty Industrial Construction: Built with 1" threaded pipe, 159mm*1080mm bobbin, and 1.0MPa (40℃) nylon hoses. Includes 2 suppressors, 4 diffusers, pneumatic valves, and all necessary connections
BulletPoint4 : Installation Tips: Construct and install according to the foundation drawing, ensuring the cylinder's verticality. Fasten and tighten equipment after initial use. Keep inlet/exhaust pipes, filters, and oil removers close together. Ground non-safe voltage parts for safety, and connect the muffler outside the room
BulletPoint5 : Please note: This machine does not have a power cord, you need to ask the electrician to connect it to the power supply
ExternallyAssignedProductIdentifier1 : 0198462098939
ExternallyAssignedProductIdentifier2 : 198462098939

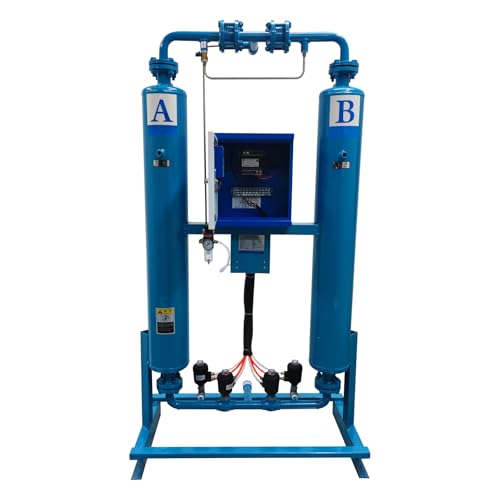

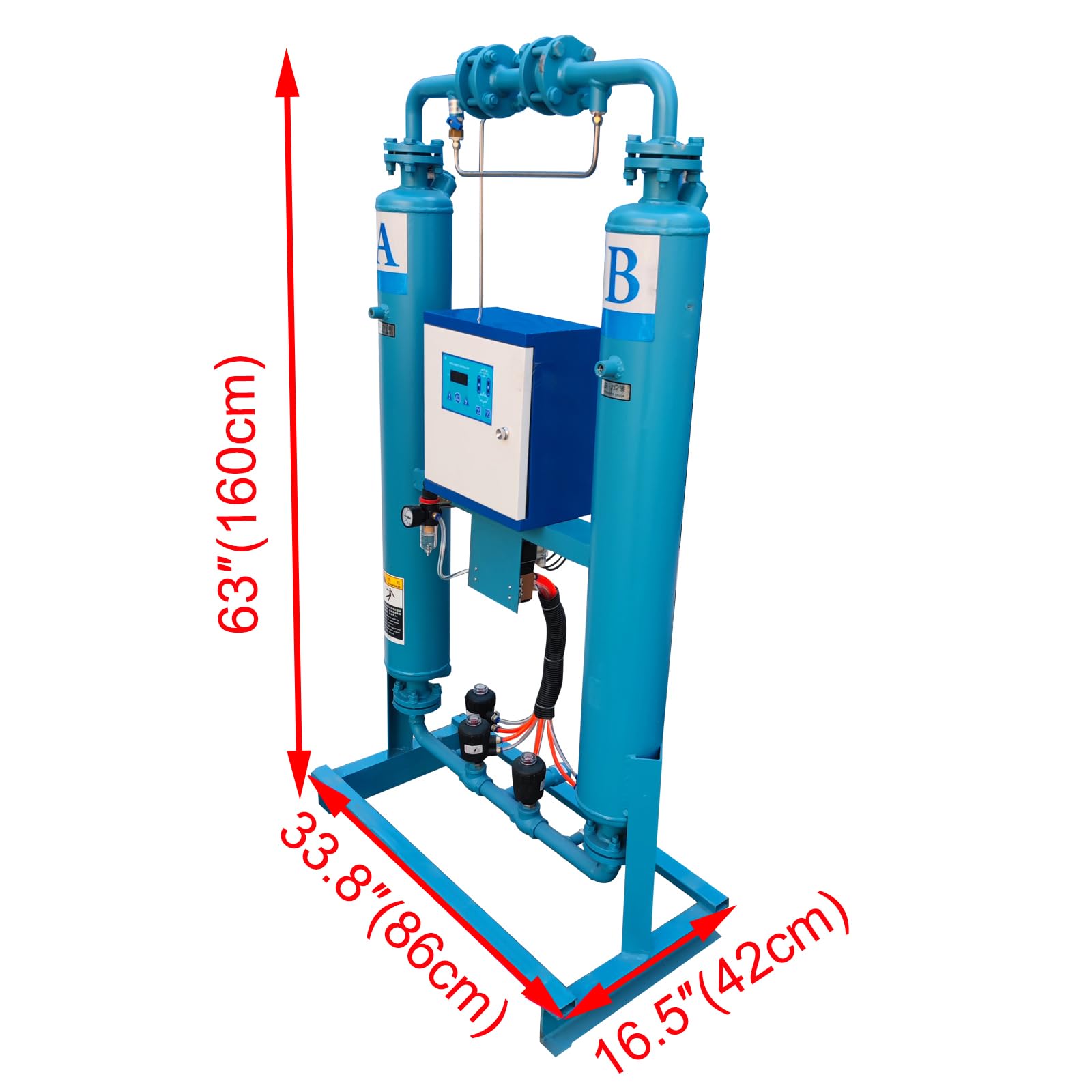

ItemName : WYDDDARY 20FW Thermal-free Adsorption Air Compressor Dryer 110V 100W Inlet and Outlet Ports Threaded Pipe Size 1'' For 7.5-15KW Air Compressor
ItemPackageDimensions_Height : 70.47 inches
ItemPackageDimensions_Length : 38.58 inches
ItemPackageDimensions_Width : 21.65 inches
ItemPackageQuantity : 1
ItemTypeKeyword : industrial-air-motors
Manufacturer : WYDDDARY
PartNumber : CD033276
ProductDescription :

Product parameter:

Treated air volume: 2.5 m3/min

Inlet and outlet dimensions: 1 inch threaded pipe

Bobbin size: 159mm*1080mm

Individual barrel volume: 0.022m³

Power: 100W

No thermal gross weight: 264LBS (120KG)

Adsorbent weight: 88LBS (40KG)

Air consumption: ≈12％

Voltage: 110V

Withstand voltage: 1.0Mpa

Working pressure: 0.4-1.0Mpa

System pressure drop: ≤0.03Mpa

Adsorbent: Aluminium oxide（3-5mm）

Dew point temperature: -20℃ to -40℃

Switching cycle: 300S（adjustable）

Control mode: PLC

Intake temperature: ≤45℃

Intake oil content: ≤0.1PPM

Suppressor: 2PCS of XY-05

Diffuser: 4PCS of DN25

Normally open valve: Pneumatic valve of DN25

Normally closed valve: Pneumatic valve of DN25

Please note:

This machine does not have a power cord, you need to ask the electrician to connect it to the power supply.

ProductSiteLaunchDate : 2025-04-06T22:45:13.319Z
UnspscCode : 40150000
