Specification
AgeRangeDescription : Adult
Brand : PENON
BulletPoint : 10 Pcs CS4391 CS4391KZ CS4391-KZ TSSOP20 24-Bit 192 kHz Stereo DAC with Volume Control IC
BulletPoint1 : Appearance l Design: The Penon Tail USB-C dongle has a rectangular shape and made by aluminum material. It is very solidly built. 53 x 20 x 10mm size, and weights about 20g, is lightweight and compact suitable for daily carry
BulletPoint2 : Technical Performance: Penon TAIL portable amplifier is a HiFi digital audio decoding PCBA solution USB dongle. Built-in USB audio bridge chip and dual-channel low-power high-performance Dual CS43131 DAC decoding chip. Up to support PCM384 kHz/32Bit and DSD256 digital audio codec. Select ultra-low noise power supply and high precision femtosecond crystal oscillator. 4.4 mm balanced output and 3.5 mm stereo output, load support 16Ω-600Ω. Two gain switch control. Volume buttons and play/pause. Excellent compatibility of mobile phones, support PC, Android, iOS device
BulletPoint3 : Sound Features: The Peon TAIL headphone amplifier offering a well-rounded, musical sound with warmth and character. The timbre is natural and realistic. its neutral, warm tone complements everything from classical to rock, providing an engaging listening experience that feels both dynamic and enjoyable across the spectrum
BulletPoint4 : Bass: The Penon TAIL USB-C DAC holds its own with a tight and punchy bass that stays controlled and impactful, adding energy without overwhelming the overall sound balance
BulletPoint5 : Mids: The Penon Tail Type-C DAC amplifier midrange stands out with its clear, natural presentation, delivering smooth and rich vocals along with well-defined instruments. The tonal balance is spot on, with a rich timbre that brings out the true character of each note
BulletPoint6 : Treble: The Penon Tail DAC pocket amp treble maintains a natural tone that blends smoothly with the midrange and bass, ensuring a cohesive, enjoyable sound. Offers a clear, engaging, and energetic treble that enriches the listening experience
BulletPoint7 : Accessories: Penon TAIL Type-C adapter dongle comes with Type-C to Lightning cable , plastic case, pouch
Color : White and Gold
CompatibleDevices1 : Cellphones
CompatibleDevices2 : Earbud/Earphone/Headphone
CompatibleDevices3 : Laptops
CompatibleDevices4 : Tablets
CompatibleDevices5 : Music Player
ConnectivityTechnology : Wired
ExternallyAssignedProductIdentifier : 7844199659501
FrequencyResponse : 20 KHz
HeadphonesEarPlacement : in_ear
HeadphonesFormFactor : In Ear
HeadphonesJack : 3.5/4.4 mm Jack
Impedance : 600 ohm
IncludedComponents1 : Plastic Case
IncludedComponents2 : Type-C to Lightning Cable
IncludedComponents3 : Pouch

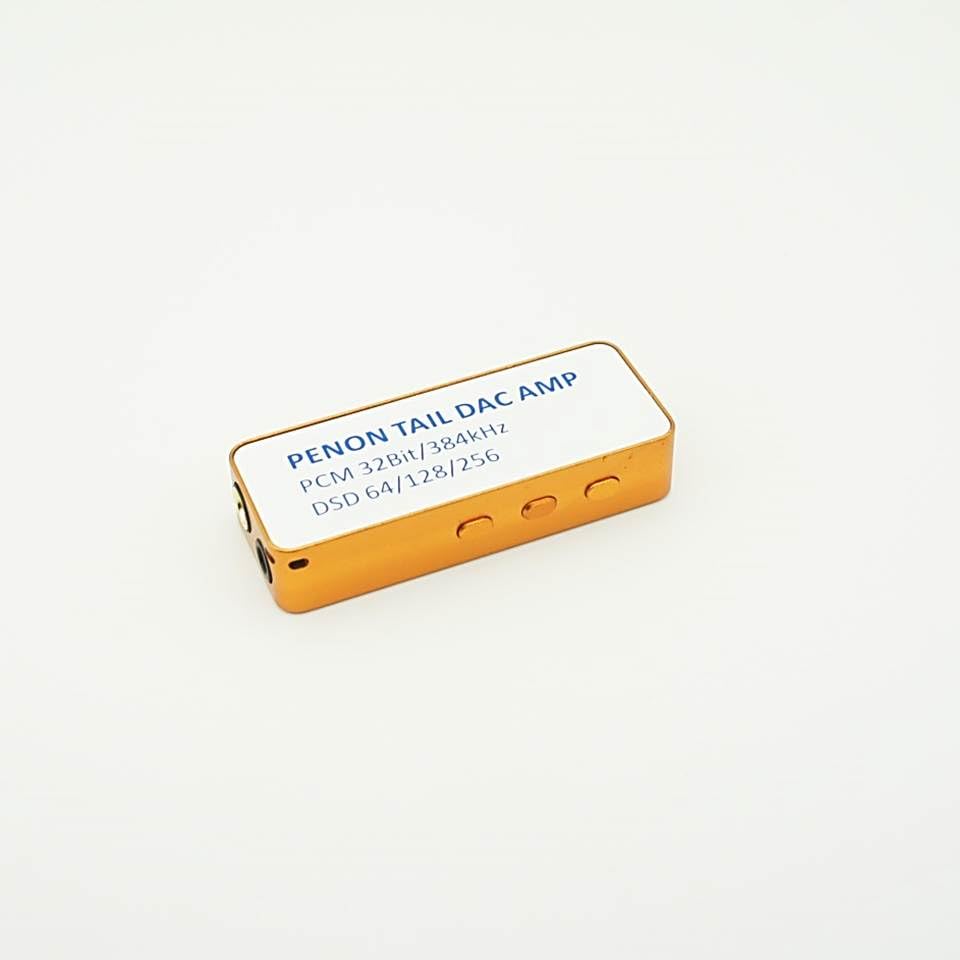

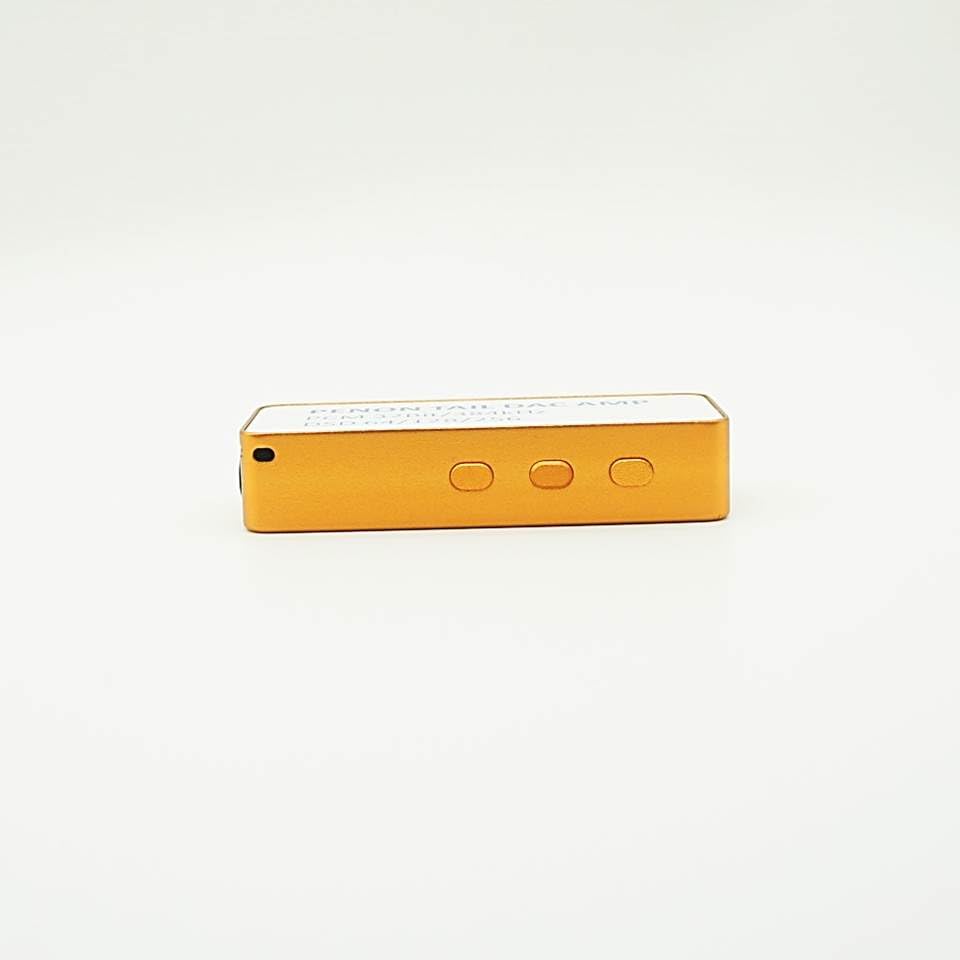

ItemName : Penon Tail Dual CS43131 32Bit/384kHz DSD256 Type-C to 3.5/4.4mm USB-C DAC Dongle HiFi Portable Headphone Amplifier with Gain Button for iOS Devices, with Type-C to Lightning Cable
ItemPackageQuantity : 1
ItemTypeKeyword : headphone-amps
Manufacturer : Penon
Material : Metal
MetalType : other
ModelName : Penon TAIL
ModelNumber : TAIL
NoiseControl : sound_isolation
NumberOfItems : 1
PartNumber : mm2//3055
ProductDescription :

Description

Penon TAIL is a HiFi digital audio decoding PCBA solution USB dongle.

Built-in USB audio bridge chip and dual-channel low-power high-performance Dual CS43131 DAC decoding chip.

Up to support PCM 384 kHz/32Bit and DSD256 digital audio codec. Select ultra-low noise power supply and high precision femtosecond crystal oscillator to further improve the performance parameters and sound quality.

Integrated 4.4 mm all balanced differential output and 3.5 mm stereo output, load support 16Ω ~ 600Ω, the output two gain switch control, can be perfect fit all kinds of earphones.

Volume button and play/pause in-one button and three independent (Vol±, Play/Pause) button compatible design, easy to listen to music control; With PCM and DSD light effect.

Excellent compatibility of mobile phones, it has been verified to support PC, Android, iOS device.

Specification

Model: TAIL

Chip: dual CS43131

DAC: DSD64, DSD128, DSD256

Decoding rate: PCM 384kHz/32Bit and below

USB port: TYPE-C

USB protocol: UAC2.0 protocol, UAC1.0 protocol

Support impedance: 16-600Ω

Output interface: 3.5mm audio + 4.4mm balanced

Frequency response: 20Hz-20kHz

SNR: 130dB@4.4mm/ 4Vrms, 125B@3.5mm/ 2Vrms

THD+N: -103dB@4.4mm /4Vrms, 100B@3.5mm/ 2Vrms

Crosstalk suppression: -135dB@4. 4mm/ 4Vrms, -85B@3.5mm/ 2Vrms

High precision femtosecond crystal oscillator: 100fs

Output performance

3.5mm output(low gain) 32Ω @1kHz, connect with PC

Impedance: 32Ω @1kHz

Output level: minimum: 900mV, 25.3mW; typical: 1000mV, 31.25mW; maximum: 1200mV, 45mW

Frequency response: 20-20kHz

THD+N: minimum -105dB, typical -100dB, maximum -95dB

SNR: minimum 110dB, typical 120dB, maximum 130dB

DNR: minimum 110dB, typical 120dB, maximum 130dB

Crosstalk: minimum -65dB, typical -60dB, maximum -55dB

3.5mm output(high gain) 600Ω @1kHz, connect with PC

Impedance: 600Ω @1kHz

Output level: minimum: 1800mV, 5.4mW; typical: 2000mV, 6.67mW; maximum: 2200mV, 8.07mW

Frequency response: 20-20kHz

THD+N: minimum -105dB, typical -100dB, maximum -95dB

SNR: minimum 115dB, typical 125dB, maximum 135dB

DNR: minimum 115dB, typical 125dB, maximum 135dB

Crosstalk: minimum -95dB, typical -85dB, maximum -75dB

4.4mm balanced output(low gain) 32Ω @1kHz, connect with PC

Impedance: 32Ω @1kHz

Output level: minimum: 1800mV, 101.25mW; typical: 2000mV, 125mW; maximum: 2200mV, 151.25mW

Frequency response: 20-20kHz

THD+N: minimum -105dB, typical -103dB, maximum -100dB

SNR: minimum 120dB, typical 125dB, maximum 130dB

DNR: minimum 120dB, typical 125dB, maximum 130dB

Crosstalk: minimum -110dB, typical -105dB, maximum -100dB

4.4mm balanced output(high gain) 600Ω @1kHz, connect with PC

Impedance: 600Ω @1kHz

Output level: minimum: 3800mV, 24.07mW; typical: 4000mV, 26.67mW; maximum: 4200mV, 29.4mW

Frequency response: 20-20kHz

THD+N: minimum -105dB, typical -103dB, maximum -100dB

SNR: minimum 125dB, typical 130dB, maximum 135dB

DNR: minimum 125dB, typical 130dB, maximum 135dB

Crosstalk: minimum -140dB, typical -135dB, maximum -130dB

Package

Penon TAIL

Plastic case

Pouch

Type-C to Lightning Cable

ProductSiteLaunchDate : 2024-12-21T16:29:40.323Z
RecommendedUsesForProduct : Connect with earbud, headphone, earphone, IEMs, laptop, music player, smartphone, tablet, etc.
SpecificUsesForProduct1 : Gaming
SpecificUsesForProduct2 : Professional
SpecificUsesForProduct3 : Travel
Style : Classic
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredHasProductIdentifierExemption : 1
TargetGender : unisex
UnitCount : 1
UnspscCode : 52161500
WarrantyDescription : 1 Year Warranty
