Specification
Brand : JESSINIE
BulletPoint1 : 【Voltage Conversion】Easily bridge the communication gap between 3.3V and 5.0V devices. for microcontroller boards, sensors, and other equipment operating at different voltage levels.
BulletPoint2 : 【Stable Performance】Enjoy reliable communication with a stable baud rate up to 28800bps. The module also features a power indicator and reverse connection protection for added safety.
BulletPoint3 : 【Breadboard Compatibility】Designed to fit directly into a breadboard, making it incredibly easy to integrate into your projects. Provides up to 150mA external current from its self-contained 3.3V output.
BulletPoint4 : 【Versatile Applications】for 5V and 3.3V microcontroller serial communication, UART, IIC, 1-wire, SPI, and more. Solution for various voltage level conversions in your projects.
BulletPoint5 : 【User-Friendly Connection】Simple and intuitive wiring instructions. Connect 5V and 3.3V systems easily with clear pin mappings. Ensure both systems' ground connections for optimal performance.
CustomerPackageType : Standard Packaging
ExternallyAssignedProductIdentifier1 : 794419442420
ExternallyAssignedProductIdentifier2 : 0794419442420
IncludedComponents : Shifter Module
InterfaceType : I2C

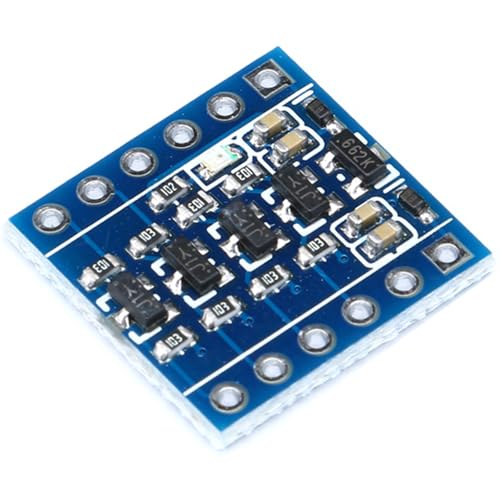

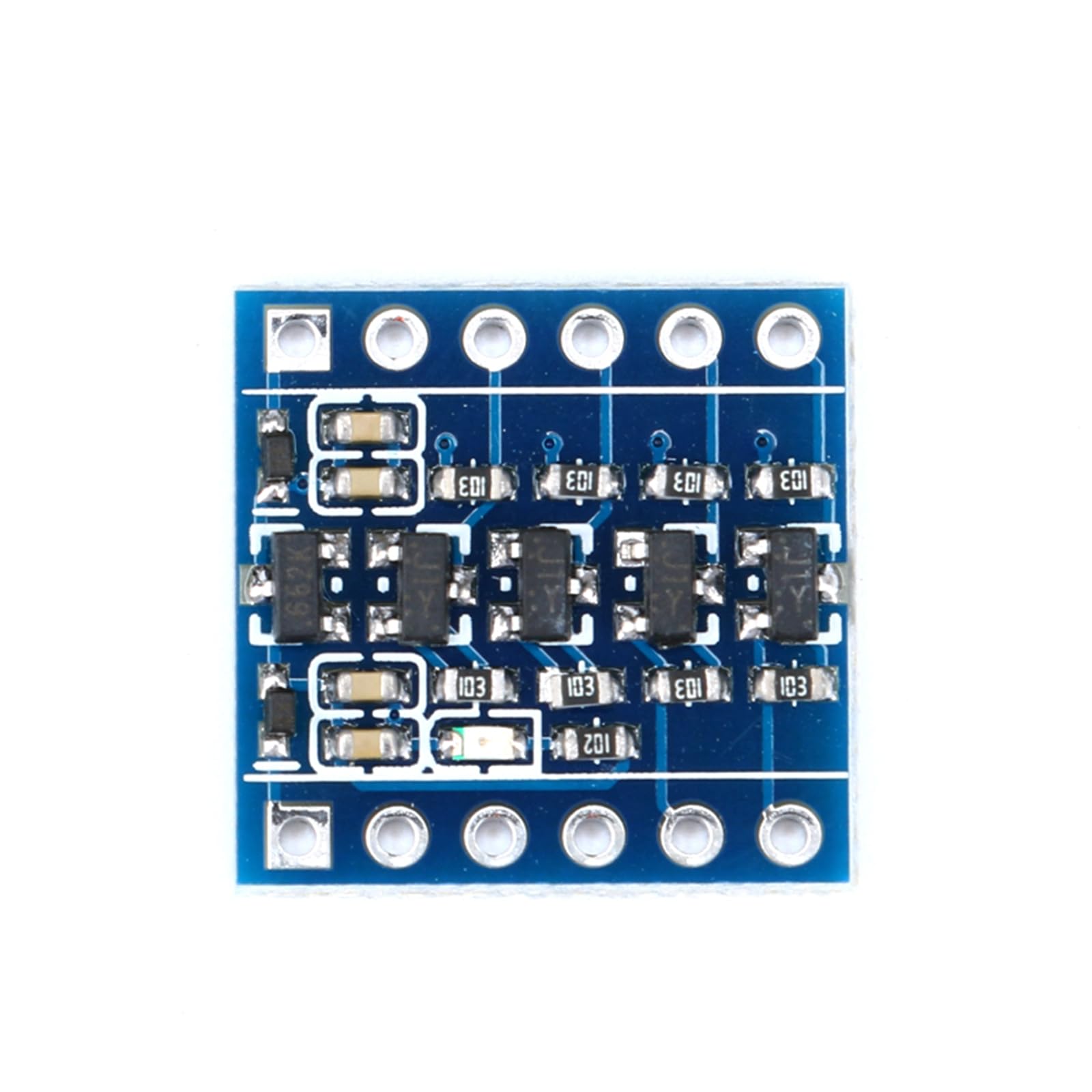

ItemName : JESSINIE 15 Pcs 4 Channels 3.3V-5V Logic Level Converter Bi-Directional IIC I2C UART SPI TTL Shifter Module for Arduino
ItemPackageDimensions_Height : 16.9 centimeters
ItemPackageDimensions_Length : 2.1 centimeters
ItemPackageDimensions_Width : 11.5 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : analog-to-digital-converters
Manufacturer : JESSINIE
Material : Copper
MaximumSupplyVoltage : 5 volts_of_direct_current
MinimumSupplyVoltage : 3.3 volts_of_direct_current
ModelNumber : MO-89
MountingType : Breadboard
NumberOfChannels : 4
NumberOfItems : 15
NumberOfPins : 26
PartNumber : IIC I2C
ProductDescription : Attention:

1, if the power supply of the high-voltage area and low-voltage area have been common ground, the GND in this module only needs to be connected to 1 ground.
2, the conversion module is equivalent to a straight line, each port corresponds to each other, only the voltage on both sides is not the same, so as to achieve the communication between different levels.
3, this module can not be used as a voltage regulator or transformer function, can only be used for small current communication between IO port levels.
4、This module has no soldered pins, but has matching.

Product Characteristics:

Due to some microcontroller development board and equipment is 3.3V work, and there are also microcontroller development board and equipment, sensors, etc. is the 5.0V working power, so when the two need to communicate, there is a working voltage inconsistency, so that the user is not convenient to use. This product is designed to address this issue and solve this problem. This module provides feasibility in different devices of 3.3V and 5.0V and plays the role of bridging.


Product Parameters:

Self-contained 3.3V voltage output with power indicator, power input with anti-reverse connection protection, and can provide no more than 150mA external current. Stable communication baud rate within 28800bps. Module is compatible with breadboard, can be directly plugged into the breadboard to use.

Product application scope:

1, 5V microcontroller and 3.3V microcontroller serial communication.

2, 3.3V serial port downloader and 5V microcontroller serial port communication.

3, 5V microcontroller and 3.3V application module serial communication.

4、It can realise 5V and 3.3V level communication of serial port directly.

5, can achieve UART, IIC, 1-wire, SPI and other bus signals 3V-5V level bidirectional conversion.
ProductSiteLaunchDate : 2024-08-02T08:20:48.229Z
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredHasProductIdentifierExemption : 1
UnspscCode : 43201500
UpperTemperatureRating : 85 degrees_celsius
Voltage : 3.3 volts_of_direct_current
Wattage : 0.5 watts
