Specification
Brand : Tcwhniev
BulletPoint1 : 【0°- 60° Micro Adjustable】This angle gauge can be micro adjusted from 0° to 60°, and has a stop switch. The angle can be read with an accuracy of 10', ensuring that the working angle is accurate and controllable.
BulletPoint2 : 【Cursor Indication Adjustment】The angle can be adjusted steplessly through the cursor indication, and then fixed with screws to produce processing and inspection workpieces with various fixed angles.
BulletPoint3 : 【High Precision】The nickel plating, rust-proof parallelism and verticality of each working surface are precision ground to 0.01mm to ensure high precision in workpiece processing.
BulletPoint4 : 【Widely Uses】This product is suitable for milling machines, planers, grinders, and drill machines to adjust the angle of the blade and perform workpiece processing after the workpiece is fixed on the fixture, such as processing bevels, oblique holes, etc.
BulletPoint5 : 【After-sales】If you have any questions, please get in touch with us, our service team will provide you with a professional and satisfactory service.
Color : Black+Black
ExternallyAssignedProductIdentifier : 5449228801122
ExternallyAssignedProductIdentifier1 : 0663566009834
ExternallyAssignedProductIdentifier2 : 663566009834
IncludedComponents : 1×Angle Gauge 1×Wrench
ItemForm : Rod

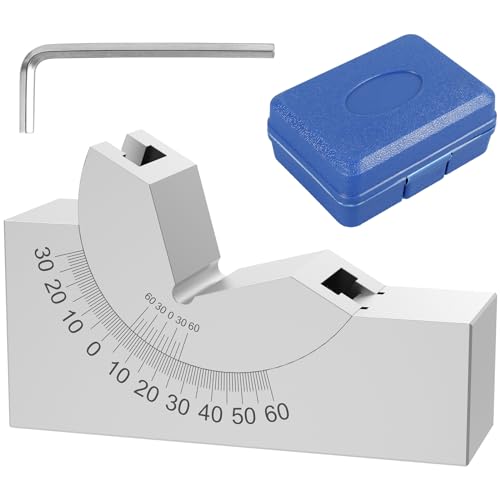

ItemName : High Abrasion V Block Angle Gauge AP25 0°- 60° Adjustable Micro Angle Gauge Multifunctional Angle V Block Milling High Precision Angle Gauge Block with Wrench for Milling Machine Planer
ItemPackageDimensions_Height : 2 centimeters
ItemPackageDimensions_Length : 18 centimeters
ItemPackageDimensions_Width : 7 centimeters
ItemPackageQuantity : 1
ItemShape : L-shape Or Angle Shape
ItemTypeKeyword : angle-gauges
Manufacturer : HUASANX_US
Material : hot_rolled_steel_A36
MeasurementAccuracy : 97%
ModelName : V Block Angle Gauge High Abrasion V Block Angle Gauge
ModelNumber : A
NumberOfItems : 1
PartNumber : MKT-AM-MTL-CS-AN-14-4-36
PowerSourceType : hand_powered
ProductDescription :

Parts List:

1×Angle Gauge

1×Wrench

Specification:

Product Name: V Block Angle Gauge

Material: 45# Steel

Color: Silver

Size: 75×25×36 MM/3.0×1.0×1.4 IN, 25 MM

Technical Indicators:

1. When measurement surface A is parallel to the datum surface and the measurement surface B is perpendicular to the datum surface, the "0" line of the cursor does not coincide with main scale line "0" is greater than 3', and the curvature of both ends of the cursor is consistent with the main scale line. The scales are different, and the coincidence is not greater than 5'; on the other hand, tighten the screws so that 0° line of the main scale is aligned with cursor "0" line, parallelism between A measurement surface and the reference surface is not greater than 0.01 mm, and the parallelism between B measurement surface and the vertical surface shall not be greater than 0.01 mm;

2. In the fixed state, the indication error of the adjustable angle gauge shall not be greater than ±10'.

Notes:

1.There may be slight differences between the picture and the actual color of the commodity. We will try our best to show you the exact color.

2.Please allow slight dimension difference due to manual measurement.

ProductSiteLaunchDate : 2024-03-11T10:16:47.637Z
Size : 75 * 25 * 36mm / 3 * 1 * 1.4in
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredHasProductIdentifierExemption : 1
UnitCount : 1
