Specification
Brand : EBYTE
BulletPoint1 : Support BDS/GPS/GLONASS/GALILEO multi-system joint positioning and single-system independent positioning;Support BeiDou B1I and B1C; ;
BulletPoint2 : Support A-GNSS service; Built-in reset controller;Support UART interface; With active antenna detection and protection; The maximum positioning information update rate in single-system independent positioning mode can reach 25Hz; Support PPS output
BulletPoint3 : Output format: Support NMEA 4.11; High sensitivity: cold start -148dBm, hot start -159dBm, recapture -160dBm, tracking -167dBm;
BulletPoint4 : The software and hardware are compatible with those of other manufacturers, which greatly reduces the user's development time cycle;
BulletPoint5 : Application Scenario -Vehicle positioning and navigation equipment;Wearable devices, such as GPS trackers;UAV positioning, industrial computers, etc;Industrial equipment that requires GNSS positioning or navigation; Asset tracking;
BulletPoint6 : Total Lenght:Approximately 119 cm ( 46.8 )
BulletPoint7 : Installation Instructions:Not Included
BulletPoint8 : Built Standard: Care to Meet Industry Standards for Quality Control, Ensuring Reliable and Consistent
FrequencyBandClass : single_band
IncludedComponents : no

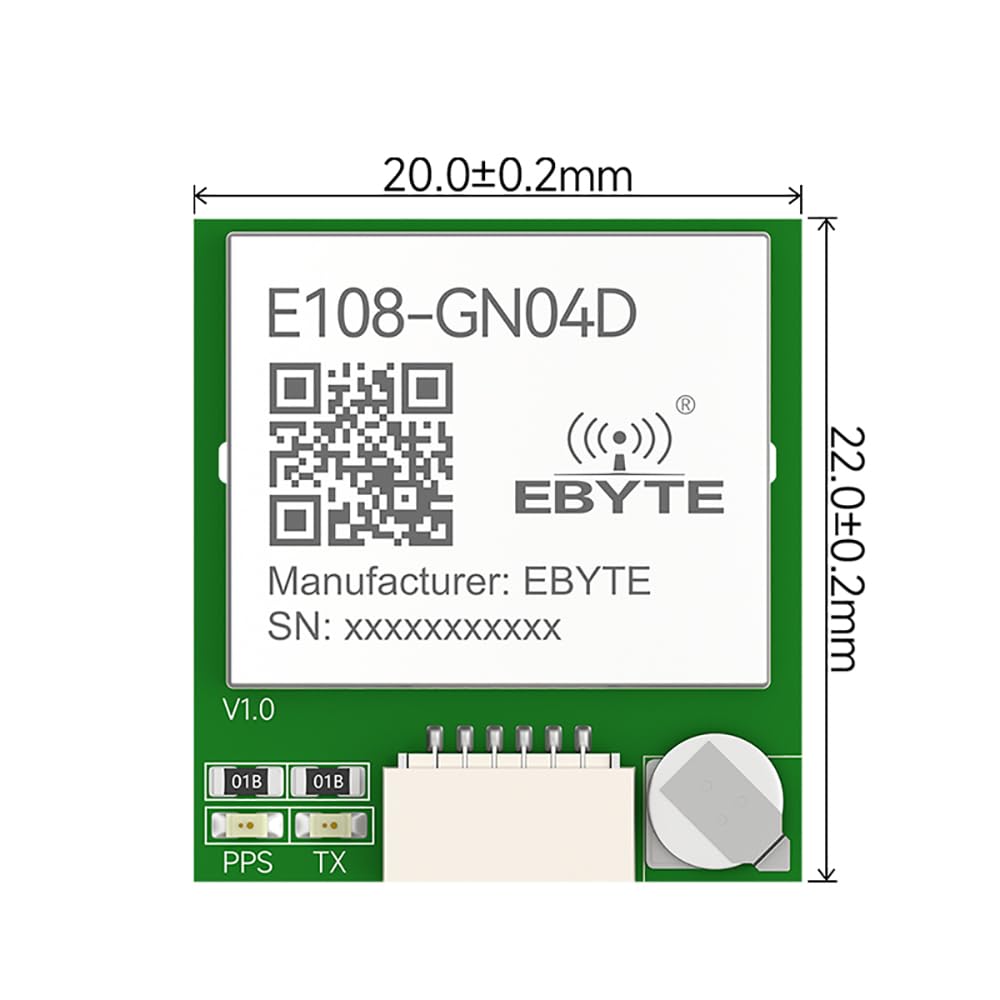

ItemName : BDS GPS GNSS Galileo Satellite Positioning Module UART E108-GN04D Low Power Small Size Time Service LNA Ceramic Antenna
ItemPackageDimensions_Height : 4 centimeters
ItemPackageDimensions_Length : 15 centimeters
ItemPackageDimensions_Width : 10 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : gps-antennas
Manufacturer : EBYTE
ModelName : gps-antennas
ModelNumber : A86153-2AACNFFH2C
NumberOfBoxes : 1
NumberOfItems : 1
PartNumber : HKWA86153-2AACNFFHGG2C
ProductDescription : The E108-GN04D is a high-performance, highly integrated, low-power, low-cost multi-mode satellite positioning and navigation module that supports BDS/GPS/GLONASS/GALILEO satellite positioning. It is with small in size and low power consumption. It can be used in GNSS positioning applications such as vehicle navigation, smart wearables, and drones. It also provides software and hardware interfaces that are compatible with other suppliers’ modulers, greatly reducing the user's development time cycle. The module adopts the integrated design of RF base band, integrating DCDC, LDO, RF front end, low power application processor, RAM, Flash storage, RTC and power management, etc. It can power RTC and backup RAM through button battery or farad capacitor to reduce the first positioning time. It also supports multiple ways to connect with other peripherals, supports UART, GPIO interface, if you need I2C, SPI interface, please contact customer service for customization.


ProductSiteLaunchDate : 2024-09-23T05:34:25.613Z
SpecificUsesForProduct : Business
SupplierDeclaredDgHzRegulation : unknown
SupplierDeclaredHasProductIdentifierExemption : 1
UnspscCode : 43221700
WarrantyDescription : 1 YEAR
