Specification
Brand : GODIYMODULES
BulletPoint1 : 3.5mm audio interface, U disk interface, and Micro USB download interface for seamless connectivity.
BulletPoint2 : 40*40*9mm size with a built-in 5W Class D amplifier, suitable for small spaces and driving 4ohm speakers.
BulletPoint3 : UART serial port control, I/O trigger, and One_line single bus serial port
BulletPoint4 : Extensive Memory Capacity:Max support 32Gbit(4MByte) TF card memory, allowing for a vast library of audio.
BulletPoint5 : Mp3|Audio Developer|Versatile Audio Format Support:Supports MP3 and WAV decoding, ensuring compatibility with a wide range of audio files.
IncludedComponents : 2pcs
ItemName : 2PCS Voice Sound Playback Module MP3 Trigger Player Module UART I/O Trigger Class D Amplifier Board 5W 8M Storage SD/TF Card for Arduino
ItemPackageDimensions_Height : 2 centimeters
ItemPackageDimensions_Length : 10 centimeters
ItemPackageDimensions_Width : 5 centimeters
ItemTypeKeyword : electronic-component-audio-amplifiers
Manufacturer : GODIYMODULES
MaximumSupplyVoltage : 5 volts_of_direct_current
ModelNumber : Mod-5wMp3-002
MountingType : Surface Mount
NumberOfChannels : 1
NumberOfItems : 2
OperatingTemperature : -20 degrees_celsius
OutputPower : 5 watts
PartNumber : Mod-5wMp3-002
ProductDescription :

1.Description:

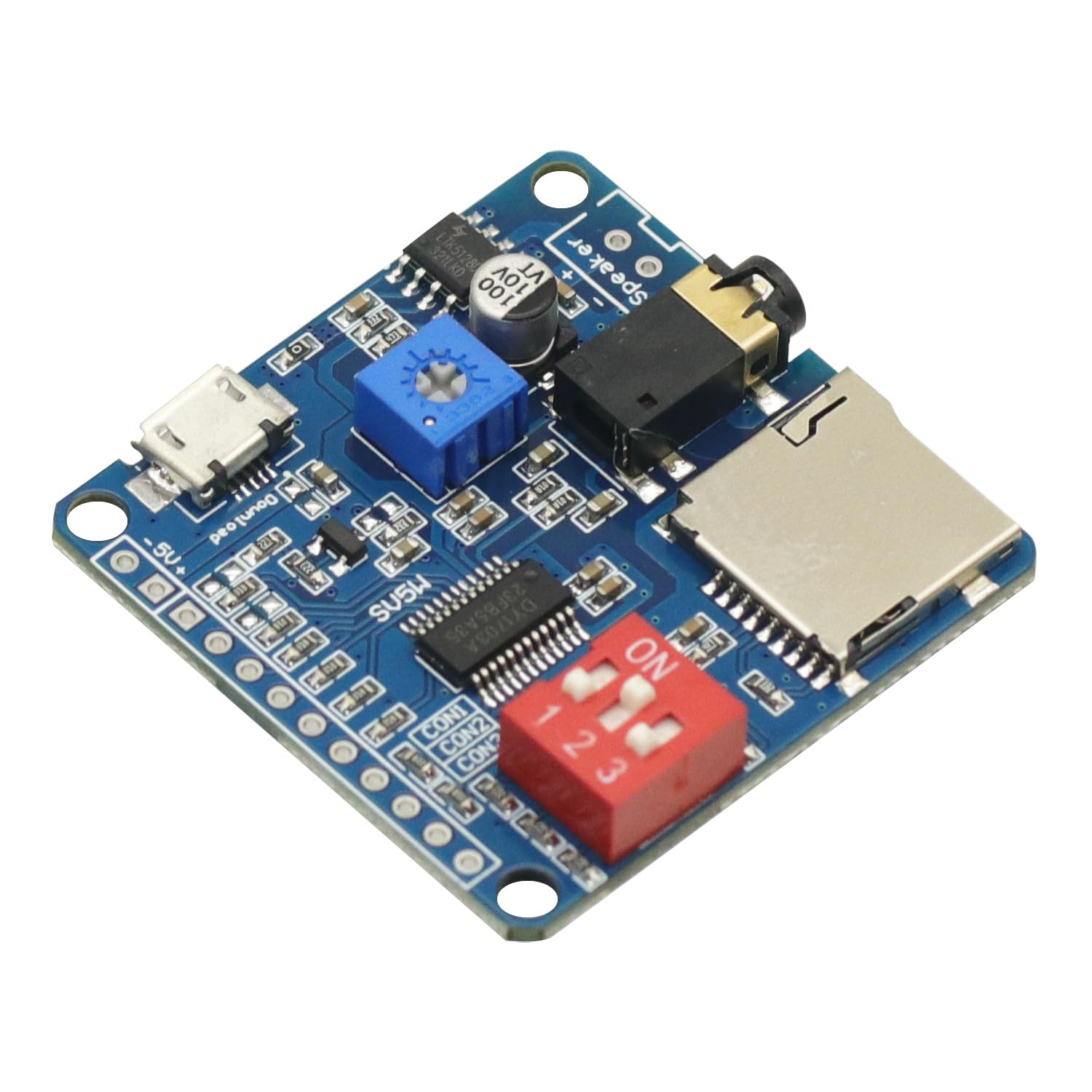

DY-SV5W is an intelligent voice module developed by the division independently. It integrates I/O subsection triggering, UART serial port control, ONE_line single bus serial port control. Onboard 5W Class D amplifier circuit and can directly drive 4ohm 3~5W speakers.Support MP3,WAV decoding format. Max support 32Gbit(4MByte) TF card memory, can connect the computer to update TF card to store audio files via USB cable.3.5mm audio interface, U disk interface,Micro USB download interface, button module in one module



2.Features:



1>.Support MP3 and WAV decoding format.

2>.Support sampling frequency (KHz) : 8/11.025/12/16/22.05/24/32/44.1/48.

3>.24-bit DAC output, dynamic range support 90dB, SNR support 85dB.

4>.Support the FAT16/FAT32 file system, with the maximum support 32Gbit(4MByte) TF card and 32Gbit(4MByte) U-disk.

5>.Support UART serial port control voice broadcast function.It can control playback, pause, selections, turn up and down volume and other functions, the largest selection of 65535 songs.The baud rate is 9600 bit/s.

6>.Support I/O trigger function, 8bit I/O ports can trigger 8 musics or 8 I/O combinations to trigger 255 songs.

7>.Support One_line single bus serial port control, which can control playback, pause, selection, turn up and down volume and other functions.

8>.Support 3 configuration I/O for mode selection to make 7 work mode.

9>.Built in 5W Class D amplifier circuit and can directly drive 4ohm 3~5W speaker.



3.Parameters:



1>.Product Name:DY-SV5W Voice Playback Module

2>.Product Number:DY-SV5W

3>.Work Voltage:DC 5V

4>.Working Temperature range:-20~85 Celsuis

5>.Working Humidity range:0%-95%RH

6>.Size :40*40*9mm



ProductSiteLaunchDate : 2024-12-27T09:19:53.585Z
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredHasProductIdentifierExemption : 1
UnspscCode : 43201500
Voltage : 5 volts_of_direct_current
