Specification
Brand : Hyuduo
BulletPoint1 : [Versatile Usage] Ideal for hf and vhf receiver rf-if frequency, serving as the second mixer in dc baseband conversion, and quadrature demodulation.
BulletPoint2 : [Easy Connection Design] Designed for easy use with single power supply, rf, if, and lo ports with dc isolation capacitor for smooth
BulletPoint3 : [Shielding and Isolation ] Eliminates shielding and isolation issues, improving system performance and reducing costs compared to passive mixers.
BulletPoint4 : [High Point] Features +24 dbm third-order intermodulation point, achieving -10 dbm lo power without requiring a high power lo drive.
BulletPoint5 : [Low Dc Offset Characteristics] The amplifier excels in dc-baseband frequency conversion and quadrature amplitude demodulation, enhancing performance.

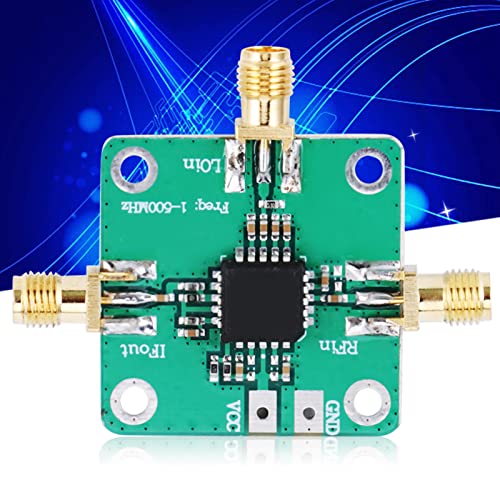

ItemName : RF Mixer Module AD831 Amplifier Board Converter 10 dBm LO Power 24 dBm Intermodulation Point Suitable for HF and VHF ReceiverRF IF Frequency
ItemPackageDimensions_Height : 2 centimeters
ItemPackageDimensions_Length : 6 centimeters
ItemPackageDimensions_Width : 6 centimeters
ItemTypeKeyword : electronic-component-audio-amplifiers
Manufacturer : Hyuduo
Material : Copper
ModelName : Hyuduo32qh4sur5v
ModelNumber : Hyuduo32qh4sur5v
MountingType : Surface Mount
PartNumber : Hyuduo32qh4sur5v
ProductDescription : [High Point] Features +24 dbm third-order intermodulation point, achieving -10 dbm lo power without requiring a high power lo drive.
[Shielding and Isolation ] Eliminates shielding and isolation issues, improving system performance and reducing costs compared to passive mixers.
[Low Dc Offset Characteristics] The amplifier excels in dc-baseband frequency conversion and quadrature amplitude demodulation, enhancing performance.
[Versatile Usage] Ideal for hf and vhf receiver rf-if frequency, serving as the second mixer in dc baseband conversion, and quadrature demodulation.
[Easy Connection Design] Designed for easy use with single power supply, rf, if, and lo ports with dc isolation capacitor for smooth operation.

Spec:
Item Type: RF Mixer Module
RF Input: 1-500mhz
RF input + 10dBm (1dB compression point)
Lo Input: 1-500mhz
Lo Input: - 10dBm
If Output: 1-200mhz
Power Supply Voltage: 9 -- 11V single ended power supply

Package List:
1 x RF Mixer Module

ProductSiteLaunchDate : 2024-04-21T17:21:16.168Z
UnspscCode : 53120000
