Specification
Brand : AB Tools
BulletPoint1 : 1 x double / twin parabolic leaf spring
BulletPoint2 : 1 x rubber bump stop
BulletPoint3 : 1 x base plate
BulletPoint4 : 2 x U Bolts (complete with nuts)
BulletPoint5 : See Full description for full details
Color : Multicolor
CompatibilityOptions : 2" receivers
CompatibleWithVehicleType1 : Truck
CompatibleWithVehicleType2 : RV
ExternallyAssignedProductIdentifier : 5056133375695
ExternallyAssignedProductIdentifier1 : 0685364811587
ExternallyAssignedProductIdentifier2 : 685364811587
FinishType : Powder Coated
FitType : Trailer

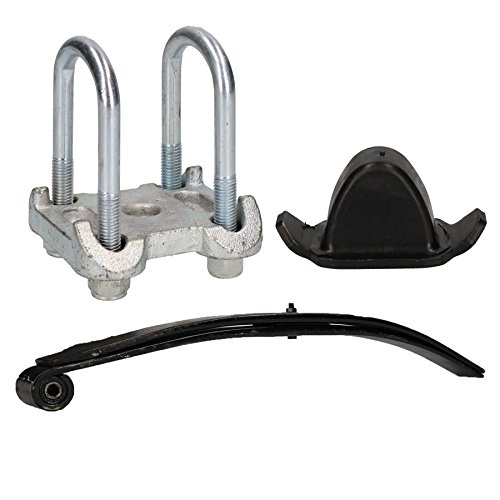

ItemName : Twin Parabolic Leaf Spring Bump Stop and U Bolts and Plates for Ifor Williams
ItemPackageDimensions_Height : 37.3 centimeters
ItemPackageDimensions_Length : 18.7 centimeters
ItemPackageDimensions_Width : 31.7 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : trailer-axles
Manufacturer : AB Tools
Material : Alloy Steel
ModelName : Gooseneck Trailer Hitch
ModelNumber : PS-001
NumberOfItems : 1
PartNumber : BS050_BS097_BS152_2PK_BS149
ProductDescription : INCLUDES

1. 1 x double / twin parabolic leaf spring
2. 1 x rubber bump stop
3. 1 x base plate
4. 2 x U Bolts (complete with nuts)

Suitable for parabolic leaf springs (both single & twin)

LEAF SPRING

Double leaf parabolic road spring

Suitable for all Ifor Williams which have a double leaf spring

Bush included takes 12mm shackle pins

Rubber insert with steel centre bush

Replacement for ifor Williams part number C90003

Recommended that springs are changed in axle sets only & that both leaf springs are changed at the same time

DIMENSIONS

Internally - 790mm
Externally (along the flat) - 840mm

RUBBER BUMP STOP

Suitable for most trailers from 1994 onwards

1 bump stop is required per leaf spring

Equivalent to Ifor Williams part number C80315

Rubber body & metal bottom for strength & durability & preventing damage to the leaf springs

Listing is for 1 single bump stop

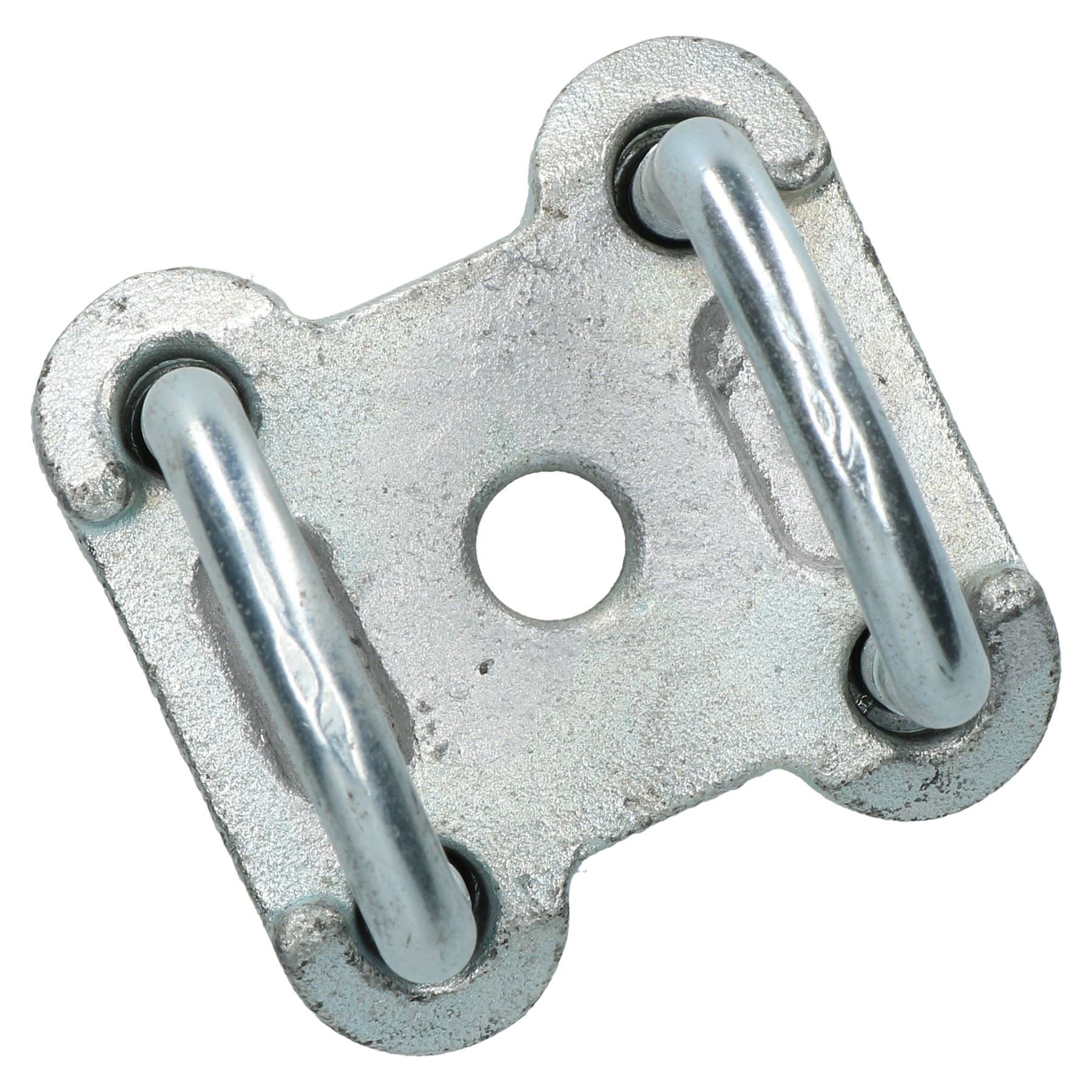

BASE PLATE

Base clamp suitable for securing the parabolic leaf springs to trailers

Ifor Williams equivalent part number C31270

Can be used for other purposes as well as for holding leaf springs

DIMENSIONS OF THE BASE PLATE / CLAMP

Plate dimensions 100x100mm
Hole Centres - 65mm
Diameter of the holes -15mm
Plate thickness -14mm

U BOLTS

Large U Bolt suitable for twin/double parabolic Ifor Williams leaf springs

Suitable for higher load and more critical areas

Complete with nyloc nuts

SPECIFICATIONS OF THE U BOLTS

Total height (this is an internal measurement of the U Bolt to the end of the thread) - 140mm
Total width (internally) - 55mm
Total thread length - 60mm
Thread size - M12
Height form the top to the bottom - 150mm


PullForce : 20000 pounds
Size : Add Ubolts & Springs
Style : Drawbar Hitch
SupplierDeclaredDgHzRegulation : not_applicable
UnspscCode : 31161500
WarrantyDescription : LIFETIME WARRANTY Products purchased on Amazon directly from PSAUTO include limited lifetime warranty coverage against defects in factory workmanship and materials. To view the complete terms and conditions of this Limited Warranty, please visit https://proshopauto.com/warranty This Limited Warranty is provided only to the original purchaser, and applies only to the original installation. This Limited Warranty is the sole and exclusive warranty provided. Remedies under this Limited Warranty are limited to repair or replacement. PSAUTO HAS NO RESPONSIBILITY OR LIABILITY FOR ANY INDIRECT, SPECIAL, CONSEQUENTIAL OR PUNITIVE DAMAGES. To make a warranty claim, please email hello@proshopglobal.com or call or text 1-888-421-3737 and follow the claim instructions provided.
