Specification
Brand : HSH-Flo
BulletPoint : Commercial Grade, Lead Free Brass, Heavy Duty
BulletPoint1 : ◎2 Way 2" NPT Full Bore 50mm Stainless Steel Lead Free Valve Body, Suitable For Portable Water;
BulletPoint2 : ◎Wide Range Working Voltage Design, Will Working At Voltage From 9-24VAC And 9-36VDC, Including 12VDC 24VDC 24VAC;
BulletPoint3 : ◎Limit Switches Built-In, Auto Cut Off Current When Arrived At Place(0Ma When Fully Open or Fully Closed),Saving And Long Life;
BulletPoint4 : ◎Only Connecting 2 Wires(Red/Black) To The Power Supply Then The Valve Can Be Opened, Normally Closed Design(Built-In Capacitor Return), Will Return To Original Position When Power Off/Power Failed;
BulletPoint5 : Suitable Model: 2-piece set of 1-inch UPVC ball valves with EPDM O-rings, with thickened pipe walls to substantially increase durability, making the valves both reliable and easy to operate, providing users with unparalleled convenience and stability.
BulletPoint6 : DURABLE MATERIAL: This 1-inch size slide valve is meticulously crafted with high-quality UPVC material to ensure superior durability and long life.
BulletPoint7 : FULL BORE DESIGN FOR FASTER FLOW TRANSMISSION: This PVC ball valve features a full bore (full port) design that ensures water flow is maximized for efficient circulation.
BulletPoint8 : Widely Praised: we always put customer satisfaction in the first place. If you have any dissatisfaction or problem with PVC Union Ball Valve, please feel free to contact us.
Color : As Picture Show
ConnectorType : Threaded
ExteriorFinish : Stainless Steel
ExternallyAssignedProductIdentifier1 : 600136280590
ExternallyAssignedProductIdentifier2 : 0600136280590
ExternallyAssignedProductIdentifier3 : 0046843675098
ExternallyAssignedProductIdentifier4 : 0212281366496
GpsrSafetyAttestation : 1
IncludedComponents : pvc ball valve
IncludedComponents1 : Actuator
IncludedComponents2 : Valve Body
ItemDisplayDimensions_Length : 6.5 inches
ItemDisplayWeight : 2 pounds

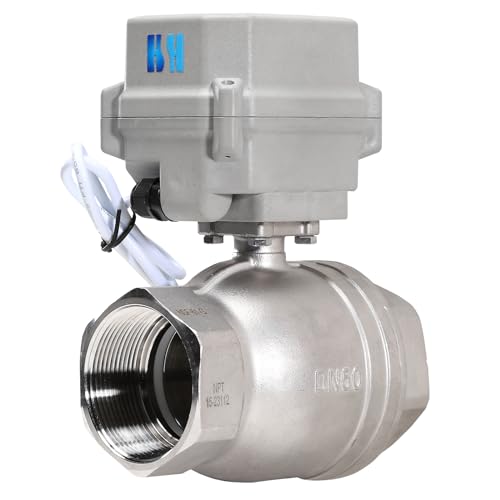

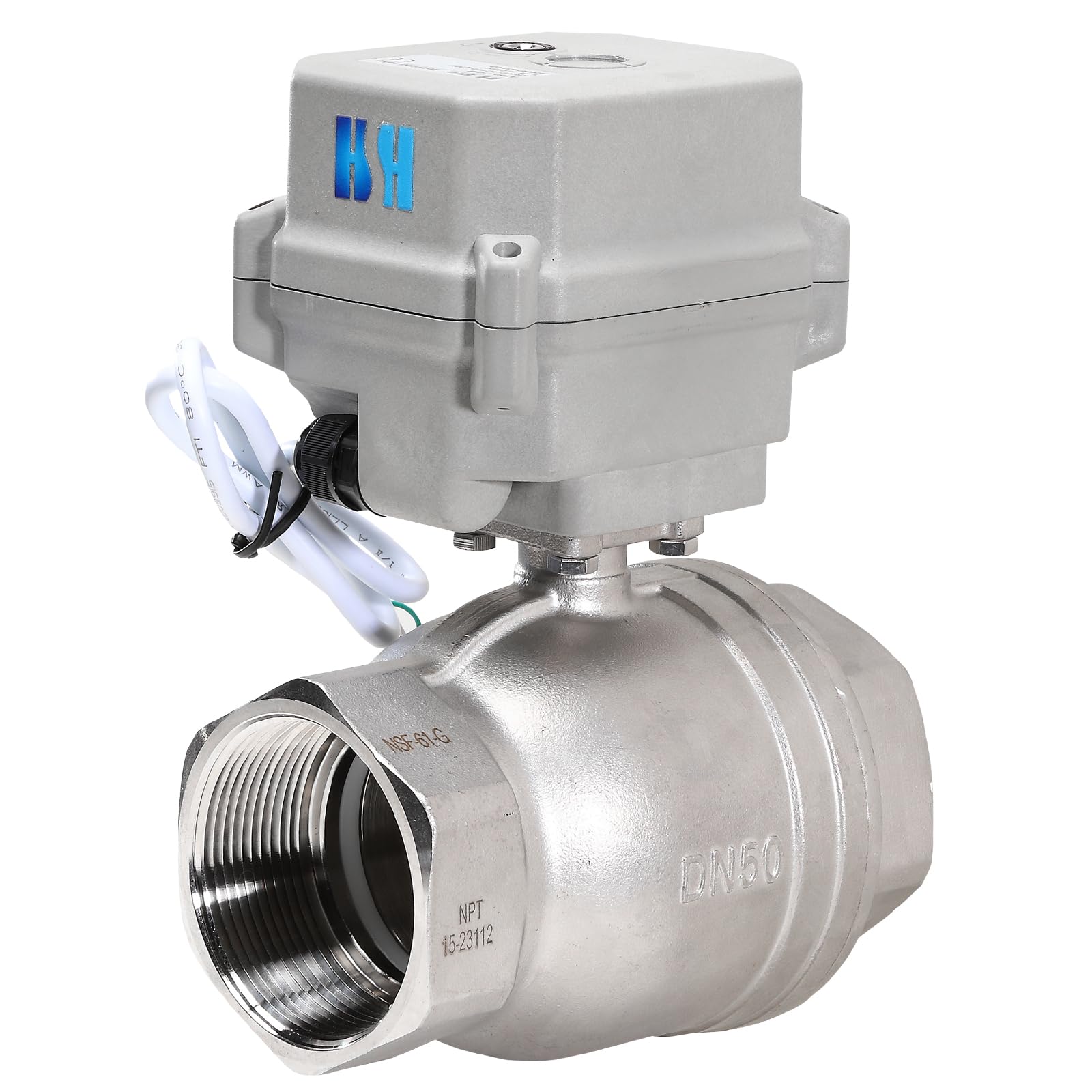

ItemName : HSH-Flo 2" DN50 NPT 2 Way 12VDC 9-24VAC/DC Stainless Steel Normally Closed Electrical On/Off Motorized Ball Valve
ItemPackageDimensions_Height : 21.0058 centimeters
ItemPackageDimensions_Length : 10.8966 centimeters
ItemPackageDimensions_Width : 15.0876 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : industrial-ball-valves
Manufacturer : SuZhou HSH-Flo Equipments Co.,Ltd
Material : PVC
Material1 : Plastic
Material2 : Stainless Steel
MaximumOperatingPressure : 145 pounds_per_square_inch
ModelName : A150-T50-S2-B
ModelNumber : 2 inch
NumberOfBoxes : 1
NumberOfItems : 1
NumberOfPorts : 2
PackageLevel : unit
PartNumber : S2-X50N-502B
ProductDescription :

Technical Parameters:
◎Actuator Type:ISO5211 Standard Actuator
◎Valve Body Diameter: 2 inch NPT;
◎Valve Body Material: Stainless Steel 304;
◎Actuator Material: Engineering Plastics;
◎Sealing Material: FKM and PTFE;
◎Wiring Diagram: CR202-B (2 Wires Auto Return When Power Off);
◎Working Voltage: AC/DC9-24V;
◎Working Current: ≤1.0 Amps;
◎Working Medium: Fluid, Air;
◎Working Pressure: Max 145 Psi;
◎Switching Time: ≤15 sec.;
◎Life Time: 70000 times (Testing pressure is 0.4MPa, medium is water)
◎Actuator Rotation Angle: 90°;
◎Torque Force: 15 N.m.;
◎Cable Length: 0.5m;
◎Environment Temperature: -15℃ ~ 50℃;
◎Liquide Temperature: 2℃ ~ 90℃;
◎Switch Indicator: YES
◎Manual Override: YES;
◎Protection Class: IP67

Application:
◎HVAC;
◎Water Treatment;
◎Chemical Process;
◎Air Compressor Drainage;
◎Automatic Control System;
◎Solar Hot Water Engineering;
◎Watering Flowers, Regular Humidification;
◎Air Conditioning Automatically Humidifies;
◎Automatic Control Of Small Industrial Equipment;
◎Environmental Protection, Efficient Water-saving;
◎Replace Solenoid Valve (Especially when solenoid valve cannot work reliably);

Manual Override Instructions:
◎In case of anelectric supply failure, it is possible to operate the actuator manually.
◎Power must in off position when start the manual override.
◎Gently putt up the knob about 3mm, then revolve the knob around left and right to control the valve open or close.
◎When the red needle in the indicator pointing to "S", means the valve is closed; When pointing to "O", means the valve is open.
◎After finish the manual override operation, must press down the knob, so that for the normal electric operation.

ProductSiteLaunchDate : 2021-05-28T19:11:54.814Z
Size : 0.75 Inch
SpecificationMet : CE
Style : /
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredHasProductIdentifierExemption : 1
UnitCount : 1
UnspscCode : 40141600
ValveType : Ball Valve
Voltage : 413 volts
