Specification
Brand : Lufasa

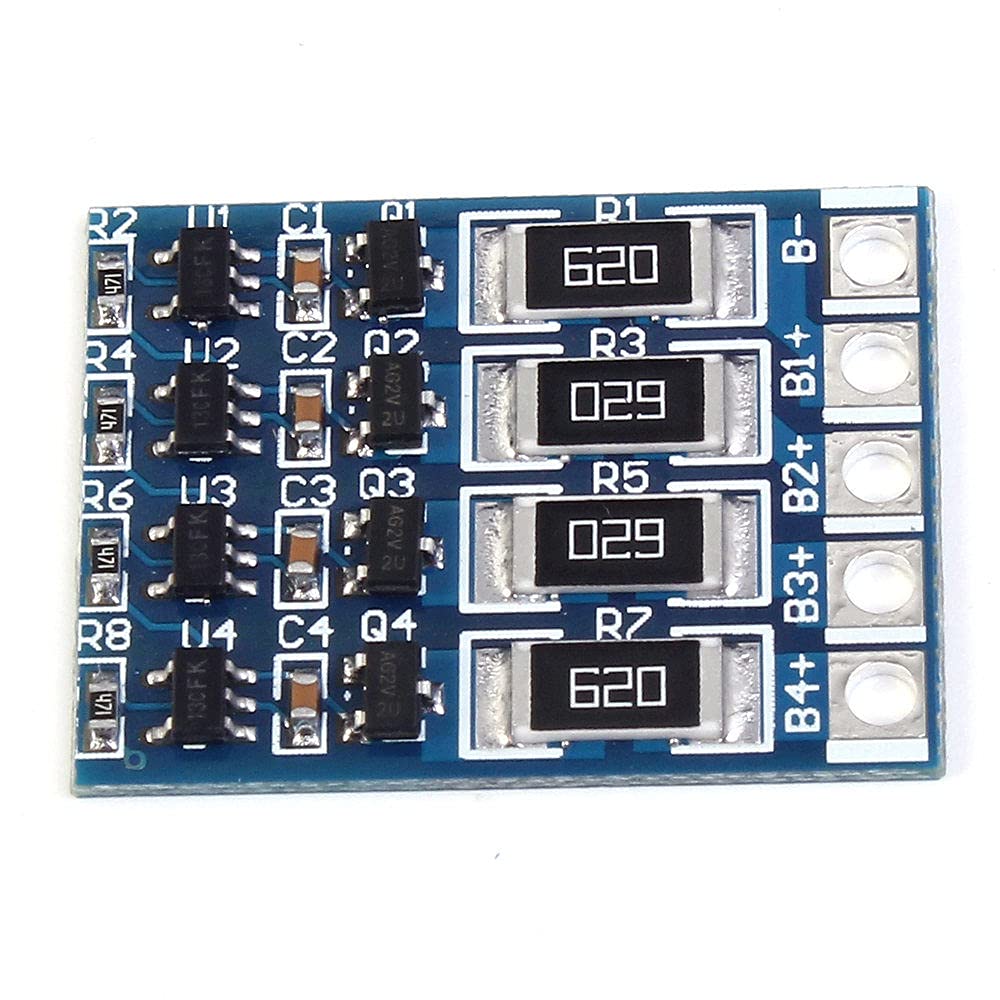

BulletPoint : 18650 Lithium Iron Phosphate Battery Charger Protection Board Balanced Function Polymer Li-ion Charging Module 4S 3.6V DIY 58mA
BulletPoint1 : Wide operating voltage range (90-305VAC)
BulletPoint2 : Reverse battery connection protected
BulletPoint3 : LED status indicator
BulletPoint4 : Low power consumption at no-load mode
BulletPoint5 : Output short circuit and overload protection
ExternallyAssignedProductIdentifier : 4852343733185
InputVoltage : 277 volts_of_alternating_current
ItemName : 18650 Lithium Iron Phosphate Battery Charger Protection Board Balanced Function Polymer Li-ion Charging Module 4S 3.6V DIY 58mA
ItemTypeKeyword : general-use-battery-chargers
Manufacturer : Lufasa
Material : iron
NumberOfItems : 1
OutputVoltage : 24 volts_of_direct_current
PartNumber : ZGL-module-12176
ProductDescription :



































Product Introduction:

1.
Features:
3.6V balanced function
2.Operating Current:58mA


Soldering Point Introduction:

1.B4+:connect with battery pack positive
2.B3+:connect with junction between battery 1 and battery 2
3.B2+:connect with junction between battery 2 and battery 3
4.B1-:connect with junction between battery 3 and battery 4
5.B-:connect with battery pack negative


Notice:

1.This balanced board is adaptive to lithium battery pack which has no balance charging function,it can add charging and balanced function to ensure battery pack full of electricity
2.This balanced board has no function of charging or discharging,and it cannot replace the protection board.When the battery is in the end of full charged,it will discharge by resistor to first fully charged battery,namely shunt and balance function
ProductSiteLaunchDate : 2021-04-20T16:22:46.022Z
SupplierDeclaredDgHzRegulation : unknown
UnspscCode : 26111704
