Specification
Amperage : 2 amps
BatteriesIncluded : 1
BatteriesRequired : 1
Brand : XFYBZN
BulletPoint1 : Working Voltage: 1.8V-4.2V, suitable for NCM Ternary polymer lithium battery (Li-ion), lithium iron phosphate battery (LiFePO4),lithium titanate battery (LTO). If it is used for 7S, the last line B8+ is empty; If used for 6S battery, the B7+ B8+ is empty. (Note: The default protective case is a kit, not assembled, the transparent acrylic case has a yellow protective film that can be peeled off. )
BulletPoint2 : Working Principle: Flying capacitor transfer charge transporter, Balancer board is connected to the battery to start the balance work, using the original brand new ultra-low internal resistance MOS, 2OZ copper thickness PCB, balance current 0-5.5A, the more balanced the battery current is Small, reserved for the dormant switch wiring position, the dormant power-off mode working current is less than 0.1mA, and the balance voltage accuracy is within 5mv!
BulletPoint3 : The quiescent current is about 12mA, and the battery capacity is recommended to be used between 30-300AH! With under-voltage sleep protection, only detecting the battery voltage of B1, the equalizer will automatically stop entering the sleep state when the B1 voltage is lower than 2.7V, and the standby power consumption is less than 0.1mA.
BulletPoint4 : One LED indicator: The yellow led will always be on during normal operation, but it will not turn on when there is a problem or malfunction. RUN pad: you can add a switch to control the balancer. Default short connect, let balancer working. if disconnect, it will not working. Equipped with VH3.96 terminal by default, come with 1.31ft 18awg wire.
BulletPoint5 : Tips: Before connect the balance cable to the balance board, be sure to check whether the connections of each section of the battery pack are correct, and do a good job of insulating the bottom of the board and the battery string connection terminals. Otherwise, it will short-circuit and burn the board.
Color : Black
CompatibleDevices : Solar
CompatiblePhoneModels : Logitech UE MegaBoom
ConnectorGender : Female-to-Male
CurrentRating : 2 amps
CustomerPackageType : Standard Packaging
ExternallyAssignedProductIdentifier : 7410063027570
ExternallyAssignedProductIdentifier1 : 739240607648
ExternallyAssignedProductIdentifier2 : 0739240607648
ExternallyAssignedProductIdentifier3 : 0746593503237
ExternallyAssignedProductIdentifier4 : 0730807607422
GpsrSafetyAttestation : 1
Hazmat1 : LITHIUM ION BATTERIES
Hazmat10 : DE_SmallLithiumIonBatteryStandalone
Hazmat11 : ES_SmallLithiumIonBatteryStandalone
Hazmat12 : FR_SmallLithiumIonBatteryStandalone
Hazmat13 : GB_SmallLithiumIonBatteryStandalone
Hazmat14 : IN_SmallLithiumIonBatteryStandalone
Hazmat15 : IT_SmallLithiumIonBatteryStandalone
Hazmat16 : JP_SmallLithiumIonBatteryStandalone
Hazmat17 : MX_SmallLithiumIonBatteryStandalone
Hazmat18 : SG_SmallLithiumIonBatteryStandalone
Hazmat19 : TR_SmallLithiumIonBatteryStandalone
Hazmat2 : UN3480
Hazmat20 : US_SmallLithiumIonBatteryStandalone
Hazmat21 : SA_NoAir
Hazmat22 : SE_NoAir
Hazmat23 : SG_NoAir
Hazmat24 : TR_NoAir
Hazmat25 : US_NoAir
Hazmat26 : ZA_NoAir
Hazmat3 : II
Hazmat4 : 9
Hazmat5 : AE_SmallLithiumIonBatteryStandalone
Hazmat6 : AU_SmallLithiumIonBatteryStandalone
Hazmat7 : BR_SmallLithiumIonBatteryStandalone
Hazmat8 : CA_SmallLithiumIonBatteryStandalone
Hazmat9 : CN_SmallLithiumIonBatteryStandalone
IncludedComponents : Battery
InputCurrent : 2 amps
InputVoltage : 4.2 volts
IsUlListed : 1

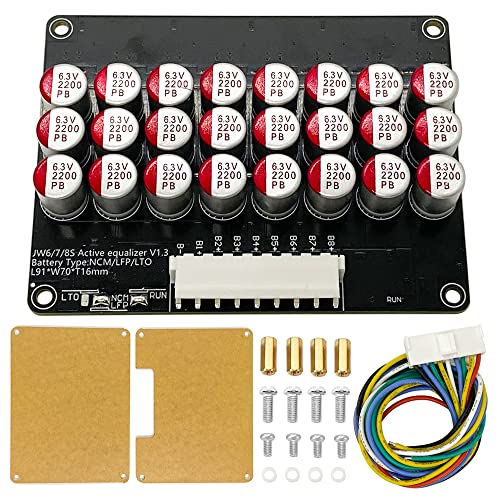

ItemName : 5A 6S 7S 8S Battery Active Equalizer Whole Group Balancer Lifepo4 Lipo Li-ion LTO Lithium Battery Energy Transfer Equalization Capacitor Balancer w/Acrylic Protective Case
ItemPackageDimensions_Height : 11.303 centimeters
ItemPackageDimensions_Length : 3.6068 centimeters
ItemPackageDimensions_Width : 7.8994 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : general-use-battery-chargers
Manufacturer : XFYBZN
ModelName : WA180-54602S
ModelNumber : 937750ea-b44f-43b5-bd50-3fd76e386df9
NumberOfItems : 1
NumberOfLithiumIonCells : 1
OutputVoltage : 4.2 volts
PartNumber : WA180-54602S-DC
PowerCordProngCount : 3
ProductDescription : Working voltage: 1.8V-4.2V, suitable for NCM Ternary polymer lithium battery (Li-ion), lithium iron phosphate battery (LiFePO4).

Working principle: Flycap-capacitor transfer charge transporter, Balancer board is connected to the battery to start the balance work, using the original brand new ultra-low internal resistance MOS, 2OZ copper thickness PCB, balance current 0-5.5A, the more balanced the battery current is Small, reserved for the dormant switch wiring position, the dormant power-off mode working current is less than 0.1mA, and the balance voltage accuracy is within 5mv!

The quiescent current is about 12mA, and the battery capacity is recommended to be used between 30-300AH/Per Balancer.

With under-voltage sleep protection, only detecting the battery voltage of B1, the equalizer will automatically stop entering the sleep state when the B1 voltage is lower than 2.7V, and the standby power consumption is <0.1mA.

Board size: 3.58x2.75x0.63inch
Balance cable length: 1.31ft

One LED indicator: It will always be on during normal operation, but it will not turn on when there is a problem or malfunction.

RUN pad: you can add a switch to control the balancer. Default short connect, let balancer working. if disconnect, it will not working.

Note:
1. Please start wiring from the total negative pole, followed by B-, B1+... , B8+.(Test per string battery voltage whether is right before connect to Balancer board).
2. The time required for equalization mainly depends on the battery capacity. It is normal for the capacitor to heat up during energy conversion.

Package Includes:
1x 8S Balancer Board
1x 9Pin Cable
2 x Acrylic Board
4 x Short Screw
4 x Long Screw
4 x Stud
4 x Washer

ProductSiteLaunchDate : 2022-11-14T08:55:23.479Z
Reusability : Rechargeable
Size : C
SpecificationMet : RoHS, FCC
SpecificationMet1 : CE
SpecificationMet2 : FCC
Style : 250A 8-24S CAN
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredDgHzRegulation1 : storage
SupplierDeclaredDgHzRegulation2 : transportation
SupplierDeclaredHasProductIdentifierExemption : 1
UnitCount : 1
UnspscCode : 26111700
Voltage : 7.4 volts
WarrantyDescription : Manufacturer warranty for 120 days from date of purchase.
WaterResistanceLevel : not_water_resistant
