Specification
Brand : Zunate
BulletPoint1 : Auxiliary Board: The equalization board is only an auxiliary of the board, without overvoltage and overdischarge functions.Any bad battery test can be used. Voltage can only be achieved when used in parallel with the board
BulletPoint2 : Applicable Battery: NCM(Li ion) LFP, general ternary iron lithium battery, LTO battery is not supported. Single voltage working range 3.0V to 4.5V; recommended battery capacity below 30AH
BulletPoint3 : Equalization Method: Is detected that the voltage difference between adjacent batteries is greater than 0.1V to the equalization start, and the voltage difference is less than 0.03V to stop working. (It takes multiple charging and discharging to achieve a better balanced effect.)
BulletPoint4 : Voltage and Current: 30mV (typical value) voltage balance accuracy between adjacent voltages, 0.1V voltage difference 0.5A balance current, when the voltage difference is 0.2V, the maximum balance current is 1.2A. 0.01mA quiescent current, enter sleep state when the adjacent voltage difference is less than 0.03V
BulletPoint5 : Pay Attention: Compatibility with low strings is not recommended, the indicator light will flash and report an error. Check that each battery is properly wired and insulated before connecting. Otherwise it will short circuit and burn the board
Color : default
CurrentRating : 2 amps
ExternallyAssignedProductIdentifier1 : 0665415527056
ExternallyAssignedProductIdentifier2 : 665415527056
InputVoltage : 240 volts

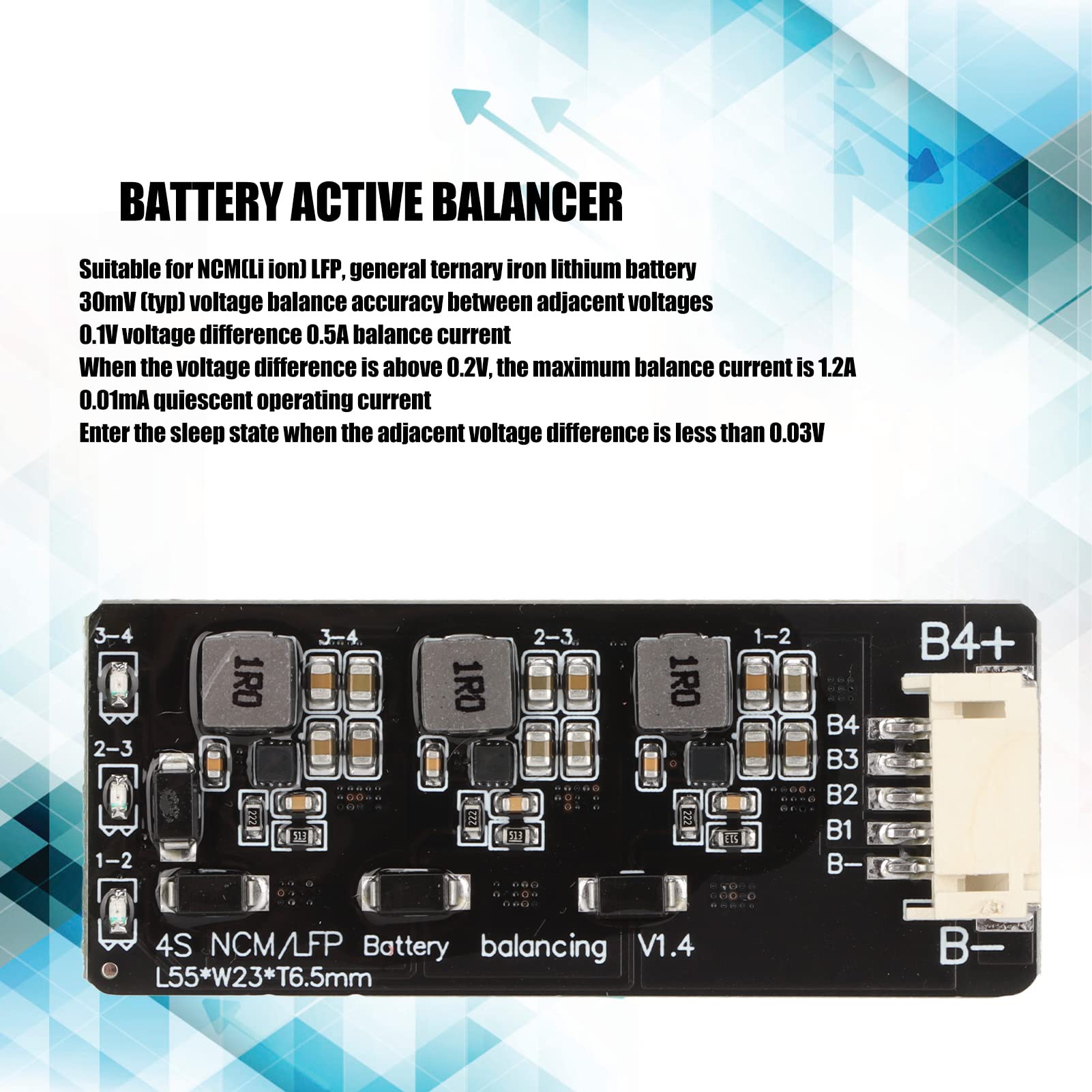

ItemName : Zunate 4S 3.0V to 4.5V Battery Active Balancer, Active Equalizer for Balanced Energy, Compatible for NCM(li Ion) LFP, General Ternary Iron Lithium Battery
ItemPackageDimensions_Height : 11.2 centimeters
ItemPackageDimensions_Length : 1.2 centimeters
ItemPackageDimensions_Width : 7.2 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : general-use-battery-chargers
Manufacturer : Zunate
ModelNumber : PDVMC
NumberOfItems : 1
PartNumber : Zunaten7pzg8eb1s7409
ProductDescription : Feature:
1. Auxiliary Board: The equalization board is only an auxiliary of the board, without overvoltage and overdischarge functions.Any bad battery test can be used. Voltage can only be achieved when used in parallel with the board
2. Applicable Battery: NCM(Li ion) LFP, general ternary iron lithium battery, LTO battery is not supported. Single voltage working range 3.0V to 4.5V; recommended battery capacity below 30AH
3. Equalization Method: Is detected that the voltage difference between adjacent batteries is greater than 0.1V to the equalization start, and the voltage difference is less than 0.03V to stop working. (It takes multiple charging and discharging to achieve a better balanced effect.)
4. Voltage and Current: 30mV (typical value) voltage balance accuracy between adjacent voltages, 0.1V voltage difference 0.5A balance current, when the voltage difference is 0.2V, the maximum balance current is 1.2A. 0.01mA quiescent current, enter sleep state when the adjacent voltage difference is less than 0.03V

How to Use:
Plug and Play

Specification:
Item Type: Battery Active Balancer
Material: PCB
Operating Voltage: 3.0V to 4.5V
Applicable Battery: NCM(li Ion) LFP, General Ternary Iron Lithium Battery

Package List:

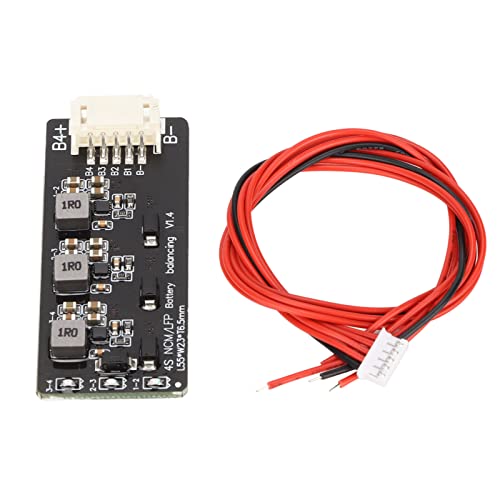

1 x Battery Active Balancer
1 x Cable

Note:
General Lithium iron ternary battery, not suitable for LTO battery
ProductSiteLaunchDate : 2022-07-06T00:00:00.000Z
Style : FXLION V Mount Charger and V Mount Battery NANO TWO
SupplierDeclaredDgHzRegulation : not_applicable
UnspscCode : 26111700
WarrantyDescription : 1 Year Limited Warranty
