Specification
Brand : eletechsup
BulletPoint1 : 3.5-30V 330MA/500/660/910MA Step-down HB LED Driver Module
BulletPoint2 : Working voltage : DC 3.5-30V(Perfect for 3.7V 5V 6V 9V 12V 18V 24V LED Driver)
BulletPoint3 : Output Current: 0-330MA/500/660/910MA;By changing the RCS resistance, the maximum drive current can be changed
BulletPoint4 : Compatible ✔️ Bk200 Bluetooth car battery tester is compatible with all 6V-12V-24V Li-lead-acidbatteries include regular flooded, AGM flat plate, AGM spiral, GEL batteries, EFB batteries, lithium Batteries with the test range (100-2000 CCA).
BulletPoint5 : Accessibility ✔️ Supports 13 languages: English, Spanish, Portuguese, French, German, Korean, Dutch, Italian, Russian, Chinese, Persian, Polish, Japanese.
BulletPoint6 : No worries ✔️

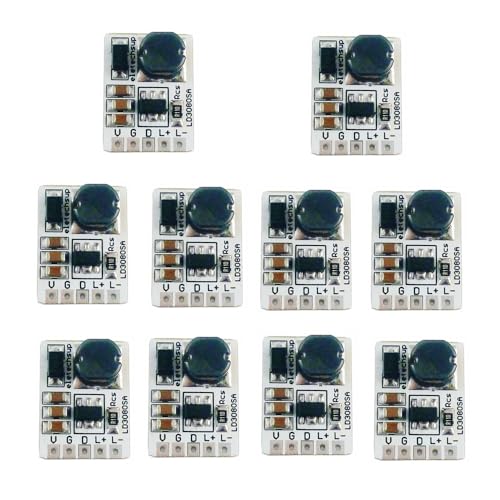

Color : 10PCS 500MA
ExternallyAssignedProductIdentifier : 7640911650210
ExternallyAssignedProductIdentifier1 : 0759187325016
ExternallyAssignedProductIdentifier2 : 759187325016
IncludedComponents : LD3080SA
ItemName : 20W DC 3.5-30V 330MA/500MA/660MA/910MA HB LED Driver Module DC-DC Buck Constant Current Converter (10PCS 500MA)
ItemPackageDimensions_Height : 1 inches
ItemPackageDimensions_Length : 1 inches
ItemPackageDimensions_Width : 1 inches
ItemPackageQuantity : 1
ItemTypeKeyword : auto-battery-testers
Manufacturer : eletechsup
Material : Metal
Material1 : ABS
Material2 : Metal
MeasurementAccuracy : ±0.5%
MeasuringRange : 12 - 125 V, -40 - 125 °C
MinimumOperatingVoltage : 6 volts
ModelName : ZIZEV5gx39r7vic
ModelNumber : LD3080SA
MountingType : Surface Mount
NumberOfItems : 1
OutputType : electrical signal
PartNumber : LD3080SA*2
PowerSourceType : Battery Powered
ProductDescription :

Product Name:

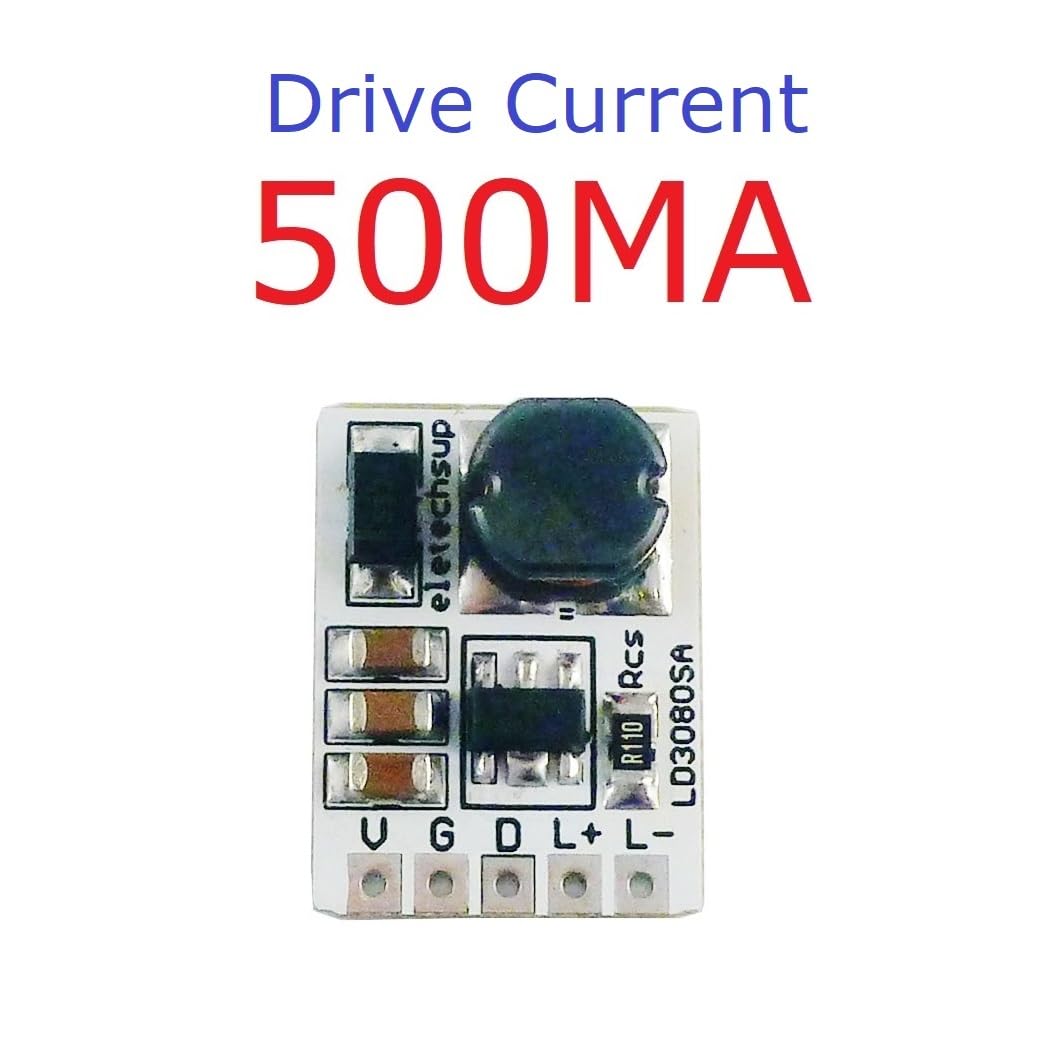

20W DC 3.5-30V 330MA/500MA/660MA/910MA HB LED Driver Module DC-DC Buck Constant Current Converter for Flashlight Headlights

Packing list:

DC 3.5-30V 330MA/500/660/910MA Step-down HB LED Driver Module

(Specific according to the version and quantity you choose)

Description :

3.5-30V 330MA/500/660/910MA Step-down HB LED Driver Module

Working voltage : DC 3.5-30V(Perfect for 3.7V 5V 6V 9V 12V 18V 24V LED Driver)

Output Current: 0-330MA/500/660/910MA;By changing the RCS resistance, the maximum drive current can be changed

Maximum output power: 20W

Current regulation: Through PWM control

Single pin ON/OFF and brightness control using PWM

Simple low parts count

Wide input voltage range: 3.5V to 30V

Up to 330MA/500/660/910MA output current

PWM dimming

3% output current accuracy.

Up to 1MHz switching frequency

Typical 3% output current accuracy

Inherent open-circuit LED protection

High efficiency (up to 94%)

Adjustable Constant LED Current

High-Side Current Sense

Hysteretic Control: No Compensation

Soft Over Temperature Protection

Size : 20*15*6mm

Weight : 2.2g

Typical Application :

Low voltage halogen replacement LEDs

Automotive lighting

LED back-up lighting

Illuminated signs

Car LED lights

Stage lights

Wiring Diagram 1 : 330MA/500/660/910MA LED Constant Current Drive Circuit

Wiring Diagram 2 : 330MA/500/660/910MA LED Constant Current Drive Circuit(with switch)

Wiring Diagram 3 : 0-330MA/500/660/910MA LED PWM Dimming Circuit





ProductSiteLaunchDate : 2024-08-19T08:46:43.808Z
Size : 2.28"
SpecificUsesForProduct : automotive
Style : Buck
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredHasProductIdentifierExemption : 1
UnitCount : 1
UnspscCode : 60141000
