Specification
BatteriesIncluded : 1
BatteriesRequired : 1
Brand : LiebeWH
BulletPoint1 : Discharge function, it is suitable for lithium/‑ battery capacity test (charging 5A, discharging 20A, maximum power is 85W), and supports individual charging, discharging and one‑time charging and discharging tests.
BulletPoint2 : Support to connect to a computer, it can use a dedicated USB to TTL serial port line, through the online software can be multiple cycles of charging and discharging and more extended functions.
BulletPoint3 : Liquid crystal display screen, which can display test data such as voltage, current, capacity, time, power, and energy.
BulletPoint4 : Four‑wire design, its voltage measurement channel and current measurement channel are wired separately to ensure measurement accuracy.
BulletPoint5 : High accuracy, its test range is wide, and it can be applied to accurate industrial measurement with low error.
Color : Multi
CurrentRating : 1.5 amps
CustomerPackageType : Standard Packaging
ExternallyAssignedProductIdentifier : 8059071030630
ExternallyAssignedProductIdentifier1 : 0790943411239
ExternallyAssignedProductIdentifier2 : 790943411239
ExternallyAssignedProductIdentifier3 : 00046074132629
FitType : Universal
IncludedComponents : test clip
InputVoltage : 110 volts

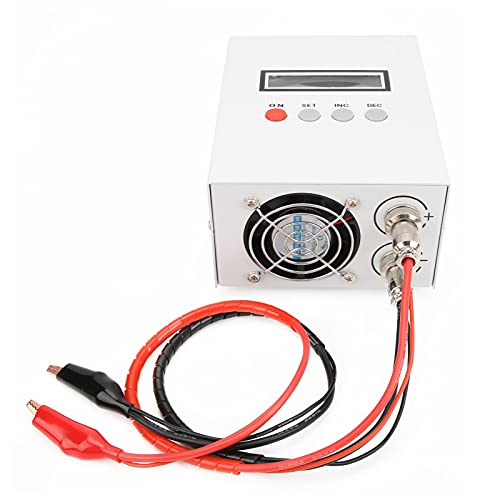

ItemName : EBC‑A20 Battery Capacity Tester Lithium Iron Battery Load Tester 5A 20A Discharge Electronic Load Meter (US Plug)
ItemPackageDimensions_Height : 20.1 centimeters
ItemPackageDimensions_Length : 10.5 centimeters
ItemPackageDimensions_Width : 18.5 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : auto-battery-testers
Manufacturer : LiebeWH
Material : Cold Rolled Steel
MeasurementAccuracy : 0.001
MeasurementType : Voltmeter, Ammeter, Capacity Meter
ModelName : Cryfokt62bia5fs7v
ModelNumber : Cryfokt62bia5fs7v
MountingType : Direct Mount
NumberOfItems : 1
OutputType : electrical signal
OutputVoltage : 13.8 volts_of_direct_current
PackageLevel : unit
PartNumber : LiebeWH0t84s9ndc62566-13
PowerSourceType : Battery Powered
ProductDescription : Specification:
Item Type: Battery Capacity Tester
Material: Cold Rolled Steel
Plug Attributes: 100-240V AC
Power Supply Mode: DC 19V-20V, Current 3.5A
Discharge Voltage: 0.00-30.00V, The Minimum Step is 0.01V
Charging Voltage: 0.10-18.00v, The Minimum Step is 0.01V
Discharge Current: 0.10-20.00A, The Minimum Step is 0.01A (The current is automatically limited when the power exceeds the limit)
Charging Current: 0.10-5.00A, The Minimum Step is 0.01A (The maximum current 10V is less than the power supply current)
DSC-CC Mode (Constant Current Discharge): constant discharge current, used to test battery capacity.
DSC-CP Mode (Constant Power): The discharge power is constant, used to simulate constant power equipment.
CHG-CV Mode (Constant Voltage Charging): Constant current and constant voltage charging, supporting lithium battery and -.
Automatic and Discharge: Support Automatic "-Discharge-" Mode
Voltage Measurement: 0.000-4.500V (Low Voltage Range), Accurate to 0.003V, Error ±0.5%; 4.50V-30.00V (High Voltage Range), Accurate to 0.01V, Error ±0.5%.
Current Measurement: 0.10-20.00A, Accurate to 0.01A, Error ±0.5%
Capacity Measurement: Within 10Ah, The Resolution is 0.001Ah; 10Ah-100Ah, The Resolution is 0.01Ah; 100Ah, The Resolution is 0.1Ah.
Wiring Mode: Four-Wire Detection
Liquid Crystal Display: It can display test data such as voltage, current, capacity, time, power, and energy.
Computer Connection Interface: Dedicated USB to TTL Serial Cable (MiniUSB Port, Not Ordinary USB Cable)
Maximum Discharge Power: 85W, 20A within 4.2V, 10A within 8.4V, Less than 10A at Higher Voltage.

Package List:
1 x Battery Tester
2 x Test Line
1 x USB to TTL Cable
1 x Adapter
1 x Power Cord
1 x Manual

Note:
This model product does not support Ni‑MH and Ni‑Cd charging.
ProductSiteLaunchDate : 2021-08-24T00:00:00.000Z
Size : US Plug
SpecificationMet : CSA US
SpecificUsesForProduct : automotive
StreetDate : 2014-07-25T00:00:01Z
Style : Compact
SupplierDeclaredDgHzRegulation : not_applicable
UnitCount : 1
UnspscCode : 41113642
UpperTemperatureRating : 392 degrees_fahrenheit
WarrantyDescription : 5 Year Warranty of Manufacturer
