Specification
Brand : IS
BulletPoint1 :
BulletPoint2 :
BulletPoint3 :
BulletPoint4 :
BulletPoint5 :
BulletPoint6 : EXTENDED SPRING WIRE & ANTI-LOST PROBE COVER: Compared with the ordinary wire, the automotive light tester comes with high quality spring wire that can stretch up to 141.74 inches, making the maintenance and diagnosis work more portable, convenient and fast. It allows you to test from the front of the car to the rear without constantly searching for a suitable ground. In addition, the integrated design of the anti-loss cover ensures no puncture wounds, no matter where you go will not be lost.
Color : Green
Color1 : Red
Color2 : Gray
ExternallyAssignedProductIdentifier1 : 675000021012
ExternallyAssignedProductIdentifier10 : 0675000021012
ExternallyAssignedProductIdentifier11 : 00012303346648
ExternallyAssignedProductIdentifier2 : 045555678090
ExternallyAssignedProductIdentifier3 : 012303346648
ExternallyAssignedProductIdentifier4 : 031111832419
ExternallyAssignedProductIdentifier5 : 031112210254
ExternallyAssignedProductIdentifier6 : 0012303346648
ExternallyAssignedProductIdentifier7 : 0031112210254
ExternallyAssignedProductIdentifier8 : 0045555678090
ExternallyAssignedProductIdentifier9 : 0031111832419
IncludedComponents : auto battery testers
ItemName : Icstation Battery Capacity Tester Monitor, 12V 24V 36V 48V Digital Battery Voltage Capacity Mointor,Lithium/Lead-Acid/Iron-Lithium Battery Status Indicator LCD Display Indicator Pannel
ItemPackageDimensions_Height : 5.842 centimeters
ItemPackageDimensions_Length : 1.016 centimeters
ItemPackageDimensions_Width : 2.794 centimeters
ItemPackageQuantity : 1
ItemShape : Rectangle
ItemTypeKeyword : auto-battery-testers
Manufacturer : icstation
Material : Metal
MeasurementAccuracy : NO
MeasurementType : Voltmeter
MeasuringRange : 0A to 100A
MinimumOperatingVoltage : 8 volts
ModelName : MPPBT100
ModelNumber : 12V 24V 36V 48V Lead Acid Battery Tester
MountingType : Flange Mount
NumberOfItems : 1
OutputType : Digital
PartNumber : 9740
PowerSourceType : Battery Powered

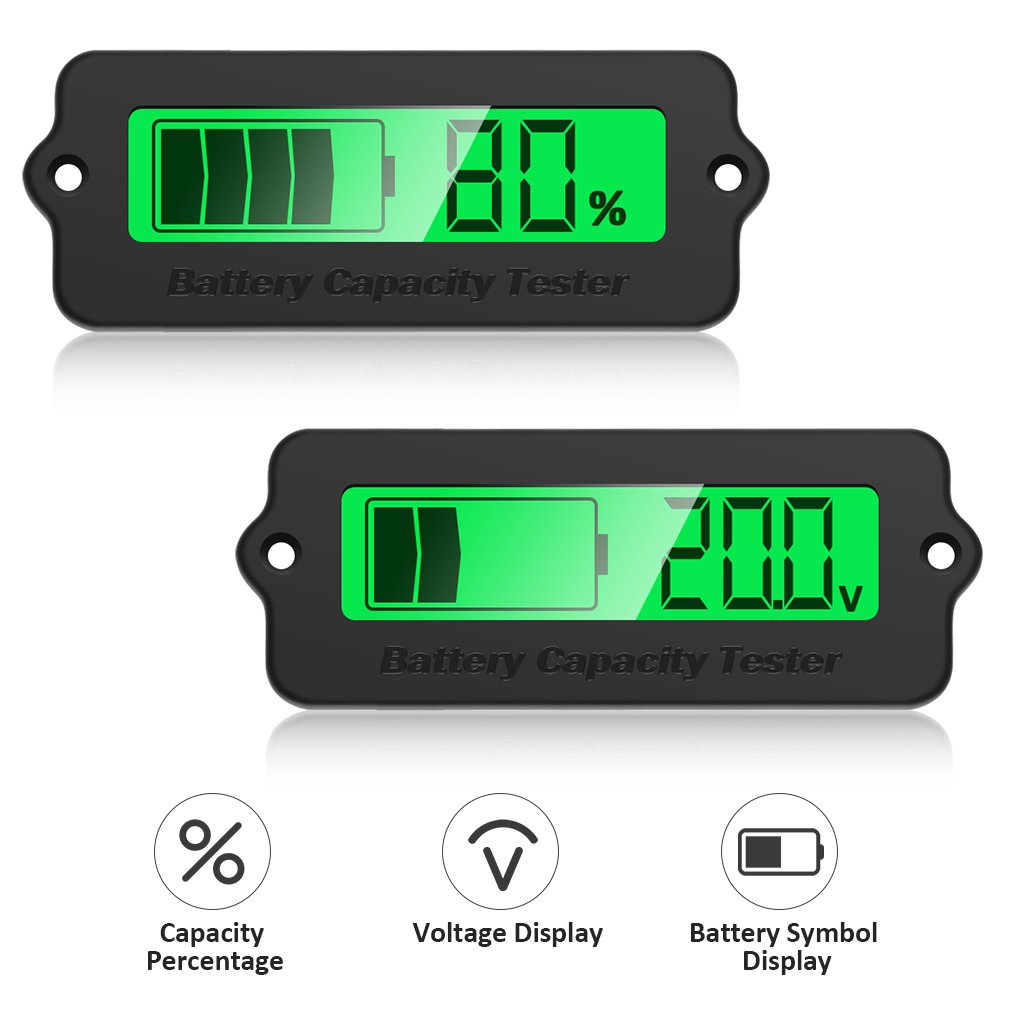

ProductDescription : Icstation battery status tester module, is designed to test the voltage, current and capacity of battery and display them with intuitive battery symbol and percentage. User can know the state of battery in time, it is suitable for 12V/24V/36V/48V lead acid battery and 3-15 cells lithium ion battery, meet your various application, design for instrument, measuring equipment, cleaning machine, balance car, battery car, vehicle, skateboard, e-bike and so forth.

Parameters:
1. Working voltage: Min 8V, Max 63V;
2. Working dissipation: 8 mA, Max 10 mA;
3. Sleep dissipation: 15 uA;
4. Voltage accuracy: ±3.0%;
5. Capacity accuracy: ±3.0%;
6. Backlight on current: 40 mA, Max 50 mA ;
7. Backlight off current: 30 mA, Max 40 mA ;
8. Temperature range: 0℃ - 35℃ ;
9. Size: 60x23x15 mm/2.34x1.0x0.6 inch, Weight: 15g.

Connection: The tester provides a connector consists of plug, black line and red line. Connect the black line to the negative, the red line to the positive, the plug to the socket of tester. Then, power on or turn on the switch, it will be work.

Install: First, open one rectangular orifice and two screw holes on the panel of the equipment. Then install the tester from the back of the panel, and put the prominent LCD in the rectangular orifice. Finally, fix the tester with tapping screws from the front of the panel.

Adjustment: Press and hold the down key on the back when turn off, then power on. LCD displays the present specifications. Use the down key and up key to adjust specification, select suitable specification you need, then turn off and power on. The tester will be work normally (correspond code a below form).

Attention: The tester cannot be exposed in the sun for a long time. When using or storing, please keep the temperature higher than -20℃ and lower than 60℃, otherwise it will shorten the life of LCD.
ProductSiteLaunchDate : 2016-10-14T09:57:03.781Z
Size : 12V 24V 36V 48V; 3cells ~ 15cells.
SpecificationMet : Oem
SpecificUsesForProduct : driving, everyday commuting
StreetDate : 2016-11-08T00:00:01Z
Style : DC 8V-63V
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredDgHzRegulation1 : not_applicable
SupplierDeclaredDgHzRegulation2 : not_applicable
UnitCount : 1
UnspscCode : 26111700
UpperTemperatureRating : 120 degrees_fahrenheit
