Specification
Brand : Jayron
BulletPoint :
BulletPoint1 : WORKING VOLTAGE:Total 3 kinds customise working voltage DC 12V/24V,36V,48V.

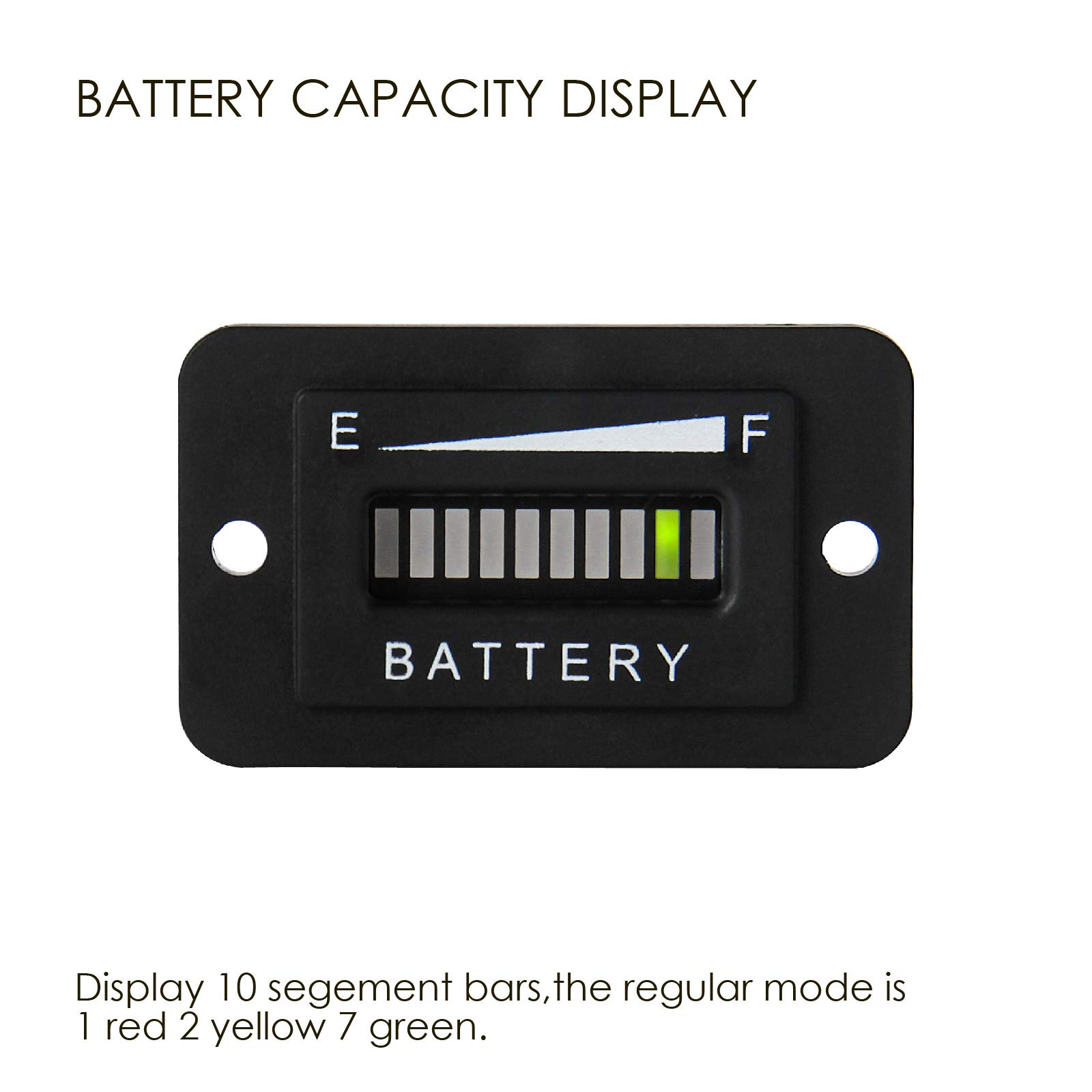

BulletPoint2 : BATTERY CAPACITY DISPLAY:Display 10 segement bars,the regular mode is 1 red 2 yellow 7 green.
BulletPoint3 : LARGE LED DISPLAY:The LED display size is 27*10mm.
BulletPoint4 : EASY INSTALLATION:Use screws to embed.
BulletPoint5 : WARRANTY:2 years warranty.
Color : Yellow,Green,Red
ExternallyAssignedProductIdentifier : 7401520005088
ExternallyAssignedProductIdentifier1 : 0760033256194
ExternallyAssignedProductIdentifier2 : 760033256194

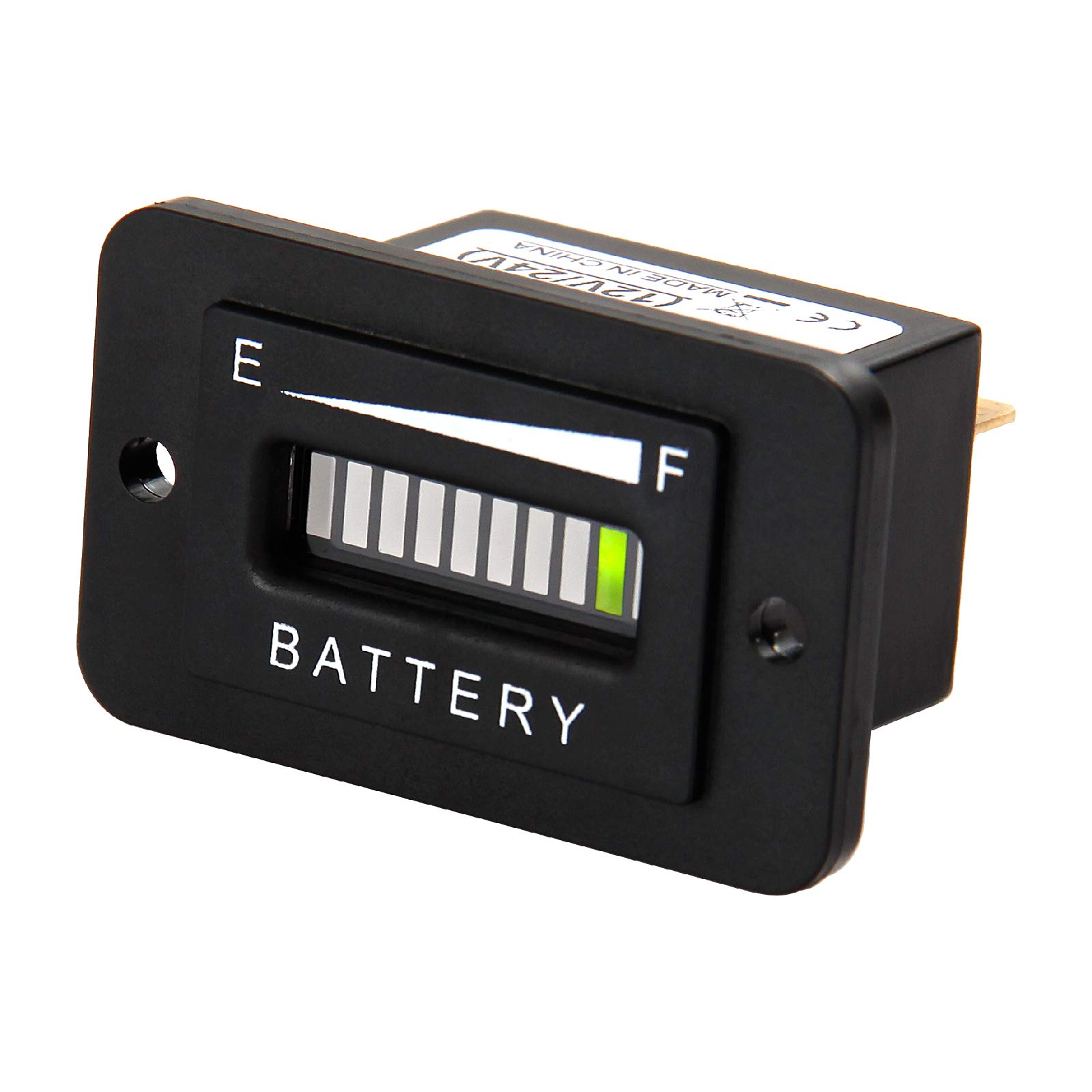

ItemName : Jayron Large LED Display Lead Acid Battery Indicator Suit for DC Powered Equipment Such as Fork Lifts,Golf Cart,Floor Care Equipment (12/24V)
ItemPackageDimensions_Height : 6.1976 centimeters
ItemPackageDimensions_Length : 4.3942 centimeters
ItemPackageDimensions_Width : 5.0038 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : auto-battery-testers
Manufacturer : Jayron
MeasurementType : Voltmeter, Ohmmeter, Multimeter
MinimumOperatingVoltage : 12 volts_of_direct_current
ModelNumber : JR-BI003-C1
PackageLevel : unit
PartNumber : JR-BI003-C1
PowerSourceType : Battery Powered
ProductDescription : Product :JR-BI003
Applicable battery type: lead-acid battery
Attachment : Product*1；Insert spring*3；Plug spring sheath*3；User manual*1；Screw*2

Product Features supplement:
▶The battery fuel gauge has 2 kinds of connection methods,direct connection or key switch connection.
▶The LEDs will scan from “Empty” to “Full” then stay on the position of actual voltage level when connected to power.
▶When the battery is being charged, the LED will scan from “Empty” to “Full” quickly and repeatedly, indicating that charging is in progress. After the battery is fully charged, only the 10th LED will light up.
▶The battery fuel gauge has three pins: + / - / C,When using the key-switch to control the display of the fuel gauge, you need to connect the C pin.

Specifications :
▶System voltage:12/24V/36V/48V(Depending on model)
▶Operatiing Voltage:+/- 25% of nominal voltage
▶Operating Current:≤100mA nominal
▶Operating Temperature:-10℃ to +50℃
▶Products Size:53*32*24mm

Applications
The battery fuel gauge can be used to monitor DC equipment, such as golf carts, forklifts, floor care equipment, stabilized power supplies, and any other battery-powered equipment.
ProductSiteLaunchDate : 2021-01-20T07:34:39.685Z
Size : 12/24V
SpecificationMet : Iec,sae
Style : Flat
SupplierDeclaredDgHzRegulation : not_applicable
UnspscCode : 41113600
