Specification
Brand : WAAZVXS
BulletPoint1 : Structure: disc
BulletPoint2 : Material: Aluminium
BulletPoint3 : Installation: set screw
BulletPoint4 : Material of Disc: SUS304 stainless steel
BulletPoint5 : Zero Backlash
Color : Onecolor
ExternallyAssignedProductIdentifier : 9406105962204

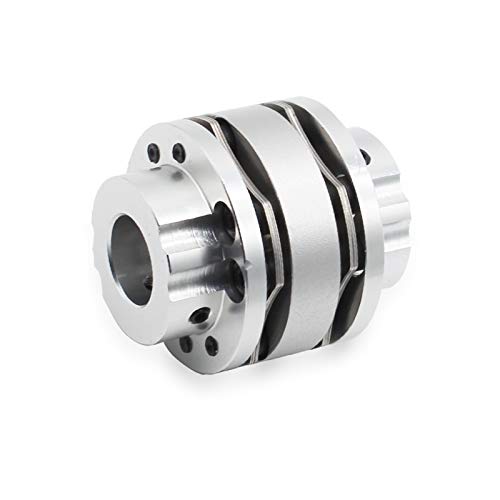

ItemName : WAAZVXS Coupler Disc Couplings D50L60 D56L64 High Stiffness 10-20mm 12-24mm Shaft for Motor Encoder Set Screw (Inner Diameter : LEG2 D D56L64)
ItemPackageQuantity : 1
ItemTypeKeyword : beam-couplings
Manufacturer : WEIWEIBEIER
Material : Metal
NumberOfItems : 1
PartNumber : WWBR

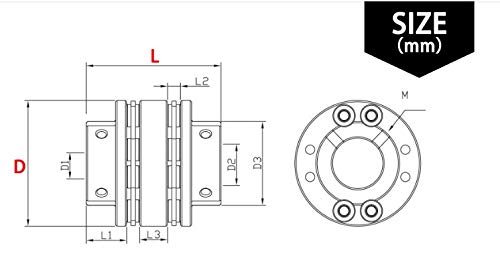

ProductDescription : Model D (mm) L (mm) D1-D2 (mm) M (mm) L1 (mm) L2 (mm) L3 (mm) D3 (mm) Screw Fasten lorque (n.m)
LEG2-D.D26L35 26 35 3-8 M3.0 11.5 3 6 15 1.2
LEG2-D-D32L41 32 41 4-10 M4.0 13.5 3.5 7.5 19 2.5
LEG2-D-D34L45 34 45 5-12 M4.0 14.8 3.5 8.5 22 2.5
LEG2-D.D39L50 39 50 6-15 M5.0 15.8 3.5 11.5 25 5
LEG2-D.D45L50 45 50 8-18 M5.0 15.2 4.6 10.5 30 5
LEG2-D-D50L60 50 60 10-20 M6.0 19.7 4.6 11.5 32 8
LEG2-D.D56L64 56 64 12-24 M6.0 120 5 14 38 8
LEG2-D-D65L74 65 74 14-30 M8.0 24.5 5 15 47 20
LEG2-D-D87L98 87 98 16-35 M8.0 30.5 6.5 23.5 56 20
Technical parameter
Model Max bore (mm) Rated Torque (n.m) Permtssibte parallel misalignment (mm) Permissible angular
misalignment
（degree） Max speed (rpm) Material of sleeve Material of disc Weight
(g)
LEG2-D.D26L35 12 2.2 0.1 1 10000 High-strength aluminum alby SUS304 35
LEG2-D-D32L41 14 3 0.1 1 10000 45
LEG2-D.D34L45 16 4.4 0.1 1 10000 60
LEG2.D-D39L50 19 8.7 0.1 1 10000 100
LEG2-D.D45L50 24 13.3 0.1 1 10000 140
LEG2-D-D50L60 25 27 0.2 1 10000 220
LEG2-D.D56L64 30 37 0.2 1 8000 280
LEG2-D-D65L74 35 85 0.2 1 6000 360
LEG2-D-D87L98 42 180 0.2 1 5000 800
ProductSiteLaunchDate : 2022-06-28T06:27:39.873Z
Size : LEG2 D D56L64
Style : Simple
UnitCount : 1
UnspscCode : 52140000
