Specification
Brand : WYDDDARY
BulletPoint1 : Precise Fineness Adjustment: The three-roll machine is made of zirconia, surface hardness is HRA≥89—91. It is characterized by high hardness and abrasion resistance and low pollution. After grinding for once or several times, finally achieve the required fineness (about 5—15 microns in general, to fineness determination)
BulletPoint2 : Components: The Three Roller Mill is made up of the machine base, cover, roller bearing, end plates, discharge collecting blade, cooling system, gears and wheels. There are a total of six bearing bases for high speed roller, medium speed roller and low speed roller supported by base orbit. Among them, the medium speed roller is fixed to the base and cover.The fast and feed rollers can be moved horizontally via turning wheel spring to reach the desired grinding fineness
BulletPoint3 : Cooling System: Cooling water goes in through the tunnel and flows into the blind hole inside the roller. The blind hole is designed with a slight slope so that water eventually flows back out into the water tank. And rollers with cooling water inlet nozzles, for connecting user’s external coolant water. This feature effectively controls the temperature during the grinding process, ensuring the ingredients in the raw materials are not compromised
BulletPoint4 : Feeding Device: The feeding device, composed of copper end plate and end plate rack, is mounted on the both sides between feed roll and center roll. The copper end plate close to the surfaces of feed roll and center roll guarantees no material flowing out.The end plate rack is bolted on the miller body in order to adjust the distance and dismount to clean. The copper end plate should be often adjusted so as closely to contact the surface of roll
BulletPoint5 : Versatile Applications: The machine has become the main equipment of abrasive material. The machine is mainly used to grind various paint, ink, paint pigments, paints, food, cosmetics and other paste materials. But this machine is not suitable for grinding metal materials and materials with impurities
Color : Transparent
Department : Women
ExternallyAssignedProductIdentifier1 : 0198462642941
ExternallyAssignedProductIdentifier2 : 198462642941
FitType : Western
ImportDesignation : Made in the USA or Imported
IncludedComponents : 2 sets of plastic baffles
IncludedComponents1 : 1*bench grinder 1*Flexible Shaft
IncludedComponents2 : 1*Jade Saw Blade 1*Fiber Wheel
IncludedComponents3 : 1*Woodworking Saw Blade
IncludedComponents4 : 1*English Manual

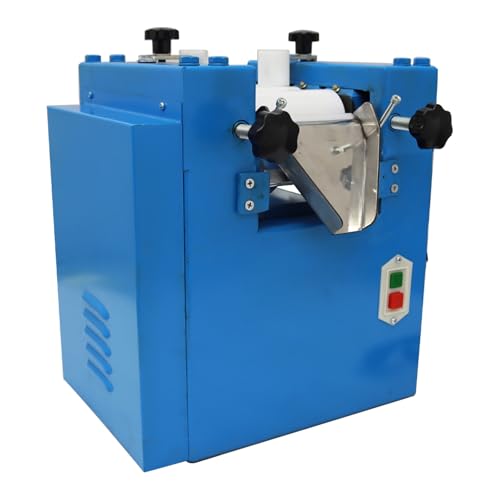

ItemName : WYDDDARY Lab Three Roll Grinder New Laboratory Three Roll Grinding Mill Grinder With Zirconia Ceramics Roll For Lab Paint Ink Paste Materials 110V 750W
ItemPackageDimensions_Height : 24 inches
ItemPackageDimensions_Length : 21 inches
ItemPackageDimensions_Width : 20 inches
ItemPackageQuantity : 1
ItemTypeKeyword : power-bench-grinders
Manufacturer : WYDDDARY
Material : Plastic
MaximumRotationalSpeed : 800 rpm
ModelName : CD134056
ModelNumber : CD134056
NumberOfBoxes : 1
NumberOfItems : 1
NumberOfLithiumMetalCells : 1
NumberOfPieces : 1
PartNumber : CD134056
PowerSourceType : Corded Electric
ProductDescription :

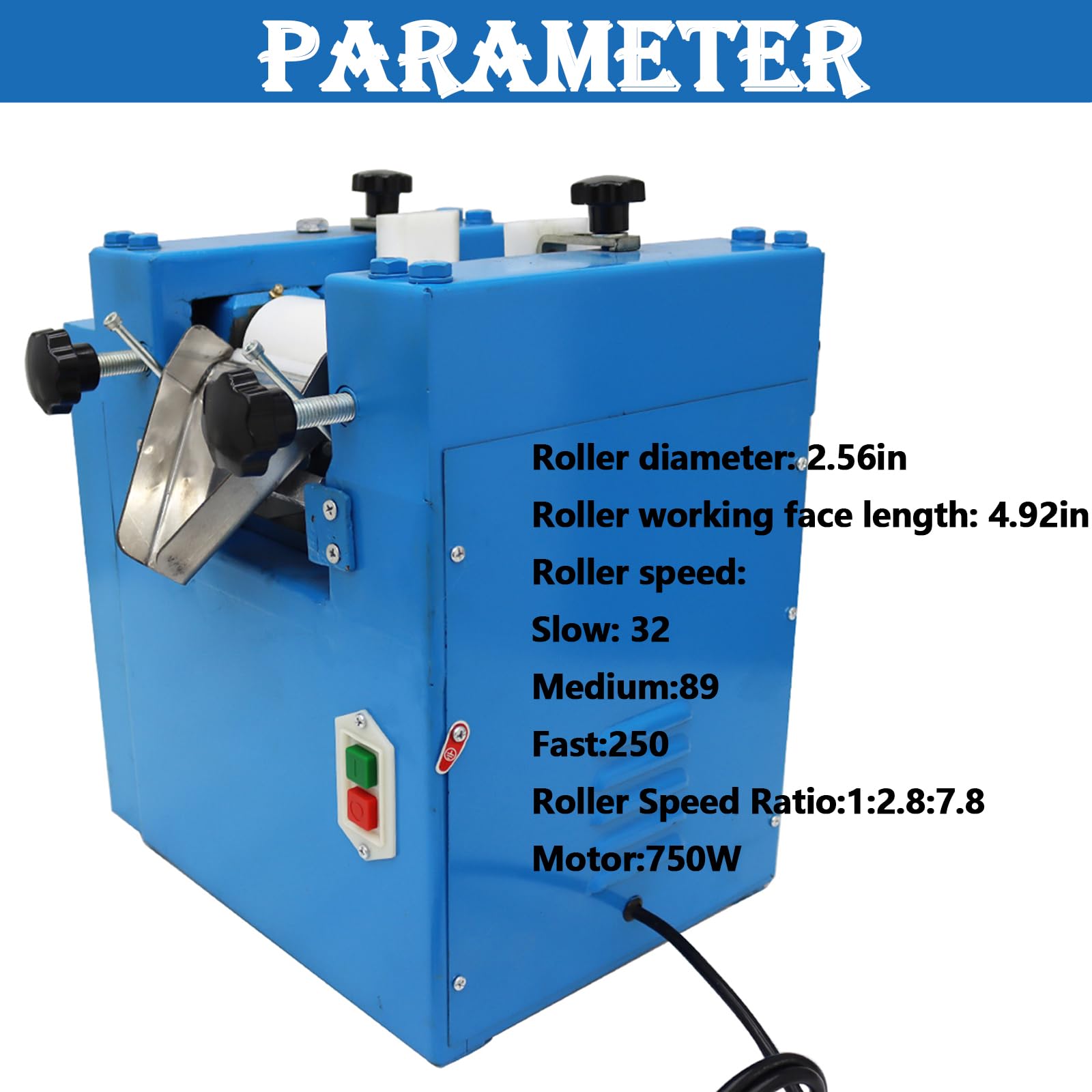

Parameter:

Roller diameter: 2.56in/65mm

Roller working face length: 4.92in/125mm

Roller speed: Slow: 32 Medium:89 Fast:250

Roller Speed Ratio:1:2.8:7.8

Motor: 750W

This machine is not suitable for metal material grinding！This machine is not suitable for grinding materials with impurities！

1.Note:

1.1 Before work:

Keep the roller surface clean, lubrication part has enough lube

1.2 At work:

(1) After start the machine, adjust fast, slow roll to a certain position (soap and lead ,the distance of fast, slow roll is 0.5 mm or so).According to your need to make a precise regulation after add materials. Generally ,the colorific deepness is consistent after the roller adjust well .If the middle colour is light but two ends colour are thick ,you can adjust the speed of the cooling water .

(2) Avoid grinding with corrosive materials.

(3)Charging copper knife can't press too hard.Add lubricant in the contact arc frequently.

(4) Pay attention to the bearing, it's temperature should not be higher than 45 ℃.

1.3 After work:

Loosen the roller, copper knife blade and discharge, then clean it .

2.Maintenance and repair

(1) Please inject lubricating oil on the roller left every 3~5 days .

(2) We have inject enough lubricating oil to the bearing house .Please inject lubricating oil half years later. (3) If long term storage ,please coated the rollers and other moving parts with preservative grease .

(4) Please stop use the machine if the rollers out of shape(both ends are low, and the middle is high), then repolished and adjust.

Item Included(134056):

New Laboratory Three Roll Grinding Mill Grinder For Lab Applications 110V

ProductSiteLaunchDate : 2024-09-06T09:15:16.003Z
Reusability : 1
Size : 1 Count (Pack of 1)
StrapType : Backless
Style : 1
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredHasProductIdentifierExemption : 1
TargetGender : female
UnitCount : 1
UnspscCode : 27112700
WarrantyDescription : No Warranty
