Brand : Generic
BulletPoint1 : Color: JDY-23
BulletPoint2 : Model number: JDY-23
BulletPoint3 : Origin: Mainland China
BulletPoint4 : Type: module
CompatibleDevices : Printer
DataLinkProtocol : Bluetooth
HardwareInterface1 : bluetooth_5
HardwareInterface2 : bluetooth
ItemName : Printer Accesstories JDY-23 Bluetooth 5.0 Module BLE5.0 Bluetooth Transparent Transmission Bluetooth Digital Transmission CC2541 - (Color: JDY-23)
ItemTypeKeyword : bluetooth-network-adapters
Manufacturer : Generic
NumberOfItems : 1
PartNumber : IGN-A4C1FD6B172EDBE1656C821B3B95AACF
ProductDescription : Product Introduction

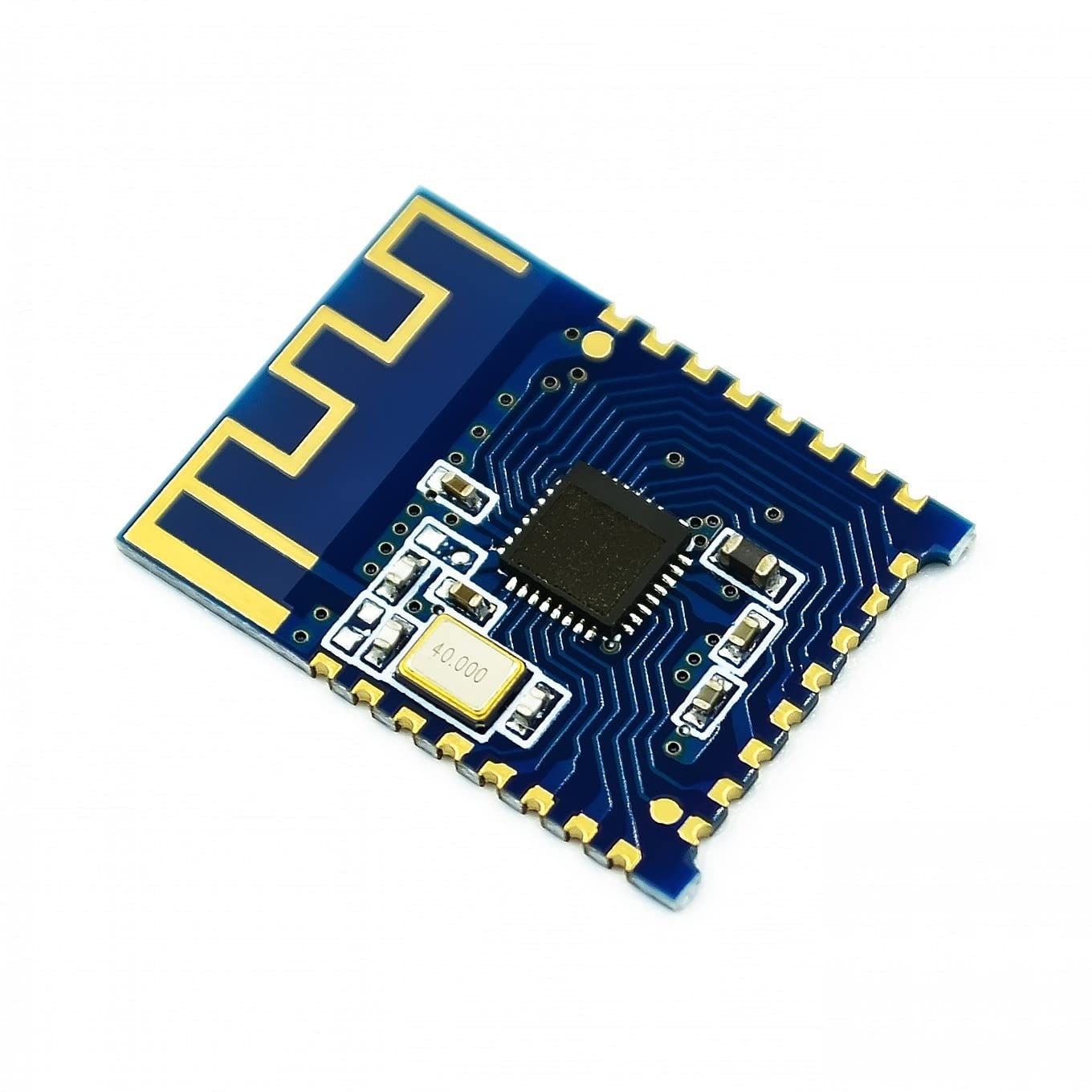

JDY-23 transparent transmission module is based on Bluetooth 5.0 protocol standard, working frequency range is 2.4GHZ range, modulation mode is GFSK, maximum transmission power is 4db, maximum transmission distance is 60 meters, adopts imported original chip design, supports users to modify equipment through AT command Instructions such as name and baud rate are convenient and quick to use.
The JDY-23 Bluetooth module can realize module and mobile phone data transmission. By default, BLE Bluetooth can be used for product application without configuration.
Make BLE faster and easier to use in products
Module Parameter Details
JDY-23 product parameters
model
JDY-23
Working frequency
2.4G
Transmit power
4db(maximum)
Communication Interface
UART
Operating Voltage
1.8V - 3.6V
Operating temperature
-40° - 80°
antenna
Built-in PCB antenna
Receiving sensitivity
-97dbm
Transmission distance
60 meter
Master-slave support
Slave
Module size
19.6 * 14.94 *1.8 mm(Length, width and height)
Bluetooth version
BLE 5.0(Compatible with BLE4.0, BLE4.2)
Awakening state current
800uA(Broadcast)
Light sleep state current
<50uA (Broadcast)
Deep sleep current
9uA (No broadcast)
Instruction parameter saving
Parameter configuration power-down data is saved
SMT soldering temperature
<260°
rf-TX/RX peak current
5mA
Item specifics:
Model number: JDY-23
Origin: Mainland China
Type: module
