Specification
Brand : UOHGDPY
BulletPoint1 : 1.★ Don't take up space —UOHGDPY's latest patented design, micro connector, small in size, only two-thirds the size of the same type of connector, doesn't take up space and has a good advantage in narrow wire connection space.
BulletPoint2 : 2.★Safty Shell— the Lever-Nuts are made of high quality German Bayer PC material with long life, corrosion resistance, aging resistance, high pressure resistance and insulation flame retardant advantages
BulletPoint3 : 3.★Practical and reusable — The lever nut kit can be used for motor, electrical control, power supply, home appliance, lighting, machinery and other wire connection parts. Every junction independent shrapnel, different wire managed separately, improving safety performance and product quality.
BulletPoint4 : 4.★ARBITRARY COMBINATION — Each wire connector is provided with 2 slots and 2 clasps on two sides, which can be flexibly assembled or disassembled into 2,3,4,6 bit (way) butt connectors as needed. Don't worry about buying mismatched terminal connectors
BulletPoint5 : 5.★Universal Compatibility— This Wire Connector is suitable for solid and flexible wire. Connect any combination of solid, stranded, and flexible copper wires. Suit for solid wire 0.08-4.0mm² /28-12 AWG, flexible wire 0.5-2.5mm² /20-14 AWG.
Color : White
ConnectorType : Butt Splice
ConnectorType1 : Spade
ConnectorType2 : Butt Splice
ConnectorType3 : Ring
CurrentRating : 32 amps
CustomerPackageType : Standard Packaging
ExternallyAssignedProductIdentifier1 : 6930148923784
ExternallyAssignedProductIdentifier2 : 06930148923784
ExternallyAssignedProductIdentifier3 : 00032076038731
GpsrSafetyAttestation : 1
IncludedComponents : Connector^(100) Piece Bag
ItemDisplayDimensions_Length : 1.24 inches
ItemName : UOHGDPY 36pcs Wire Connector, 1 Conductor Compact Splicing Connector for Circuit Inline 24-12 AWG
ItemPackageDimensions_Height : 9.4996 centimeters
ItemPackageDimensions_Length : 3.2004 centimeters
ItemPackageDimensions_Width : 6.9088 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : butt-terminals
Manufacturer : UOHGDPY
Material : Copper
Material1 : Brass
Material2 : Polyvinyl Chloride
MaximumVoltage : 600 volts
MeasurementSystem : English
ModelNumber : CC1614
MountingType : Rack Mount
NumberOfContacts : 216
NumberOfItems : 1
NumberOfPoles : 216
NumberOfPositions : 216
OperatingVoltage : 600 volts
PackageLevel : unit
PartNumber : CC1614
ProductDescription : Product Features:
Built-in test point.
No need for tools.
Plug and play quick connecting.
Maintenance-free connection.
Low installed cost and safe operation.
Different wire sizes and types can be combined in one connector.
Corrosion resistance, high-temperature resistance and aging resistance.
Reusable conductor compact wire connector.
Product Specification:

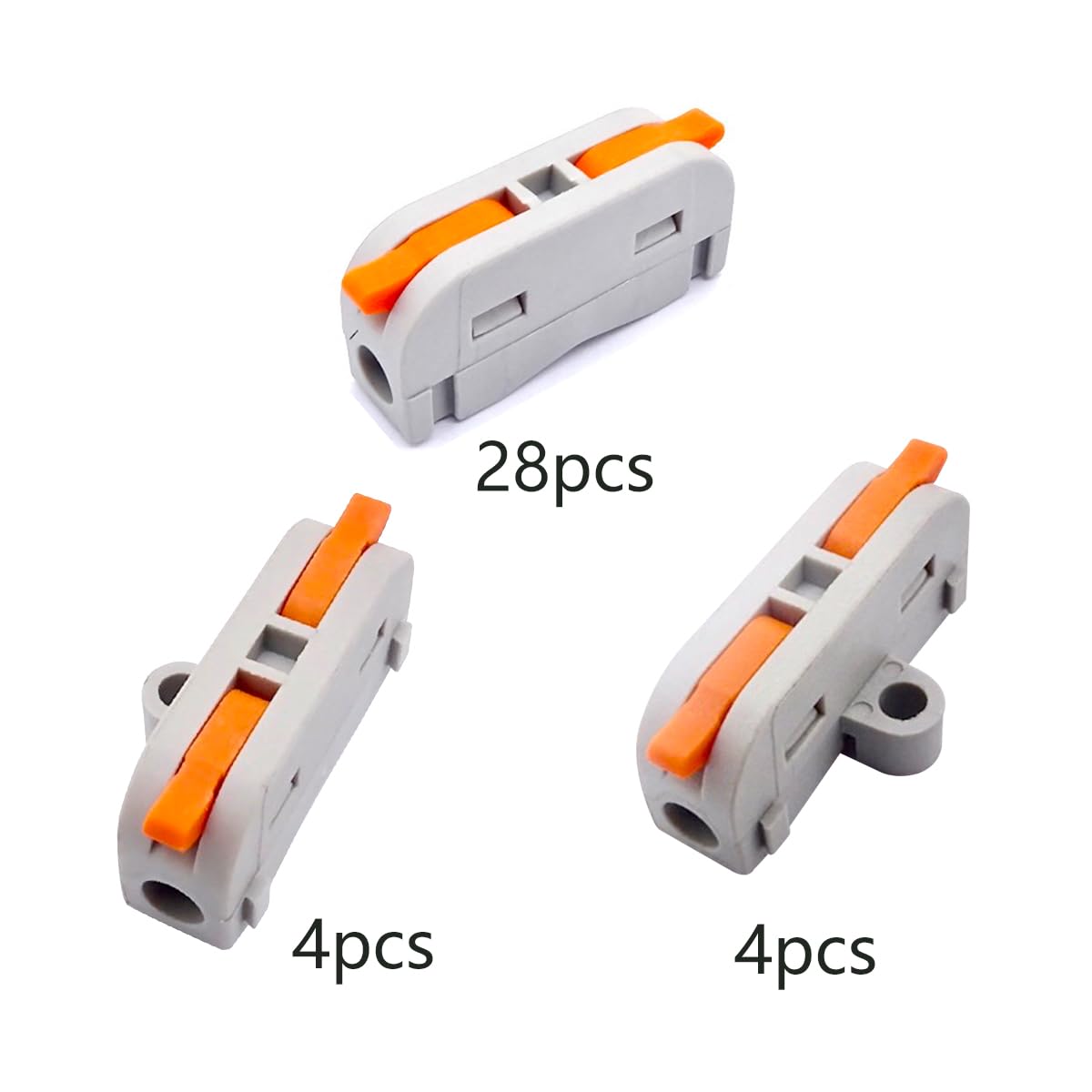

Including 4pcs left Lever-Nut,4pcs right Lever-Nut and 28pcs Lever-Nut for DIY splicing.Use thick 99.99% content copper, Special surface plating to prevent oxidation and with good conductivity, low resistivity
Wire Cross section: 0.2~4mm²/28~12AWG (solid), 0.2~4mm²/28 ~12AWG(stranded),0.2~2.5mm²/28~14AWG (flexible)
Rated Voltage: 250V
Rated Current: 32A
Max Operating Temperature: 95℃
Spring: Nickel Chromium Alloy Steel
Dimension: 31.5(L)* 8.0 (W)* 13.5(H)mm
How to Use?
1.Open the housing of wire to 0.39inch(10mm).
2.Push the orange lever to 90° and insert the wire lead.
3.Press the lever to close the clamp.
4.Check the test hole whether it is connected correctly.

ProductSiteLaunchDate : 2021-06-25T16:24:19.133Z
Size : 40 Pack
SpecificationMet : UL
SupplierDeclaredDgHzRegulation : not_applicable
TemperatureRange : 95 degrees_celsius
TemperatureRating : 221 degree celsius
TerminalType : Crimp Cap
UnitCount : 1
UnspscCode : 39121400
UpperTemperatureRating : 95 degrees_celsius
Voltage : 250 volts
