Specification
Brand : AF
BulletPoint : Check Valves
BulletPoint1 : A spring check valve (is designed to prevent the backflow of fluid by allowing it to flow in only one direction.
BulletPoint2 : Metal Seat type are suitable with high working temperature, pressure and harsh conditions.
BulletPoint3 : Made of stainless steel 316 / CF8M material that provides higher resistance against corrosion and rust.
BulletPoint4 : Maximum working pressure of 1000 PSI and temperature rating of -29°C to 150°C.
BulletPoint5 : Two NPT threaded ends.
Color : Female
ConnectorType : Adapter
Department : Unisex Adult
ExteriorFinish : Metal,Stainless Steel
ExternallyAssignedProductIdentifier : 8886481776311
IncludedComponents : Spring, Retainer & Holder Yellow
ItemDisplayDimensions_Length : 3.5 inches
ItemDisplayWeight : 0.98 pounds

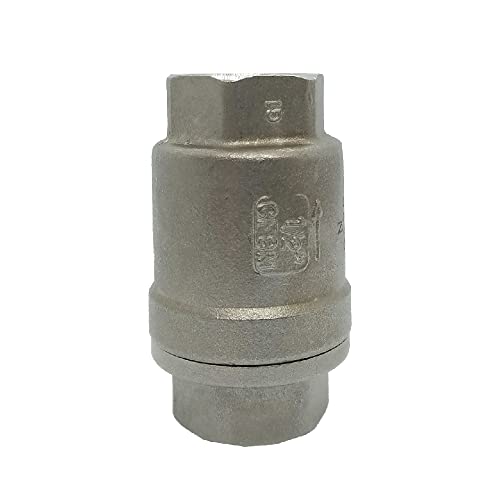

ItemName : AF Hydro Stainless Steel SS316 Low Pressure Spring Check Valve, 3/8" NPT, up to 1000 PSI, Cracking Pressure 1 Bar with Metal Seat, for General Water, Oil, and Gas
ItemPackageDimensions_Height : 1.4 inches
ItemPackageDimensions_Length : 2.2 inches
ItemPackageDimensions_Width : 1.4 inches
ItemPackageQuantity : 1
ItemTypeKeyword : industrial-check-valves
Manufacturer : AF
Material : Stainless Steel
MaximumOperatingPressure : 1000 pounds_per_square_inch
ModelName : HTNAFONI
ModelNumber : VL-C-S-VLC-N-06
NumberOfItems : 1
NumberOfPieces : 1
PackageLevel : unit
PartNumber : VL-C-S-VLC-N-06
ProductDescription : Spring Check Valve also known as a one-way valve or a non-return valve. It is commonly utilized in heating, ventilating, and air conditioning (HVAC) systems. The function of a spring check valve is to ensure that fluid moves in one direction by preventing backflow. It is also referred to as a non-return valve or a one-way valve. The valve operates when there is a difference in pressure, and fluid flows when the inlet side pressure is higher than the cracking pressure, which is the minimum upstream pressure needed to open the valve and allow fluid to pass through. The valve is equipped with a metal seat that can withstand high temperatures of up to 537°C (1,000°F) and pressure, making it an ideal choice for applications with high corrosion. It is important not to confuse spring check valves with swing check valves, as they operate differently. While both valves prevent backflow, a swing check valve operates with a disc, while a spring check valve operates with a spring. Fluid backflow movement closes a swing check valve, whereas spring check valves remain closed by default. The advantages of using spring check valves include protection against backflow damage and ease of use. They can be installed vertically or horizontally if the fluid movement is upwards, with vertical installation requiring mounting. The material used for constructing this spring check valve is stainless steel 316/CF8M, which offers superior protection against rust and corrosion. It has a maximum working pressure of 1000 PSI and two NPT threaded ends with Metal Seats. This valve is capable of functioning within a temperature range of -29°C to 150°C.
ProductSiteLaunchDate : 2023-05-09T07:05:13.750Z
Size : 3/8 Inch
SpecificationMet : ansi b16.34
Style : 1/4FNPT
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredHasProductIdentifierExemption : 1
UnitCount : 1
UnspscCode : 40141600
ValveType : check valve
