Specification
Brand : Hyuduo
BulletPoint1 : [APP CONTROL] - Achieve fast carving, webpage control, and mobile app control. Compatible with MKS DLC and other PC software.
BulletPoint2 : [BASIC PARAMETERS] - 32 bit STM32 processor, expandable WIFI module, power outage relay module, material outage detection switch, and external card slot.
BulletPoint3 : [FINE WORKMANSHIP] - Embedded with -core 32-bit high-speed MCU and powerful WIFI and modules. Equipped with 8MB flash storage chip for effective
BulletPoint4 : [GOOD ACCURACY WORK] - Engraver touch screen for coordinated and accurate printing s.
BulletPoint5 : [TMC2209 STEPPER MOTOR DRIVER] - Ultra quiet and designed to prevent overheating. for easy grip and control.
Color : Yellow

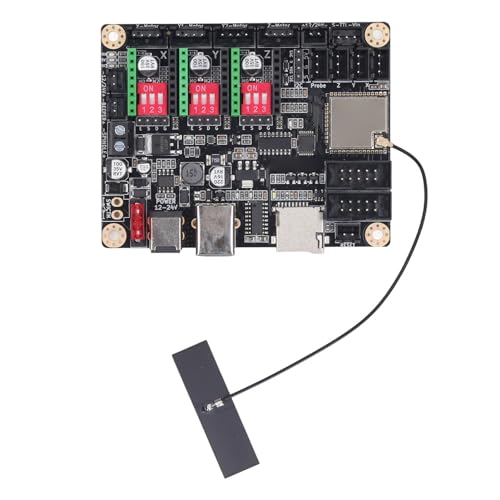

ItemName : DLC32 V2.1 32 Bit ESP32 GRBL TFT Engraver DIY Universal Main Board 32-bit Processor Module TMC2209 Stepper Motor App Control Work
ItemPackageDimensions_Height : 7 centimeters
ItemPackageDimensions_Length : 14 centimeters
ItemPackageDimensions_Width : 12 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : circboard-prototyping-boards
Manufacturer : Hyuduo
Material : Copper
ModelName : Hyuduo3o1yc9ksxz
ModelNumber : Hyuduo3o1yc9ksxz
NumberOfBoxes : 1
NumberOfItems : 1
PartNumber : Hyuduo3o1yc9ksxz
ProductDescription : Specification:
Item Type: Engraver Mainboard
Main Board Parameters
Mode: MKSDLC32
Material: PCB
Voltage: 12-24V DC ( less than 10A)

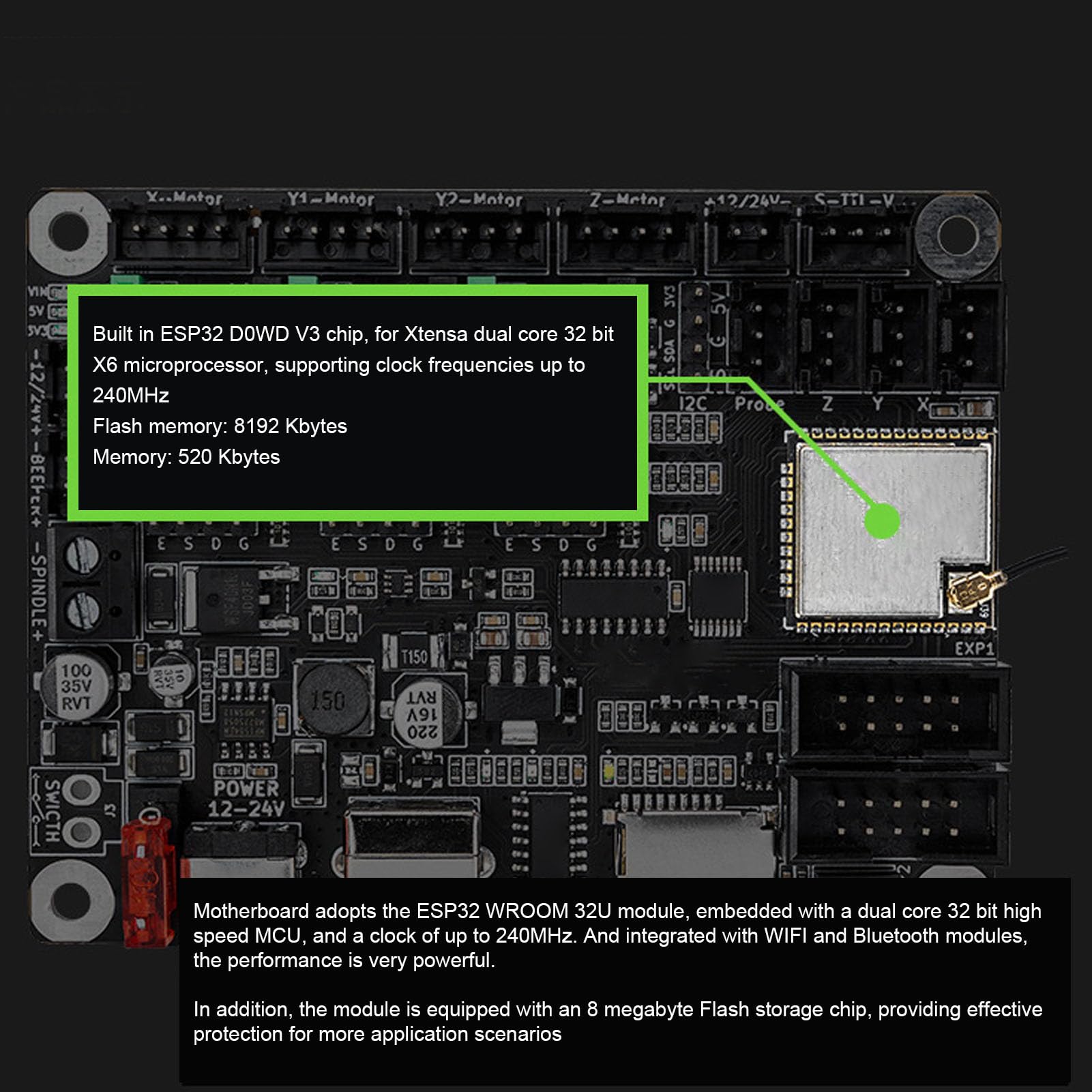

Single Chip Computer: ESP32 WROOM 32U (32 bit)
MCU Frequency: 240MHz
Flash Memory: 8192KBytes
Memory: 520KBytes
Speed: Less than 8000mm/min
Offline Display: TS24 R, TS35 R
Firmware: GRBL
Serial Driver: USB
Axes Onboard: 4 (X, Y1, Y2, Z)
Website: Support
APP: Support
Storage Card: Supported
Tool: Support
Available Machines: CNC engraving machine
Stepper Driver: A4988, DRV8825, TMC2208, 2209, 2225 (Nema17 motor)
Additional Driver: TB6600, TMC2160 (applicable to Nema23 motor)
: Below 20W (greater than 20W, external power supply)
Compatible Software: For Grbl, for Xloader, for GrblController, for benbox, for mDraw, for LightBurn
Main Board Introduction: The DLC32 main board is an offline engraving control board developed specifically for desktop engraving machines. The hardware is equipped with a 32 bit high speed ESP32 module, integrated with function, and directly drives a 2.4, 3.5 inch touch color screen; It can achieve functions such as fast carving and webpage control, as well as mobile app control. The installation holes and circuit board size of DLC32 are compatible with for DLC and can also be used with for GRB and for LightBurn PC software.
TMC2209 Driver Parameters
Maximum Output Current: 2.5A
Default Current: 1.25A
Micro Step: Up to 1/256
Configuration: STEP DIR or UART
Load Driving Voltage Range: 5.5-28V
IC Logic Working Voltage: 3.3V 5V

How to Use:
Introduce usage based on the selling point diagram.

PackageList:
1 x Main Board
1 x USB Cable
3 x Driver
3 x Heat Sink

ProductSiteLaunchDate : 2023-09-06T17:30:03.341Z
Size : 35 * 47 * 9.5mm
