Specification
Brand : MeterTo
BulletPoint : Price for 12 pcs

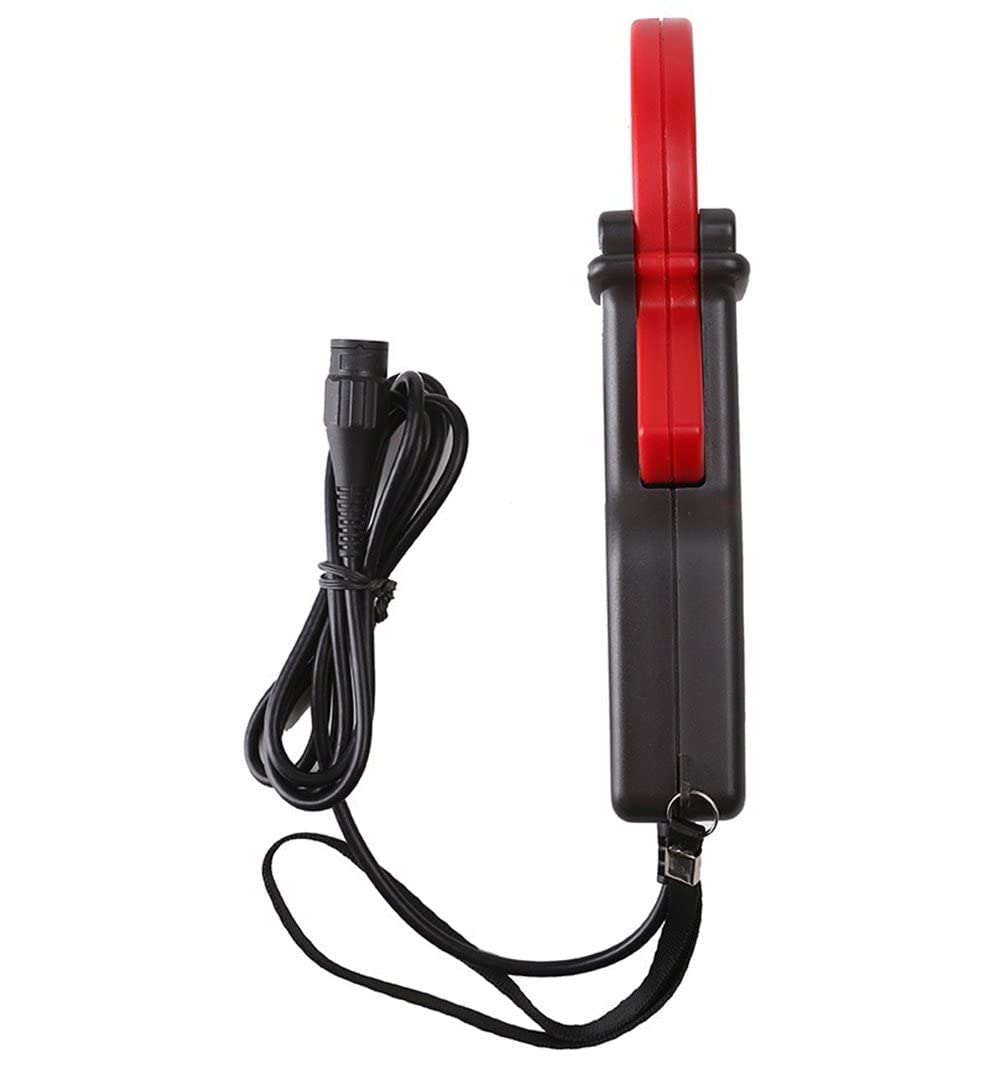

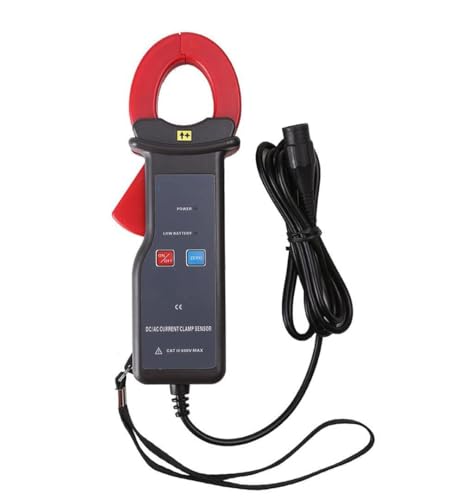

BulletPoint1 : ◆ ETCR035AD AC/DC clamp current sensor, suitable for AC/DC current detection with high accuracy below 600V, range: AC/DC 0.0A~1000A, corresponding output AC/DC 0~1000mV, jaw size 30mm x 35mm.
BulletPoint2 : ◆ Resolution: AC/DC: 0.1A; Accuracy: ±1.0%FS(50Hz/60Hz；23℃±2℃); Linearity: ≤1.0%; Phase error: ≤3°(50Hz/60Hz; 23°C±2°C); Power Consumption: ≤10mA; Voltage output: AC/DC: 1mV/A, that is, 0～1000A corresponding output 0～1V
BulletPoint3 : ◆ Detection method: Clamp CT, non-contact measurement; Output method: Voltage sensing output; Line voltage: below AC 600V circuit test;Frequency response: AC: 45Hz ~ 400Hz; DC: 10Hz ~ 10kHz
BulletPoint4 : ◆ The use of permalloy iron core, strong anti-interference ability, to ensure the accuracy and stability of the measurement.
BulletPoint5 : ◆ The sensor adopts the clamp CT structure and adopts the non-contact measurement method. The operation is safe and simple. It can be measured without disconnecting the measured circuit. The needle-nose jaw design is especially suitable for the location of the thick wire.
ExternallyAssignedProductIdentifier1 : 0680613894328
ExternallyAssignedProductIdentifier2 : 680613894328
ItemName : MeterTo Digital AC Current Clamp Meter Auto Range Ammeter Voltmeter Ohmmeter w/Capacitance & Frequency Tester, 6000 Counts
ItemPackageDimensions_Height : 20 centimeters
ItemPackageDimensions_Length : 35 centimeters
ItemPackageDimensions_Width : 10 centimeters
ItemPackageQuantity : 12
ItemTypeKeyword : clamp-meters
Manufacturer : MeterTo
Material : Other
MeasurementType : Multimeter
MeasurementType1 : Ammeter
MeasurementType2 : Ohmmeter
MeasurementType3 : Voltmeter
ModelNumber : VTSYIQI
NumberOfItems : 12
PartNumber : CNYST
PowerSourceType : Battery Powered
ProductDescription :

MeterTo

MeterTo mainly offers instruments and tools.

Please confirm the product is offered by our store MeterTo when purchasing, otherwise we can't ensure the quality and after-sale service.

Features:

Display: 6000 counts

Jaw Opening: Φ40mm/1.6"

Auto Ranging

Auto Power Off

Diode: 3.3V

Continuity Buzzer: <50Ω

Max/MIN

Data Hold

Low Battery Display

Display Backlight

Work Light

Specification:

DC Voltage: 600mV/6V/60V/600V +-(0.7%+2); 1000V +-(0.8%+2)

AC Voltage: 6V/60V/600V +-(0.8%+3); 750V +-(1.0%+4)

AC Current: 6A/60A/600A/1000A +-(2.0%+6)

Resistance: 600Ω/6kΩ/60kΩ/600kΩ +-(0.8%+3);6MΩ/60MΩ +-(1.2%+3)

Capacitance: 40nF/400nF/4µF/40µF/400µF/4000µF +-(4.0%+5)

Frequency:

A: 99.99Hz/999.9Hz +-(1.5%+5)   >1kHz Take it only as reference

V: 99.99Hz/999.9Hz/9.999kHz +-(1.5%+5) >10kHz Take it only as reference

Hz / DUTY: 9.999/99.99/999.9Hz/9.999/99.99/999.9kHz +-(0.3%+5); /9.999MHz

Duty Cycle: 0.1%~99% +-3.0%

ProductSiteLaunchDate : 2018-02-22T08:00:00.000Z
Style : Digital
UnspscCode : 41113600
