Specification
BatteriesIncluded : 1
BatteriesRequired : 1
Brand : Testboy
BulletPoint1 : Numerous advantages: the high-quality solar panel meter comes with automatic MPPT recognition, an OLED display and voltage supply from both the solar panel and the battery.
BulletPoint2 : Total protection: Solar panel accessories provide comprehensive multiple protection against overvoltage, over temperature, overcurrent and overpower.
BulletPoint3 : Practical accessory with OLED display: this solar panel multimeter can quickly and easily check the maximum power point and the zero load voltage, even in full sunlight.
BulletPoint4 : A well-thought-out accessory: the Testboy TV 510 with open-circuit voltage indicator is a precision instrument for testing solar panels and measuring power.
BulletPoint5 : Scope of delivery: TESTBOY TV 510 - tester for photovoltaic solar panels - power: 5 - 800 W - voltage: 12 - 60 V - current: 0 - 30 A - digital multimeter with batteries (3x1.5 V AAA), carrying bag and release tool MC4
Color : red/ black
ExternallyAssignedProductIdentifier : 4028532205102
Hazmat1 : un1993
IncludedComponents : 3 Battery 1.5 V AAA
ItemName : Testboy TV 510 Photovoltaic Panel Test Device, Solar Panel Multimeter (Checks Solar Panels, Measures Power, Quick and Easy to Use)
ItemPackageDimensions_Height : 29 centimeters
ItemPackageDimensions_Length : 7.8 centimeters
ItemPackageDimensions_Width : 12.6 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : clamp-meters
LowerTemperatureRating : -20 degrees_celsius
Manufacturer : Testboy GmbH
Material : acrylonitrile_butadiene_styrene
MeasurementAccuracy : +/-0.3%
ModelName : Clamp Meter/Multimeter
ModelNumber : 63101000
NumberOfItems : 1
NumberOfLithiumIonCells : 1
NumberOfLithiumMetalCells : 1
PackageLevel : unit
PartNumber : 63101000
Pattern : G-VICTOR 6056E
PowerSourceType : Battery Powered

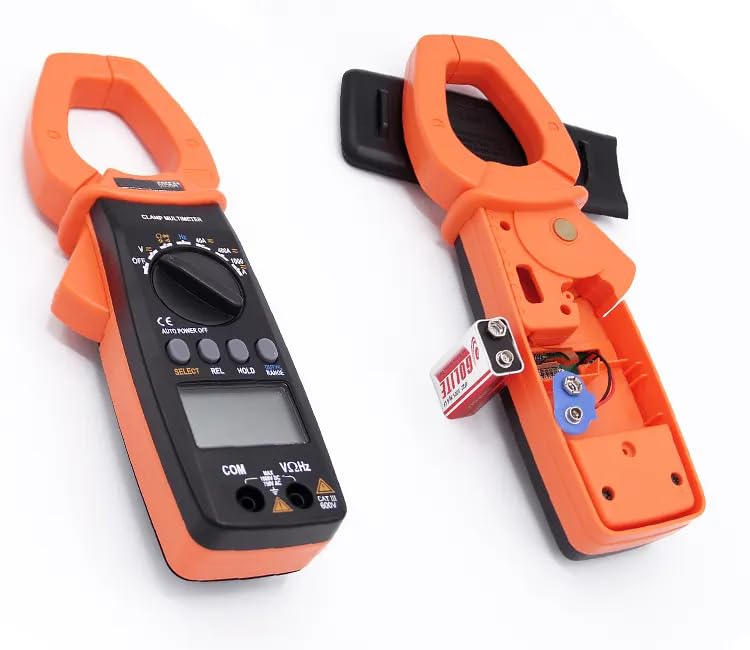

ProductDescription : VICTOR 6056E Handheld 3999 Counts Digital Clamp Meter 1000V/600A DC/AC 30MHz Frequency Capacitance Resistance
1. General
It is a handheld digital Clamp Meter with the measuring functions of ACA, ACV, DCV, Resistance, Frequency, Temperature and etc., it could be used in Lab, family and other circumstance, where high current measurement is required.
2. Safety Note
The instrument’s design meets the standard of IEC1010-1 (EN61010-1) pollution 2, CAT.600V and UL3111-1. Please read the following before operation.
3. General Property
3-1-1. Display: LCD display 3-1-2. Max Display: 3999 (3 3/4) digit automatic polarity Display.
3-1-3. Max Jaw Opening: 51mm 3-1-4. Over range Indication: “OL” Display.
3-1-5. Hold: Date Hold, Peak Value Hold 3-1-6. DCA Auto Zero Adjustment
3-1-7. Sampling Rate: 3tims/second 3-1-8. Low Battery Indication
3-1-9. Continuity Test: Buzzer sounds at less than (50±20) Ω. 3-1-10.Auto Range
3-1-11. Auto Power Off 3-1-12.Power Consumption: Approx. 3 mA
3-1-13. Power Supply: 1pc 9V battery (IEC6LF22, NEDA1604 or JIS006P)
3-1-14. Operation Environment: 0-40℃, Relative Humidity: <70% RH
3-1-15. Dimension: 260mm x 100mm x 50mm
3-1-16. Weight: Approx. 330g (including battery)
3-1-17. Accessory: Operation Manual, Gift Box, Test Leads, Temperature Probe TP01, 9V battery.
3-2 Technical Property
3-2-1. Technical Specification
3-2-1-1. Accuracy: ±(a% x reading + dgts) at (23±5) ℃, relative humidity <70%.
3-2-1-2. Temperature coefficient: 0.1 x specified accuracy/1℃ (<18℃ or >28℃)
ProductSiteLaunchDate : 2025-03-04T15:26:22.621Z
Size : 160x75x40
SpecificationMet1 : RoHS
SpecificationMet2 : EMC
SpecificationMet3 : ISO 9001
Style : Clamp Meter/Multimeter
SupplierDeclaredDgHzRegulation : not_applicable
UnitCount : 1
UnspscCode : 41113600
UpperTemperatureRating : 50 degrees_celsius
Wattage : 5 watts
