Specification
Brand : seeed studio
BulletPoint1 : No heat loss. Great backlight material. High efficiency (97%). Does not emit UV light. Soft light that is not harsh on the eyes. Waterproof, except the connecter.
BulletPoint2 : The higher voltage EL USB inverter is recommended because it produces a stronger light. Able to be cut into other shape. Dimension: 10 cm x 10 cm. Thickness: 0.4 mm- 1.0 mm. Operating Voltage: 100 V~ 220 V Optimum : 120 V.
BulletPoint3 : Operating Frequency: 50 Hz~ 5000 Hz Optimum: 1500 Hz- 2000 Hz. Static Capacitance: 6 nf/m (20 ¡ã C, the RH <80%). Brightness: 30 cd/m2 ~ 126 cd/m2 (at 120 V, 200 Hz ~ 2000 Hz). Power: 108 mw m ~ 1032 mw/m (at 120 V, 200 Hz ~ 2000 Hz).
BulletPoint4 : Life: approximately 8000 hours. Operating Temperature/Humidity:-10 ¡ãC ~ + 60 ¡ãC/RH < 90%. Storage Temperature/Humidity:-10 ¡ãC ~ + 60 ¡ãC/RH < 65%.
ExternallyAssignedProductIdentifier1 : 0752128114830
ExternallyAssignedProductIdentifier2 : 0752503160933
ExternallyAssignedProductIdentifier3 : 752503160933
ExternallyAssignedProductIdentifier4 : 752128114830
ItemName : SeeedStudio - EL Panel White - 10cm x 10cm Flexibility Portability - DIY Maker Open Source BOOOLE
ItemPackageQuantity : 1
ItemTypeKeyword : clock-integrated-circuits
Manufacturer : SeeedStudio
ManufacturerMinimumAge : 72
Material : paper
Material1 : Phosphor
Material2 : Laminate
Material3 : Copper

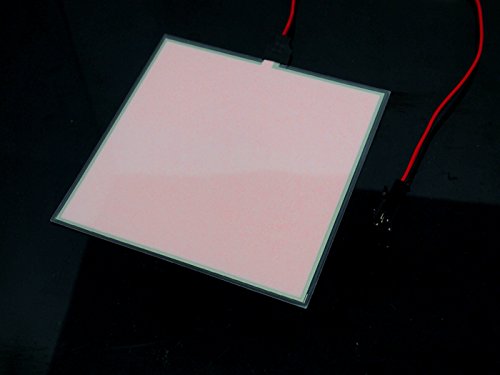

ProductDescription : A big sister to our?EL tape, the EL panel is a similar item that comes in a 10 cm square format. You¡¯ll notice when working with it that it shares some of the same features as the EL tape: flexibility, portability, and a beautiful soft glow. It can be used as backlight for an illuminated device, or a platform for paper-cutting artwork. Post it on a flat surface or wrap it around a curved surface. Use it in a project as a lighting element or attach it to a shirt. The options are amazing.

You need?an inverter?to drive the EL light, to?control it, please pick up an?EL Shield.

Features:

- No heat loss
- Great backlight material
- High efficiency (97%)
- Does not emit UV light
- Soft light that is not harsh on the eyes
- Waterproof, except the connecter
- The higher voltage EL USB inverter is recommended because it produces a stronger light
- Able to be cut into other shape

Specification:

- Dimension: 10 cm x 10 cm
- Thickness: 0.4 mm - 1.0 mm
- Operating Voltage: 100 V~ 220 V Optimum : 120 V
- Operating Frequency: 50 Hz~ 5000 Hz Optimum: 1500 Hz - 2000 Hz
- Static Capacitance: 6 nf/m (20 ¡ã C, the RH <80%)
- Brightness: 30 cd/m2 ~ 126 cd/m2 (at 120 V, 200 Hz ~ 2000 Hz)
- Power: 108 mw m ~ 1032 mw/m (at 120 V, 200 Hz ~ 2000 Hz)
- Life: approximately 8000 hours
- Operating Temperature/Humidity: -10 ¡ãC ~ + 60 ¡ãC/RH < 90%
- Storage Temperature/Humidity: -10 ¡ãC ~ + 60 ¡ãC/RH < 65%
