Specification
Brand : Gdrasuya10
BulletPoint : Compatible with all models, including Lattissima, Le Cube, Inissia, Citiz, U, etc
BulletPoint1 : High-quality Materials: The high-quality 201 stainless steel shell and 304 stainless steel nozzle are strong, sturdy, wear-resistant, and rust-resistant, greatly extending its service life.
BulletPoint2 : High Efficiency: Microcomputer control technology, a maximum flow rate of 169oz/min and high power of 500W enable it to fill 20-50 cans per minute, which improves working efficiency.
BulletPoint3 : High Accuracy: Each filling head with a check valve can control the switch in time to prevent liquid backflow. 0.24inch and 0.31inch anti-drip nozzles enable small bottles to be filled with ±1% accuracy to reduce waste.
BulletPoint4 : Peristaltic Pump: Peristaltic pumps have precise, fast and stable self-priming, and are separated from the motor to extend the life of the motor, eliminating the problems of mold in the pump, small particles clogging the pump, and difficult cleaning.
BulletPoint5 : Hygienic&Easy to Clean: The liquid only passes through the tube and is not contaminated by other substances. The tube can be removed for easy cleaning.
CareInstructions : Hand Wash Only
Color : Sliver
ContainsLiquidContents : 1
ExternallyAssignedProductIdentifier : 4262359480001
ExternallyAssignedProductIdentifier1 : 0723509033293
ExternallyAssignedProductIdentifier2 : 723509033293
FabricType : "5000ml 6 Heads Liquid Filling Machine
GpsrSafetyAttestation : 1
Hazmat : 9
IncludedComponents : Glass
IncludedComponents1 : milk tube hose
IncludedComponents2 : connector
IsDishwasherSafe : 1
IsExpirationDatedProduct : 1
ItemDisplayWeight : 25 pounds
ItemFirmnessDescription : Hard
ItemForm : Liquid
ItemName : 5000ml 6 Heads Liquid Filling Machine Electric Bottle Filler Digital Pump 100V
ItemPackageDimensions_Height : 0.62 inches
ItemPackageDimensions_Length : 5 inches
ItemPackageDimensions_Width : 3.5 inches
ItemPackageQuantity : 8
ItemShape : Rectangular
ItemTypeKeyword : coffee-machine-and-espresso-machine-cleaning-products
ItemVolume : 15.2 fluid_ounces
Manufacturer : Gdrasuya10
Material : "5000ml 6 Heads Liquid Filling Machine
Material1 : Plastic
Material2 : Copper
ModelName : milk tube hohe
ModelNumber : 54330-DEPCB-8
NumberOfBoxes : 1
NumberOfItems : 8
PackageLevel : unit
PartNumber : 54330-DEPCB-8
Pattern : "5000ml 6 Heads Liquid Filling Machine
ProductDescription :

Description

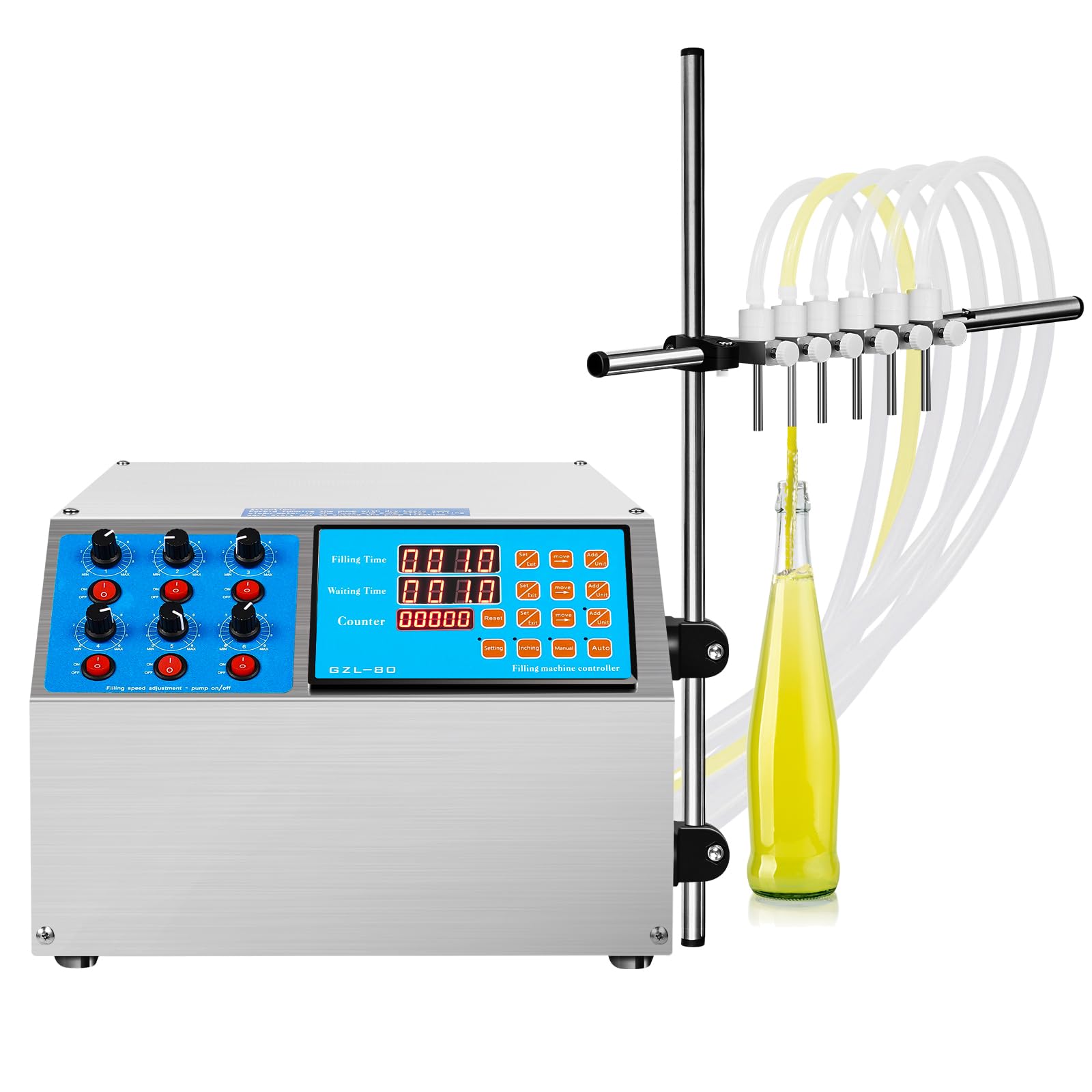

It is a 6-head liquid filling machine made of quality 201 and 304 stainless steel with high strength, precision, flow rate and efficiency. Its unique leak-proof design and powerful diaphragm pump can greatly improve the filling accuracy and save your time. Six independently controllable filling channels and the multifunctional operating panel make it an ideal assistant for conveying liquids!



Details

Practical Bracket: The height of the bracket is adjustable within the range of 0.39-11.8inch, making it adaptable to more heights of bottles, and can also be rotated 360 degrees to adapt to different venues.



Filter: The filter placed in the liquid to be filled effectively filters hard particles from the liquid, preventing blockage and ensuring excellent performance.



Multiple Heat Dissipation Holes: Multiple heat dissipation holes on both sides of the machine dissipate heat in time, which can ensure stable operation and extend its service life.



Silicone Tubes: The silicone tube is heat-resistant and non-deformable. The soft tube can adapt to various operating angles and movements for flexible and long-term use.



Footswitch: In the manual mode, step on it to complete each filling process for easy use.



Application

It is suitable for filling liquid with PH 5-9, little foam, no particles, and low viscosity, for example, mineral water, beverage, food, condiment, daily chemical liquid, etc. It is suitable for bottles with a height of 0.39-11.8inch and a mouth larger than 0.24inch or 0.31inch and is widely used in medical, chemical, food, beverage, oil, cosmetics and other fields.



Specification

Shell Material: 201 Stainless Steel

Tube Material: Silicone

Diaphragm Pump Material: PA, PPS

Nozzle Material: 304 Stainless Steel

Pump Type: Diaphragm Pump

Automation Degree: Semi-automatic

Color: Silver, Blue

Power: 500W

Display Type: LED

Plug Type: American Standard

Voltage: 110V 60HZ

Number of Heads: 6

Filling Volume: 0.3ml-5000ml/0.01-169oz

Filling Capacity: 20-50 Cans/min

Applicable Bottle Height: 10-300mm/0.39-11.8inch

Applicable Bottle Mouth Diameter: ＞6mm/0.24inch, ＞8mm/0.31inch

Maximum Suction Distance: 1.5m/4.9ft

Max. Flow Rate: 5L/min (169oz/min)

Filling Accuracy: ±1%

Liquid PH Range: 5-9

Liquid Temperature Range: 0-50℃

Power-off Memory Function: Yes

Anti-drip Function: Yes

Package Size: 46*40*30cm/18.11*15.7*11.8inch

Product Size: 31*31*21cm/12.2*12.2*8.3inch

Bracket Height: 50.5cm/20inch

Gross Weight: 12.55kg/27.7lbs

Net Weight: 10.25kg/22.6lbs



Package Included

1*Liquid Filling Machine

1*Power Cord

1*Filling Bracket Set

1*Footswitch

1*English Manual

All Accessories Needed for Installation



Notes

1. The diaphragm pump made of PA and PPS is not suitable for strong-corrosive and high-acidity items and essential oil containing concentrations higher than 40% alcohol.

2. The maximum filling speed is about 169oz/min. If you install filling nozzles and filters, it will be smaller (the maximum filling speed is about 2.4oz/s for reference, so we should set the filling speed to the maximum.

3. Please note that manual mode means that the machine will work only when you press the "manual" button once or step on the "foot pedal" once. If you don't press it, the machine will not work.

4. Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement. Please make sure you do not mind before you order.

ProductExpirationType : Expiration Date Required
ProductSiteLaunchDate : 2020-12-16T08:58:07.281Z
Scent : Unscented
Size : 6 heads
SpecificUsesForProduct : Coffee Maker
SpecificUsesForProduct1 : Kitchen
SpecificUsesForProduct2 : Spice Grinder
SpecificUsesForProduct3 : Pasta Machine
SpecificUsesForProduct4 : Food Processor
SupplierDeclaredDgHzRegulation : not_applicable
SurfaceRecommendation : Plastic
SurfaceRecommendation1 : Metal
SurfaceRecommendation2 : Plastic
Theme : number
UnitCount : 8
UnspscCode : 11160000
WeaveType : "5000ml 6 Heads Liquid Filling Machine
