Specification
AspectRatio : 1.27:1
Brand : FanyiTek
BulletPoint : FG080000DNCWA-T1
BulletPoint1 : 【24 inch 10 Point Multi-touch IPS Displaly】With a resolution of 1920x360 and a brightness of 300 nits, this screen offers a sharp and vivid color display. The IPS technology allows for a wide viewing angle, providing the user with an optimal viewing experience from any angle.Outline Size 612.7× 132.1×10.2 (H×V×D)mm,Display Area 579.888×112.104 (H×V)mm.
BulletPoint2 : 【LCD Controller Board】Video input: USB ,Audio: Speaker Support 8ohm 2W/ 4ohm 2W,This board support 180 degree rotation.
BulletPoint3 : 【10 Points Multi-Touch Sensor Panel】:With capacitive touch sensor panel ,no need enter driver ,directly plug the USB touch cable ,then the touch panel can work normally,this function provides responsive and intuitive user input.
BulletPoint4 : 【Extensive applications】: The high-quality specifications make it ideal for a range of applications. It can be used for gaming marquee, media consumption, video editing, graphic design, advertising ,supermarket sshelf ,and more. Additionally, its touch screen functionality makes it great for interactive presentations and kiosks.
BulletPoint5 : 【Plug and play】No software required. Connect cables as the link picture,then power on with 12V DC more than 3A power supply ,enter into the signal ,then the screen can work well .Pls make sure the screen and board are used in insulated environment .
ExternallyAssignedProductIdentifier1 : 0619438624964
ExternallyAssignedProductIdentifier2 : 619438624964
ImageAspectRatio : 16:9

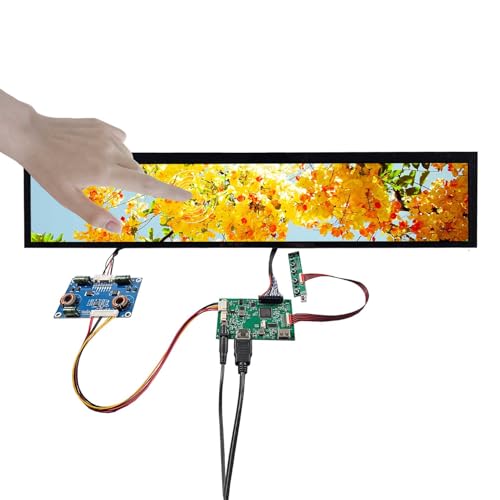

ItemName : FanyiTek 24 inch 1920x360 DV240FBM-NB0 IPS Capacitive Touch Strip Long LCD Screen with USB Controller Board,Support 180 Degree Rotation
ItemPackageQuantity : 1
ItemTypeKeyword : digital-signage-televisions-and-displays
Manufacturer : FanyiTek
MaxHorizontalResolution : 1080
MaxVerticalResolution : 1080
ModelNumber : FG080000DNCWA-T1
NumberOfItems : 1000
ProductDescription :

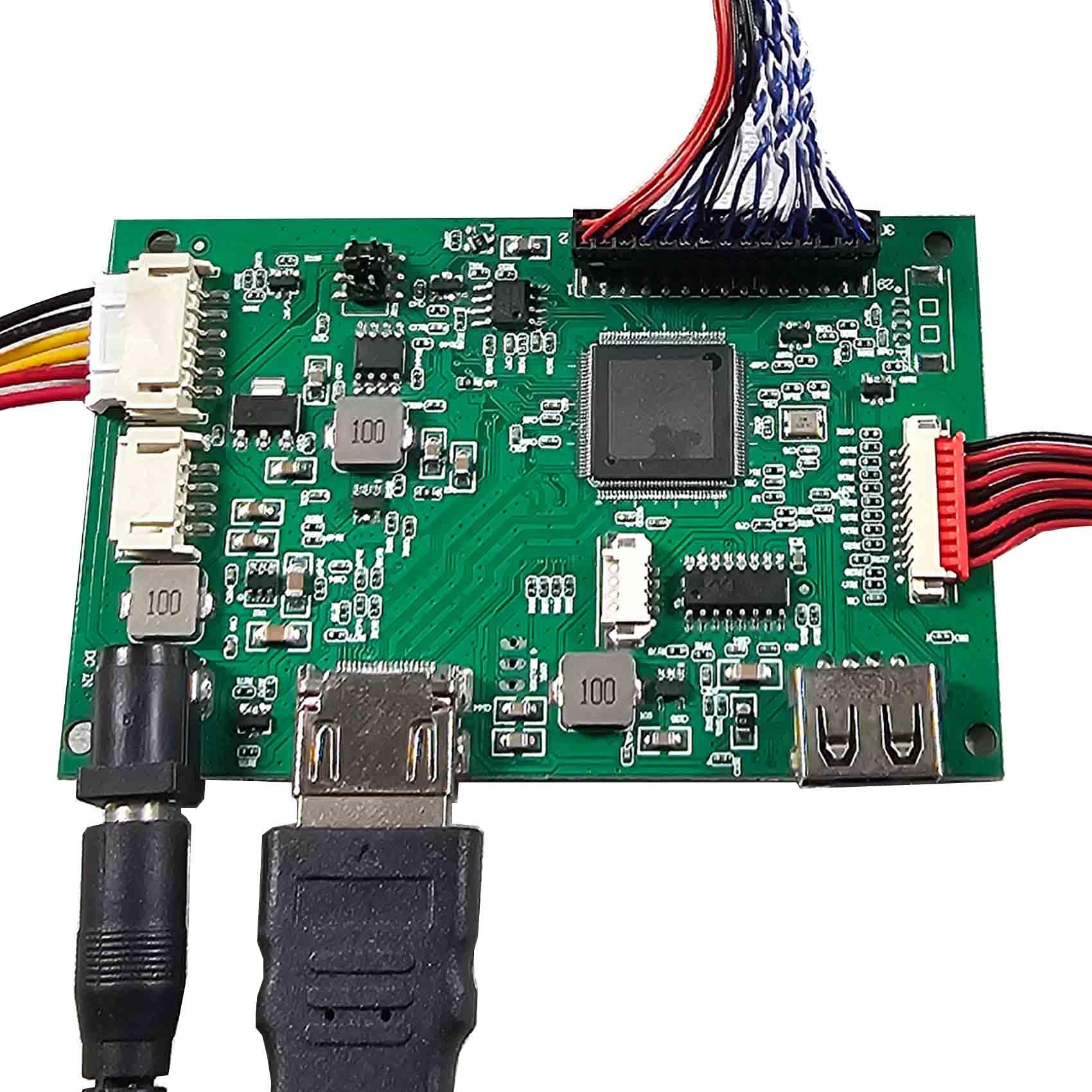

LCD Controller Board:

Input Power Adapter: 12Vdc More than 2A.

Come In Standby Model When Not Input Signal

Standby Model <1W

Video Input: USB



USB: Support Video Playback, Picture Playback, Text Playback

Image: Support Rotate 180degree

Audio: Speaker Support 8ohm 2W/ 4ohm 2W

OSD: Brightness Contrast Auto Language And So On

Language: English French German Spanish Italian And So On

Board Size: 90mm x 51mm x 14mm

24" DV240FBM-NB0 1920x360 Capacitive Touch LCD Screen:

Display Mode IPS, Normally Black, Transmissive

Resolution 1920(RGB)×360

Outline Size 612.7× 132.1×10.2 (H×V×D)mm

Display Area 579.888×121.104 (H×V)mm

Brightness 300 cd/m² (Typ.)

Contrast Ratio 1200:1 (Typ.) (TM)

Viewing Angle 89/89/89/89 (Typ.)(CR≥10) [Left / Right / Up / Down]

Signal Interface LVDS(1ch 6bit) Connector 40Pin

Backlight WLED

Input Voltage 3.3V (Typ.)

Packing list :

1× USB LCD Controller Board VS-TY2660H-V823

1× 24" DV240FBM-NB0 1920X360 Capacitive Touch LCD Screen

1× LVDS Cable

1× Keyboard With Cable

ProductSiteLaunchDate : 2024-11-28T08:11:36.841Z
RefreshRate : 60
Resolution : 2K DCI 1080p
ScreenSurfaceDescription : Glossy
Size : with USB Board
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredHasProductIdentifierExemption : 1
UnspscCode : 43211900
WarrantyDescription : Brand new one-year warranty
