Specification
BatteriesRequired : 1
Brand : CHANCS
BulletPoint : E-flite Motor, 3400Kv: UMX Turbo Timber, EFLUM6960
BulletPoint1 : Turbine-worm geared motors are compact and have a self-locking function. when the motor is not energized, the output shaft is fixed and self-locking. The motor can adjust the speed and rotation, the red wire connects to the positive pole, the black wire connects to the negative pole, when the wiring is reversed, the motor steering changes.
BulletPoint2 : Specifications: Voltage:DC 12V Reduction ratio:50 Maximum no-load speed:100RPM No-load current:0.2A Rated torque:2.5kg.cm Rated current:0.7A Rated input power:15W Ultimate load torque:13kg.cm Maximum load current:3A DC motor body dimensions:31 x 57mm (1.22" x 2.24") (D*L) Gearbox dimensions:58 x 40 x 27mm (2.28" x 1.57" x 1.06") (L*W*H) Output shaft dimensions:8*16mm (0.31" x 0.63") (D*L)
BulletPoint3 : The motor adopts metal gears inside, which increases the torque of the motor, is wear-resistant and corrosion-resistant, has good impact resistance, produces low noise, dissipates heat quickly, and has stable output.
BulletPoint4 : Pure copper coil rotor is made of high quality material, good conductivity, high temperature resistance, low power consumption, strong power, controllable temperature rise, stable speed and long service life.
BulletPoint5 : Applications: automatic mahjong machines, vending machines, medical equipment, ATMs, robots, parking locks, electronic locks, smart home, automation industry, automotive parts, office automation, curtain machines, etc.
Color : Yellow
ExternallyAssignedProductIdentifier : 8164027309224
ExternallyAssignedProductIdentifier1 : 605482496794
ExternallyAssignedProductIdentifier2 : 0605482496794
GpsrSafetyAttestation : 1
Horsepower : 3400 watts
IncludedComponents : Motor, 3400Kv: UMX Turbo Timber

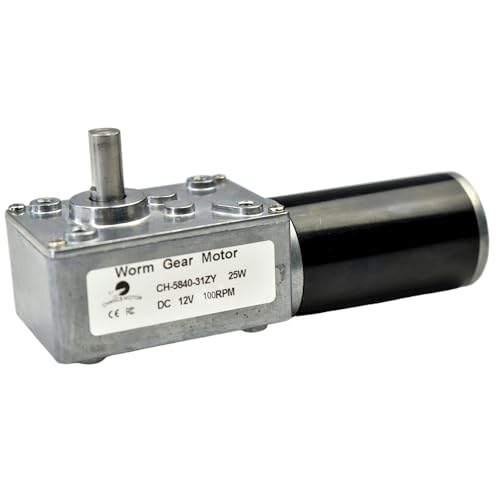

ItemName : CHANCS Metal Gearbox Motor Reversible Worm Gear Self-Locking Motor DC 12V 100RPM for Bank Equipment,Motorized Curtains
ItemPackageDimensions_Height : 17.4 centimeters
ItemPackageDimensions_Length : 1 centimeters
ItemPackageDimensions_Width : 10 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : hobby-rc-vehicle-motors
Manufacturer : CHANCS
Material : Brass
ModelName : gear
ModelNumber : EFLUM6960
NumberOfItems : 1
PackageLevel : unit
PartNumber : ZY31584012100-1
ProductDescription : Specifications:
Voltage:DC 12V
Reduction ratio:50
Maximum no-load speed:100RPM
No-load current:0.2A
Rated torque:2.5kg.cm
Rated current:0.7A
Rated input power:15W
Ultimate load torque:13kg.cm
Maximum load current:3A

Motor Size:
D Shaped Output Shaft Size: 8*16mm (0.31" x 0.63") (D*L)
Gearbox Size: 58 x 40 x 27mm (2.28" x 1.57" x 1.06") (L*W*H)
Motor Size: 31 x 57mm (1.22" x 2.24") (D*L)
Mounting Hole Size: M4 (not included)
Main Material: Metal, Electronic component

Packages:1 x Worm Gear Motor

Attention:
1.The motor must not be overloaded/blocked for use, otherwise it will burn the motor or gear set.
2.The torque of the geared motor is equally determined by the reduction ratio. The higher the reduction ratio, the higher the torque.

Applications: automatic mahjong machines, vending machines, medical equipment, ATMs, robots, parking locks, electronic locks, smart home, automation industry, automotive parts, office automation, curtain machines, etc.
ProductSiteLaunchDate : 2021-03-02T08:01:37.585Z
Size : 100RPM
Speed : 10000 rpm
StreetDate : 2022-09-24T00:00:01Z
Style : Sensorless 2845
SupplierDeclaredDgHzRegulation : not_applicable
UnspscCode : 26101200
Voltage : 12 volts
