Specification
Brand : Walfront
BulletPoint1 : Two-phase reduction gear motor with encoder
BulletPoint2 : Using precious metals carbon brush
BulletPoint3 : Long service life, low noise, large
BulletPoint4 : Stable and performance
BulletPoint5 : Can rotate and reversal, work more accurate
IncludedComponents1 : inc
IncludedComponents2 : inc
IncludedComponents3 : inc
IncludedComponents4 : inc
IncludedComponents5 : inc

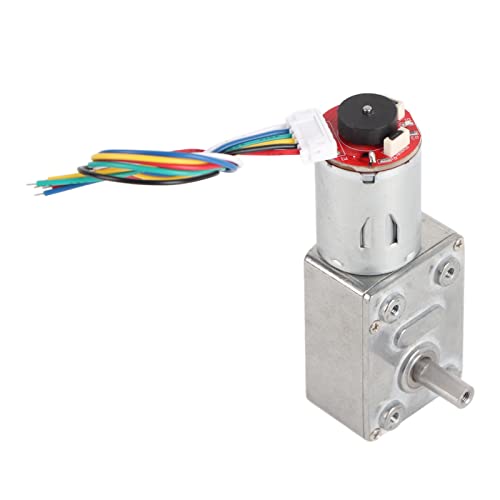

ItemName : DC 12V high Turbine Gear Motor, with Encoder Strong self-Locking 10/20/30/40 /100 RPM(40RPM)
ItemPackageDimensions_Height : 8.89 centimeters
ItemPackageDimensions_Length : 3.7084 centimeters
ItemPackageDimensions_Width : 5.207 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : hobby-rc-vehicle-motors
Manufacturer : Walfront
Material : Metal
ModelName : gear
PartNumber : Walfrontqmzs7kda9p-04
ProductDescription :

Description:

output shaft direction of the motor shaft is arranged vertically, the entire body of the motor output shaft relative to the general direction of gear motor short, widely adapted to a number of installation dimensions of the requirement occasion.

Features:

Two-phase reduction gear motor with encoder. Using precious metals carbon brush. Long service life, low noise, large . Stable and performance. Can rotate and reversal, work more accurate.

Specifications:
Rated Voltage: 12V
No-loading Revolving Speed: 100rpm / 40rpm / 30rpm / 20rpm / 10rpm(optional)

Speed(rpm) 10 20 30 40 100 Rated (kg.cm) 22.5 12 7.4 5.6 1.5 .(kg.cm) 25 25 25 24 6.4 Reduction Ratio 600 340 200 150 40 No-load Current(MA) ≤60 Rated Current(A) ≤0.6 Stall Current(A) 1.3

Weight: 165g(approx.)

Wiring Methods:
Red: Motor power + (exchange can control rotating and reversing)
Black: Coding power- negative (3.3-5V) polarity cannot be wrong
Yellow: feedback
Green: feedback
Blue:Coding power + positive(3.3-5V)polarity cannot be wrong

White:Motor power - (exchange can control rotating and reversing)
Note:

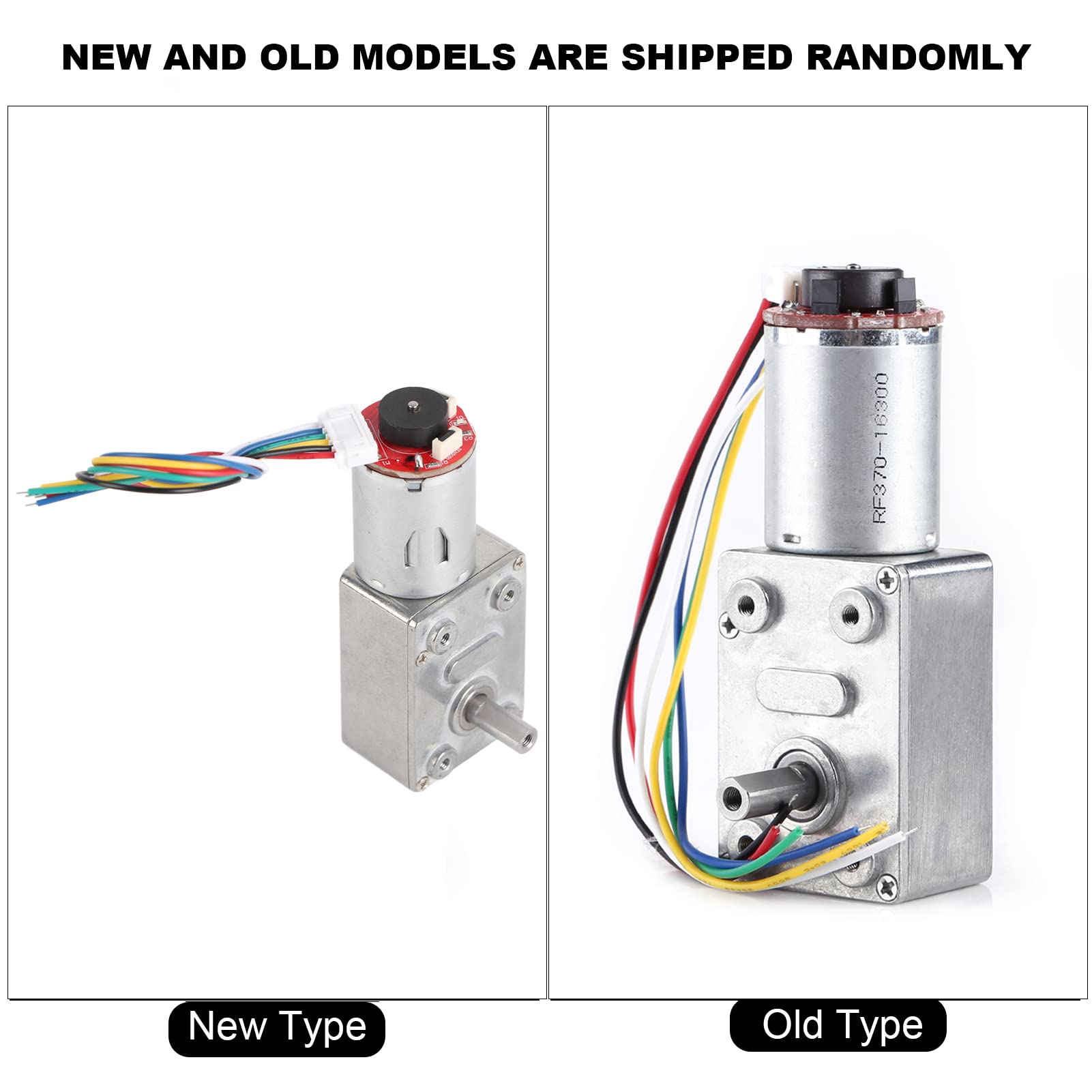

Please note that the new type and old type of this product will be sent randomly, and make sure you will not mind before ordering.
Package Includes:
1 x Motor

1 xWiring Harness

ProductSiteLaunchDate : 2020-09-22T13:37:54.258Z
Size : 40RPM
Speed : 100 rpm
SupplierDeclaredDgHzRegulation : not_applicable
UnspscCode : 26101200
Voltage : 1 volts
