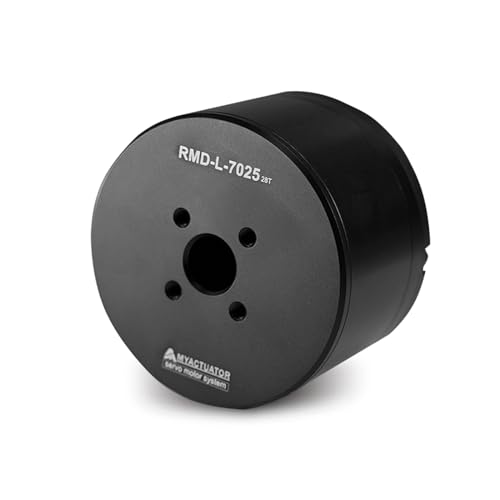

Myactuator RMD-L-7025-28T Micro Brushless DC Servo Motor Driver, BLDC Motor 200W 24V 1.6N.M for Vehicle PTZ, Cooperative Robot PTZ Motor, Quadruped Robot Dog, Drone

Customer rating 4.5 stars

Imported from USA | Ships in 10 working days

5% additional discount on UPI | Cash On Delivery available

1

₹75580 -39% ₹46100/-

The price at cart2india.com is inclusive of custom duties, GST, freight forwarding and other charges.

Free Shipping across India. Powered by BlueDart.
EMI and GST Invoice available.

Product Information


Specification
AgeRangeDescription : Baby
Brand : WOOKLEA
BulletPoint1 : 【INTEGRATED MOTOR DESIGN】 RMD-L-7025-28T is a highly integrated servo motor module, mechatronics design with built in motor drive and position sensor. (RMD: Reducer Motor Drive; L: Integrated Drive Actuator Series; 7025: Motor Type; 28T: 28 Turns)
BulletPoint2 : 【TECHNICAL PARAMETERS】Nominal voltage: 24V; Nominal torque: 1.6N.M; Max Instant Torque: 4.1N.M; Nominal Power: 200W; Nominal Speed: 280rpm. Adaptation driver type: DRC10. Environmental condition of working from -40 to 80 celsius. Motor Size: 6.9x4.6cmcm / 2.72x1.81inch; Motor Weight: 540g / 1.19pounds
BulletPoint3 : 【COMPATIBLE WITH HOST COMPUTER SOFTWARE】Easy to use program software to adjust parameters. Support MCU to send commands directly. Support RMD Assistant setting, simple and easy usin. Support temperature sensors, read the temp in real-time. Communication method: Can Bus
BulletPoint4 : 【HIGH CONTROL ACCURACY】High precision absolute value encoder. Encoder accuracy reach up to 0.005 degrees 18 bits. Maximum speed reach up to 25,000RPM time-lapse as low as 2us. Just one proofreading, zero points are never lost. Don't have to find zero point with power failure/cut
BulletPoint5 : 【MULTI-PROTECTION, MORE DURABLE】Micro servo motor with high performance bearings, reinforced aluminum alloy body. Flat structure, strong bearing capacity. High-performance Ndfeb permanent magnets, with arc designs, provide greater torque
BulletPoint6 : 【FIELDS OF APPLICATION】Apply for the filed which need precise control low speed and large torque, such as service robot, laser radar, gimbal, PTZ, Turntable, inspection robot and laboratory test equipment
Color : brown
Edition : 2Pcs CCW + 2Pcs CW
EducationalObjective1 : play
EducationalObjective2 : Game
ExternallyAssignedProductIdentifier : 7350227664060
ExternallyAssignedProductIdentifier1 : 768564489654
ExternallyAssignedProductIdentifier2 : 0768564489654
Horsepower : 200 watts
IncludedComponents : inc
ItemName : Myactuator RMD-L-7025-28T Micro Brushless DC Servo Motor Driver, BLDC Motor 200W 24V 1.6N.M for Vehicle PTZ, Cooperative Robot PTZ Motor, Quadruped Robot Dog, Drone
ItemPackageDimensions_Height : 2.76 inches
ItemPackageDimensions_Length : 3.94 inches
ItemPackageDimensions_Width : 3.94 inches
ItemPackageQuantity : 1
ItemTypeKeyword : hobby-rc-vehicle-motors
Manufacturer : MyActuator
ManufacturerMinimumAge : 168
Material : Aluminum
ModelName : NWYD-DJMD
ModelNumber : RMD-L-7025-28T
NumberOfItems : 1
NumberOfPlayers : 1
OperationMode : Manual
PartNumber : RMD-L-7025-28T
PowerSourceType : 12 Volt Battery
ProductDescription : RMD L Series: Integrated Drive Actuator


1. Mechatronics design with built in motor drive and position sensor
2. Large diameter with more pole pairs design, providing higher torque and smaller space application
3. Abundant product models, diameter range: 20mm-140mm; torque range: 0.02-5N.M
4. Support RMD Assistant setting, simple and easy usin
5. Wide voltage input range
6. Environmental condition of working from -40 to 80 celsius
7. Support Can Bus communication methods
8. Standard industry closed loop control mode(torque /speed/position)
9. Support motor speed upto 4000RPM
10. Multiple protection functions,like over temperature,over voltage and over current
11. Apply for the filed which need precise control low speed and large torque, such as service robot, laser radar, gimbal and Laboratory test equipment

ProductSiteLaunchDate : 2023-07-27T09:52:10.391Z
Size : Large
SkipOffer : 1
Speed : 4000 rpm
Style : RMD-L-7025-28T
SupplierDeclaredDgHzRegulation : not_applicable
TargetAudienceKeyword : unisex-children
TargetGender : unisex
Theme : Vehicle
UnitCount : 1
UnspscCode : 26101200
Voltage : 24 volts
