Specification
Brand : OMAX
BulletPoint1 : Total magnification for brightfield: 40X-80X-100X-200X-400X-800X-1000X-2000X; Total magnification for phase contrast: 100X-200X-400X-800X-1000X-2000X; Eyepieces: widefield WF10X/18 and WF20X; Brightfield objectives: achromatic DIN 4X, 10X, 40X (S), 100X (S, Oil); PLAN phase contrast objectives (in phase contrast kit): PH10X, PH20X, PH40X (S), PH100X (S, Oil); Viewing head: 45 degrees inclined 360 degrees swiveling digital binocular head
BulletPoint2 : Total magnification for brightfield: 40X-80X-100X-200X-400X-800X-1000X-2000X; Total magnification for phase contrast: 100X-200X-400X-800X-1000X-2000X; Eyepieces: widefield WF10X/18 and WF20X; Brightfield objectives: achromatic DIN 4X, 10X, 40X (S), 100X (S, Oil); PLAN phase contrast objectives (in phase contrast kit): PH10X, PH20X, PH40X (S), PH100X (S, Oil); Viewing head: 45 degrees inclined 360 degrees swiveling digital binocular head
BulletPoint3 : Total magnification for brightfield: 40X-80X-100X-200X-400X-800X-1000X-2000X; Total magnification for phase contrast: 100X-200X-400X-800X-1000X-2000X; Eyepieces: widefield WF10X/18 and WF20X; Brightfield objectives: achromatic DIN 4X, 10X, 40X (S), 100X (S, Oil); PLAN phase contrast objectives (in phase contrast kit): PH10X, PH20X, PH40X (S), PH100X (S, Oil); Viewing head: 45 degrees inclined 360 degrees swiveling digital binocular head
BulletPoint4 : Interpupillary distance: sliding adjustable 2-3/16inch ~ 2-15/16inch (55mm ~ 75mm); Diopter: adjustable on both eyepiece tubes; Nosepiece: revolving quadruple; Stage: mechanical stain-resistant double layer size 5-1/2inch x 5-1/2inch (140mm x 140mm), translation range: 3inch x 2inch (75mm x 50mm); Focus: coaxial coarse and fine focus knobs on both sides, rack and pinion adjustment, with tension control; Focusing knob can be locked for observation and transportation
BulletPoint5 : Condenser and diaphragm: Abbe NA1.25 rack and pinion adjustment condenser with iris aperture diaphragm; Phase contrast condenser disk with five switchable positions: one bright field NA1.25 w/ iris diaphragm Abbe condenser and four phase contrast filters, 10X, 20X, 40X, 100X, each can be centered individually; Black palm rest on the base; Illumination: transmitted (lower), replaceable 3W LED light, variable intensity; Metal framework; Power supply: AC 100V-240V (US and Canada plug)
BulletPoint6 : Built-in digital camera: - Imaging device: 3.0 mega pixels, 1/2.5inch CMOS - Effective pixels: 2048x1536 - Maximum still image resolution: 2048x1536 pixels - Frame rate: 4 frames per second at 2048x1536, 10 frames per second at 1024x768 - Interface: USB2.0 ( 480MB/second) - SNR: >40dB - Software compatible with Windows XP/Vista/7/8/10, and Mac OS
BulletPoint7 : 5-year warranty against manufacturing defects
ExternallyAssignedProductIdentifier1 : 670541471692
ExternallyAssignedProductIdentifier2 : 0670541471692
ExternallyAssignedProductIdentifier3 : 0670541504437
ExternallyAssignedProductIdentifier4 : 0670541471678
Hazmat : 9

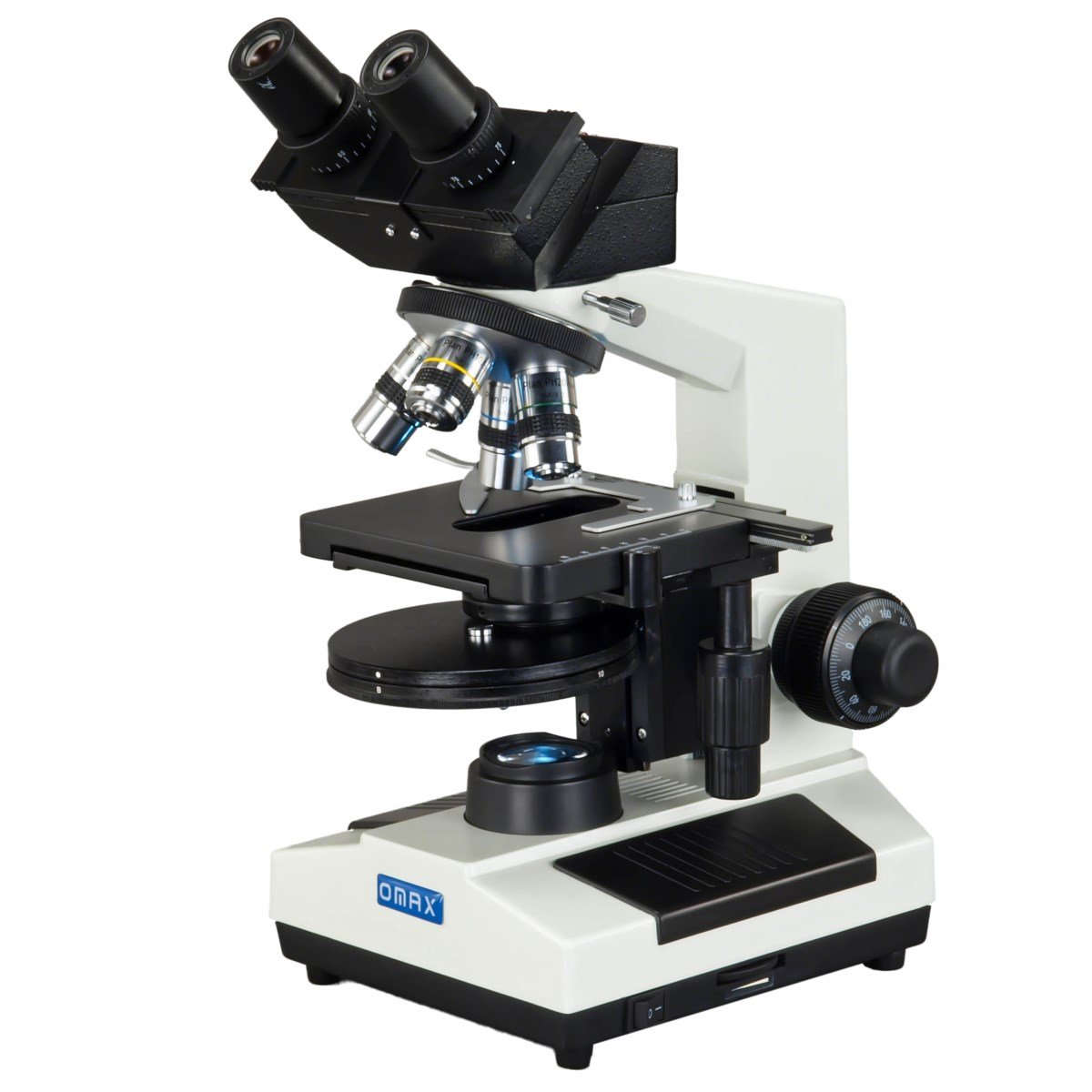

ItemName : OMAX 40X-2000X Phase Contrast Built-in 3.0MP Digital Camera Compound Microscope w Replaceable LED Light
ItemPackageDimensions_Height : 60 centimeters
ItemPackageDimensions_Length : 72 centimeters
ItemPackageDimensions_Width : 24 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : science-lab-compound-binocular-microscopes
MagnificationMaximum : 2000 multiplier_x
Manufacturer : OMAX
ModelNumber : MD827S30L-PHB1
NumberOfItems : 1
PartNumber : MD827S30L-PHB1
PowerSourceType : Corded Electric

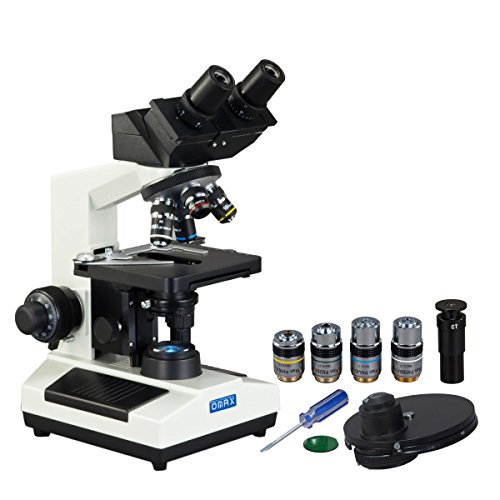

ProductDescription : The phase contrast digital compound LED microscope provides phase contrast microscope system and brightfield microscope system for viewing live cells depending on your applications. It comes with a built-in 3.0MP USB digital imaging system, a LED illumination with variable intensity, Abbe NA1.25 condenser with iris diaphragm and a complete set of phase contrast kit. It offers eight levels of brightfield magnification from 40X to 2000X. The phase contrast kit includes a phase contrast condenser, a centering telescopic eyepiece, four plan phase contrast objectives: PH10X, PH20X, PH40X (S), PH100X(S, Oil). It also offers magnification power: 100X-200X-400X-800X-1000X-2000X. The USB digital imaging system captures still microscope images and live video on computer without the hassle of setting up the digital camera. The included software compatible with Windows XP/Vista/7/8/10 can also be used to make measurements. You can also view and capture the images on iMac or Macbook with Mac OS. It's easy to replace the LED lamp by your own. This phase contrast compound microscopy is widely used clinical, biological research and schools, specially for observing live cells.
ProductSiteLaunchDate : 2013-09-26T17:48:55.958Z
RealAngleOfView : 45 degrees
UnspscCode : 41111700
Voltage : 240 volts
