Specification
Brand : KOPPACE
BulletPoint1 : Coarse and Fine Focusing Mechanism：Translucent and Reflective Frame,Front low-Hand Position Coarse and Fine Coaxial Focus Adjustment Mechanism.Coarse Adjustment Stroke 33mm,Fine Adjustment Accuracy 0.001mm.With Adjustment Elastic Device to Prevent Sliding and Random Upper limit Device
BulletPoint10 : This Product Has Upper and Lower Lighting System.
BulletPoint2 : Operating Platform：4-inch double-layer Mechanical Mobile Platform,Low-Hand Position X,Y Direction Coaxial Adjustment,Platform Area 230mm X 215mm,Transmission illumination Movement Range:105X105mm
BulletPoint3 : Upper Lighting System：Built-In 100-240V Wide Voltage System,12V100W Halogen lamp Transmitted Light illumination System,Independent Control of Upper and Lower Light;With Filter Slot and Polarizing Device Slot; With Bright and Dark Field Switching Mechanism,Preset Center,Light Intensity Continuously Adjustable
BulletPoint4 : Under Lighting System：Single High-Power 5W Warm Color LED White Light,Continuous Adjustable Light Intensity
BulletPoint5 : Condenser：Transmissive Shake-Out Achromatic Condenser (N.A0.9) With Variable Aperture Stop,Center Adjustable
BulletPoint6 : This Product Does not Contain a Display
BulletPoint7 : This Product is HDMI/Network Port Output, through the HDMI Cable Directly Connected to the Monitor,or the Network Cable Connected to the Computer For use,The Monitor and Computer can be Output at the Same Time
BulletPoint8 : The Product Has Two USB Ports,One For Connecting the Mouse and one For Connecting the USB Flash Drive.Measurements can be Made Directly on the Display Using the Mouse.Save Images and Excel Dat
BulletPoint9 : This Product Does Not Contain Interference Plates;If Necessary,Please Purchase it Separately

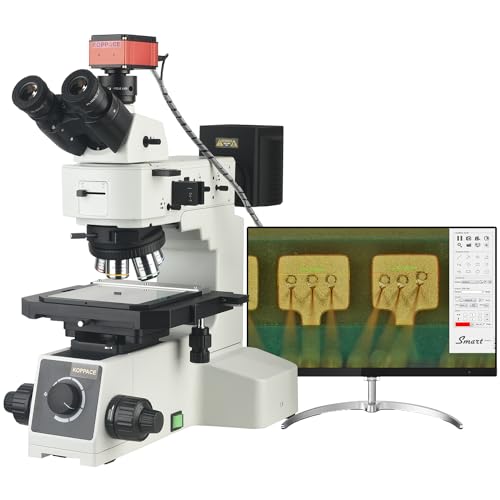

ItemName : KOPPACE 50X-500X Light and Dark Field Electron Metallographic Microscope Polarized DIC Observation 4K HD Measurement Camera
ItemPackageQuantity : 1
ItemTypeKeyword : science-lab-compound-trinocular-microscopes
MagnificationMaximum : 500 multiplier_x
Manufacturer : KOPPACE
Material : Metal
NumberOfItems : 1
PartNumber : KP-MX800
PowerSourceType : Corded Electric
ProductDescription :

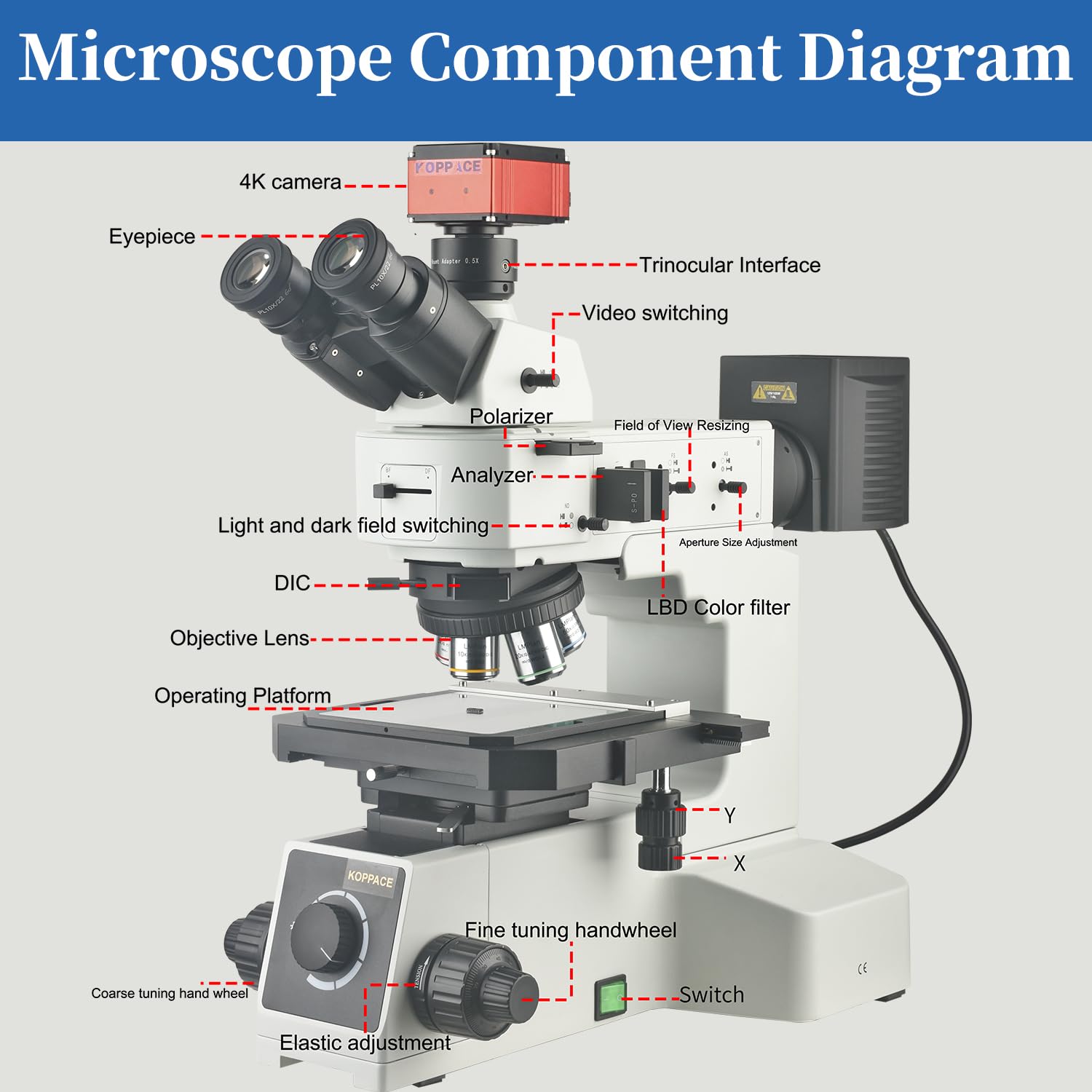

Model：KP-MX800
Optical Magnification：50X,100X,200X,500X
Electronic Amplification：192X-1926X
Optical System：Infinity Chromatic Aberration Correction Optical System
Eyepiece：High Eye Point large Field of View flat Field Eyepiece PL10X22mm
Objective Lens：LMPL-BD Infinite long Working Distance Bright and Dark Field Metallographic Objective
LMPlan 5X/0.15 BD WD 9mm
LMPlan 10X/0.3 BD DIC WD 9mm
LMPlan 20X/0.45 BD DIC WD 3.4mm
LMPlan FLN 50X/0.55 BD WD 7.5mm
Observation Tube：30° Tilt,,Hinged Trinocular Viewing Tube,Pupillary Distance Adjustment Range 50-75mm,Unilateral Diopter Adjustment:±5 Diopter.
Objective Lens Converter：Bright and Dark Field Five-Hole Converter With DIC Slot
Trinocular Interface：0.5X C-mount Interface,Adjustable Focus
Pixel：8.3 Million Pixels
Output Method：HDMI、GigE
Sensor：8.3M
Sensor Size：1/1.8＂CMOS
Pixel Size：2.0μmx2.0μm
Resolution Frame Rate：60@3840 X 2160,Photo Resolution 7680 X 4320

Packing list：
1、A Pair of Eyepieces PL10X/22mm
2、0.5X Trinocular Interface *1
3、Objective lens LMPlan 5X/0.15 BD WD 9mm *1
4、Objective lens LMPlan 10X/0.3 BD DIC WD 9mm *1
5、Objective lens LMPlan 20X/0.45 BD DIC WD3.4mm *1
6、Objective lens LMPlan FLN 50X/0.55 BD WD7.5mm *1
7、Microscope Body *1
8、Light Box Power Cord *1
9、Analyzer *1
10、Polarizer *1
11、4-inch Platform *1
12、LBD Color filter *1
13、4K Camera *1
14、HDMI Cable*1
15、Camera Power Adapter *1
16、Calibrating Ruler *1

ProductSiteLaunchDate : 2024-01-13T08:00:00.000Z
RealAngleOfView : 30 degrees
Style : Darkfield Microorganism Model with 100 Pcs Single Conc
SupplierDeclaredDgHzRegulation : not_applicable
UnspscCode : 41111700
WarrantyDescription : 1 year
